Flat screens with flat back

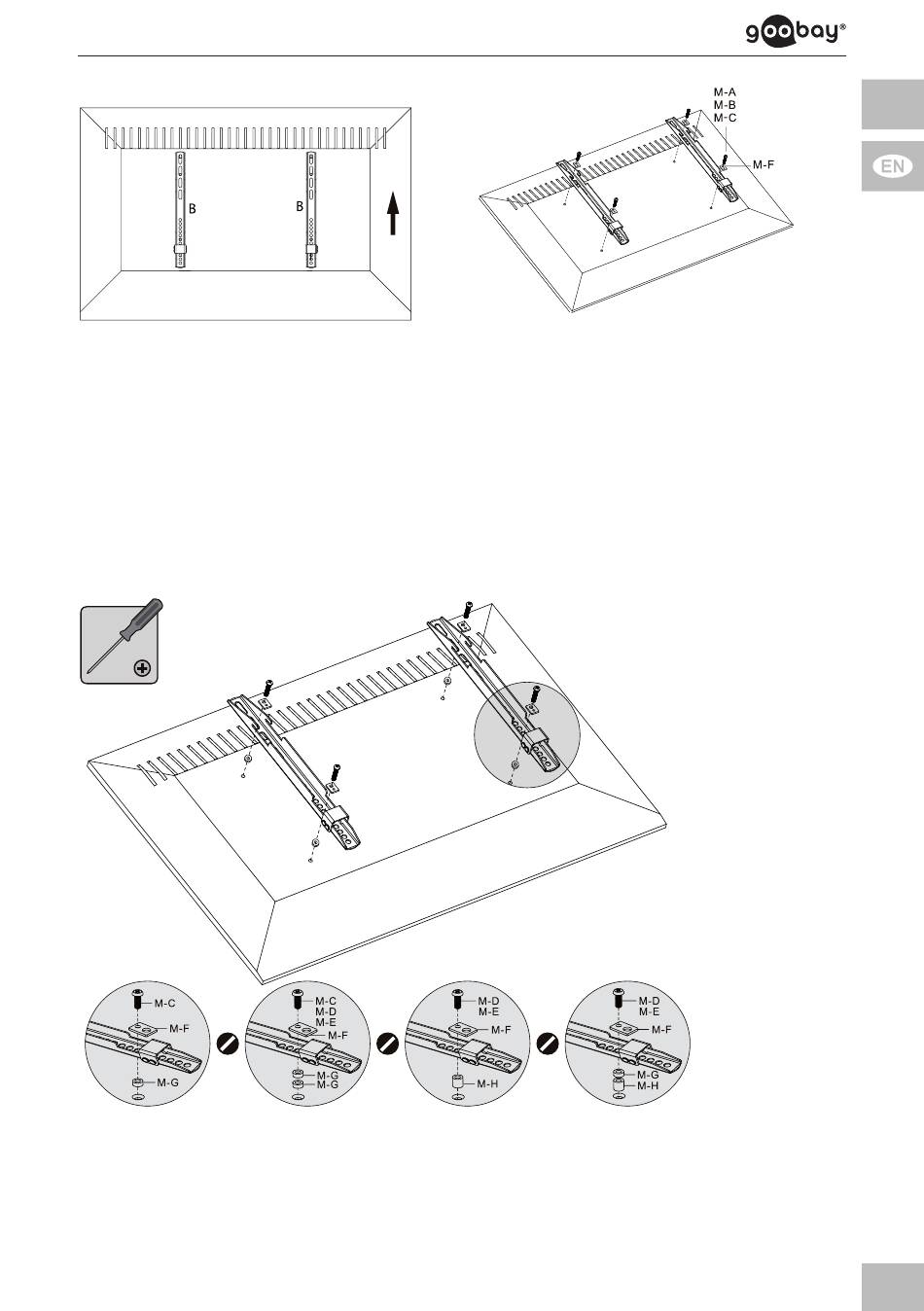

Fig. 6:
1. L ean the flat screen vertically on a soft, large surface or a wall and protect it
of scratches and overturning.
2. Install one adapter bracket (B) on each side with the washers (M-F) and the
fitting screws, matching to your flat screen on the top and bottom side as
shown.
Make sure that the slots are located on the flat screens top.

4.3.2 Flat screens with arched back

1. Apart from the following working step - proceed like shown in chapter 4.3.1.
2. Mount the fitting TV spacers (M-G) and/or ( M-H) between adapter bracket
(B) and flat screen like shown.
Fig. 7: Flat screens with arched back
21
