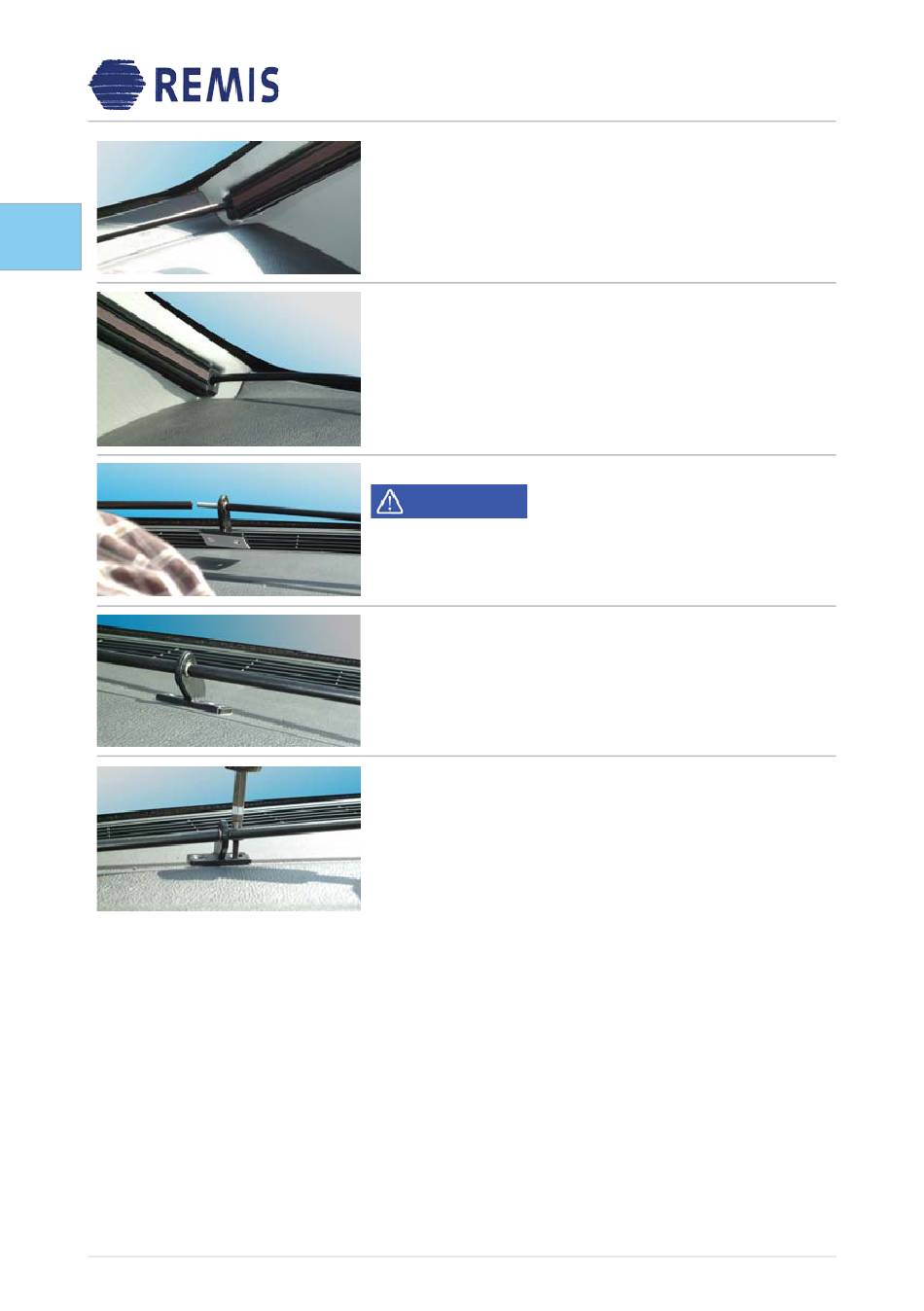

B47:
Insert guide tube at bottom right with its curved end into
handle at bottom and plug onto threaded bolt.
B48:
Insert guide tube at bottom left with its curved end into
handle at bottom and plug onto threaded bolt.
B49:
Plug guide tubes in centre onto the
NOTICE!!!
hexagon socket set screw of the bea-
ring tube. To do this, push guide tu-
bes forward a little. Ensure the correct positioning of the
bearing tube (see fi g. B50+B51).
B50:
Stick bearing tube at edge on the dashboard. Close plissé
to test it.
B51:
Screw on bearing tube with 2 screws Ø3.9x13mm (black).
