Steps

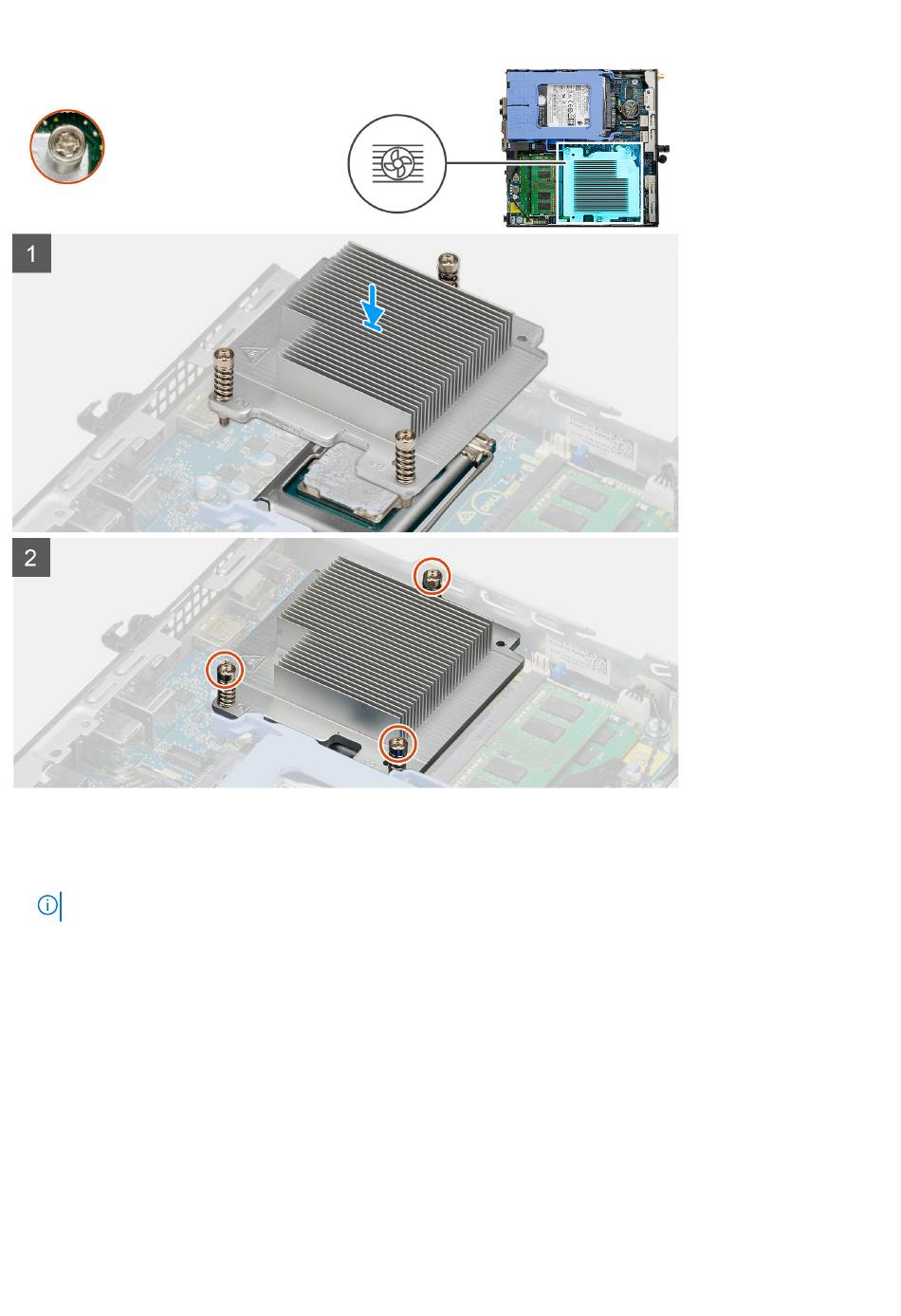

1. Align the screws of the heat sink with the holders on the system board and place the heat sink on the processor.
2. Tighten the captive screws that secure the heat sink to the system board.
NOTE:
Tighten the screws in a sequential order (1,2,3) as printed on the heat sink.
Next steps
1. Install the
fan
assembly.
2. Install the
front
bezel.
3. Install the
side
cover.
4. Follow the procedure in
after working inside your
computer.
Démontage et remontage
39
