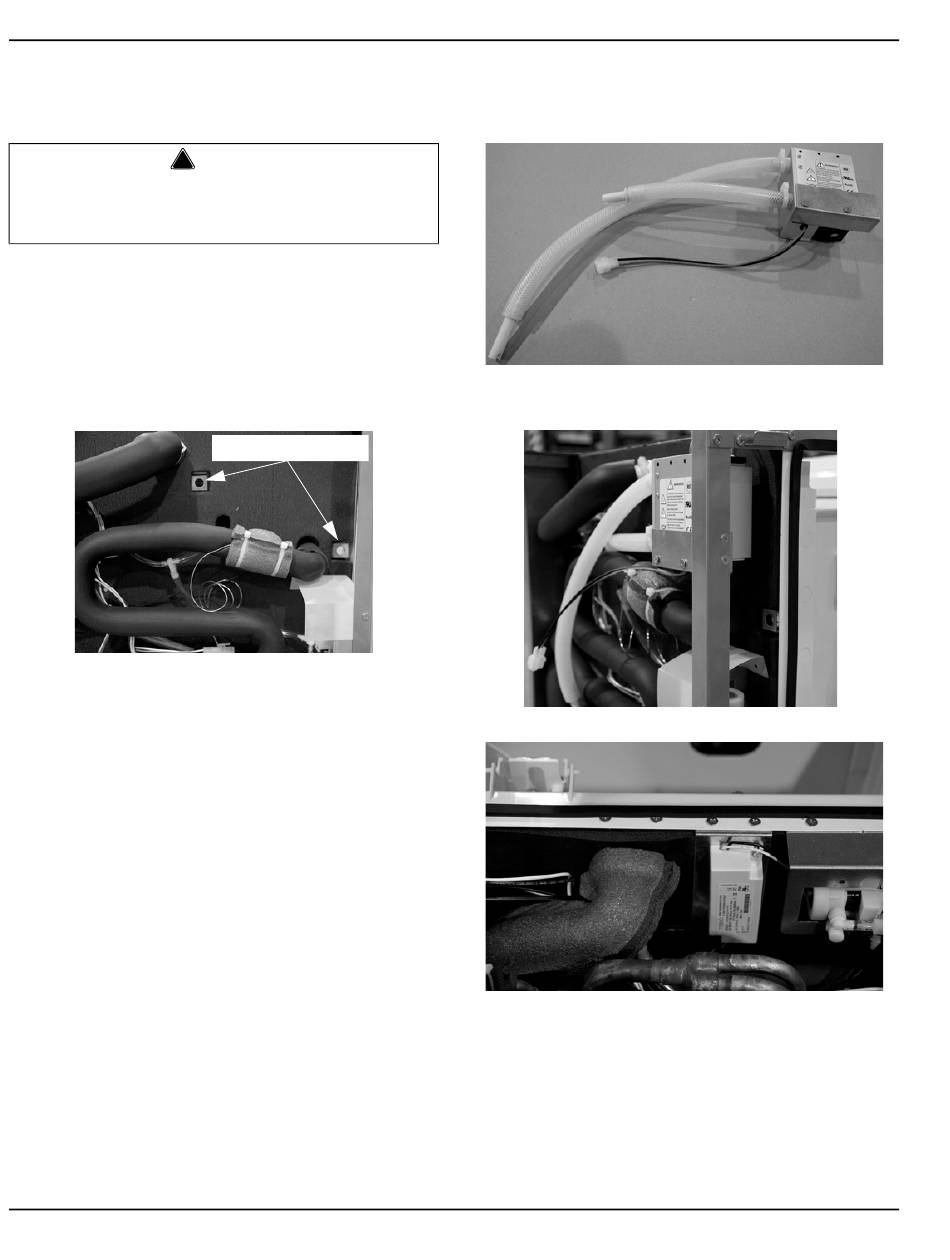

Installation Instructions
LuminIce™ Installation Two Evaporator Ice
Machines
!
Disconnect power to ice machine at the electrical
disconnect. Pressing the power button does not
disconnect line voltage.
1. Disconnect all power to the ice machine at the
electrical disconnect.
2. To allow access for LuminIce™ tubing, the plastic
caps in the evaporator compartment bulkhead wall
must be removed and discarded. Cap located
behind evaporator will fall into the water trough.
Remove water trough to retrieve cap, then discard.
3. Cut hose to length.
•
Cut one hose 8" (20 cm) long.
•
Cut one hose 18" (46 cm) long.
4. Assemble LuminIce™.
•
Assemble LuminIce™ to bracket.
•
Install tubing and secure with hose clamps.
•
Insert a tubing adapter into each hose.
10
Warning
Remove Plastic Caps From
Evaporator Bulkhead
NOTE: The bulb and bulb wiring must face toward the
top of the ice machine to allow bulb replacement with
LuminIce™ in place.
5. Attach Luminice™ assembly to corner post with two
screws.
6. Mount transformer to evaporator bulkhead.
Section 2
Part Number 000008463 10/11
