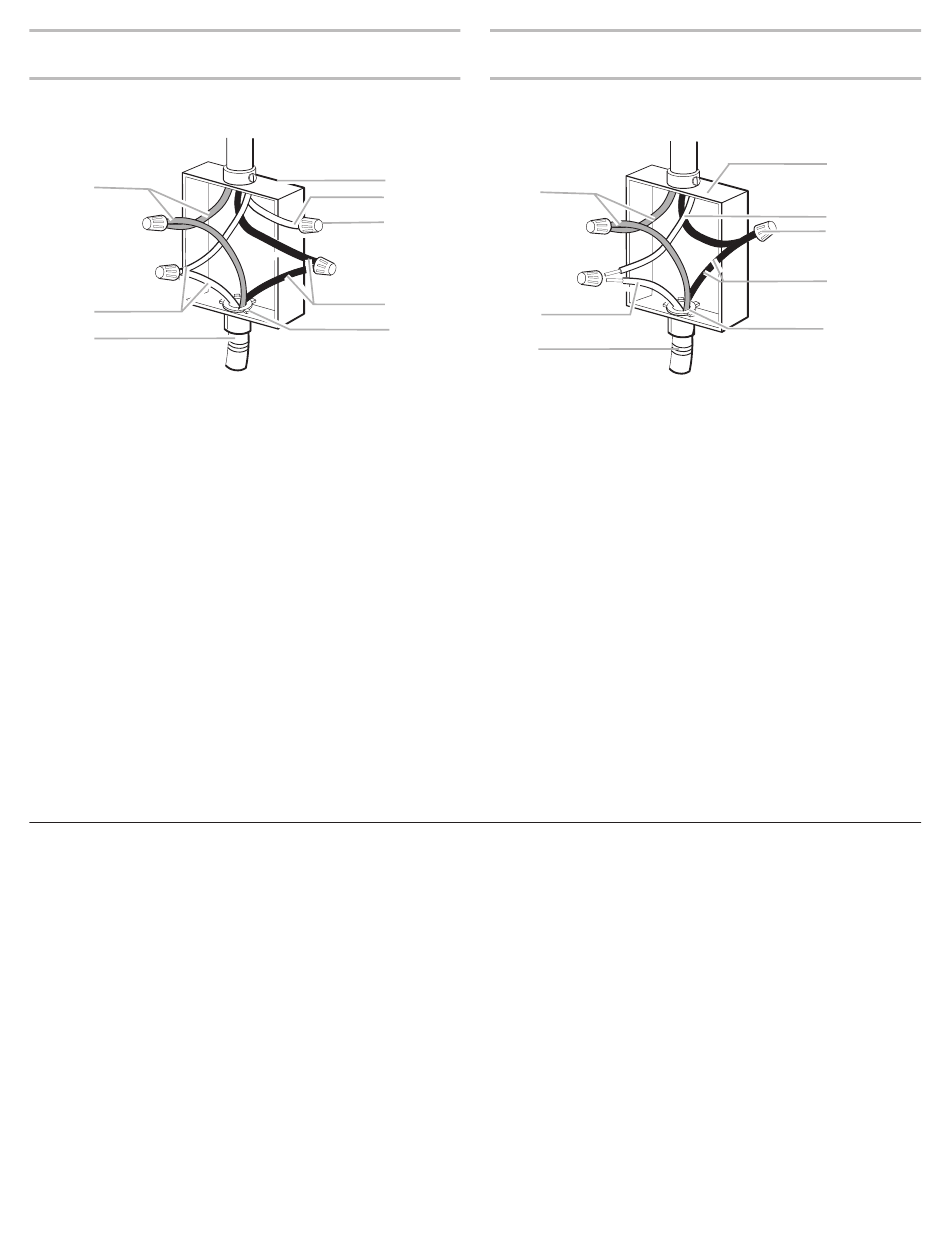

4-Wire Cable from Power Supply to 3-Wire Cable
from Cooktop
IMPORTANT: Use the 4-wire cable from power supply where
local codes do not permit connecting the frame-ground
conductor to the neutral (white) junction box wire:
A
B
C
A. Red wires
B. Green or bare ground wire
(from cooktop)
C. 3-Wire cable from cooktop
D. Junction box
1. Disconnect power
2. Remove junction box cover if present.
3. Connect the flexible cable conduit from the cooktop to the
junction box using a UL listed or CSA approved conduit
connector.
4. Tighten screws on conduit connector, if present.
5. Connect the two black wires together using the UL listed
wire nuts.
6. Connect the two red wires together using the UL listed wire
nuts.
7. Connect the green or bare ground wire from the cooktop
cable to the green or bare ground wire (in the junction box)
using the UL listed wire nuts.
8. Put a UL listed wire nut on the end of the white wire.
NOTE: Do not connect the bare ground wire to the neutral
(white) wire in the junction box.
9. Install junction box cover.
10. Reconnect power.
1. Check that all parts are now installed. If there is an extra
part, go back through the steps to see which step was
skipped.
2. Dispose of/recycle all packaging materials.
3. Use a mild solution of liquid household cleaner and warm
water to remove waxy residue caused by protective
shipping material. Dry thoroughly with a soft cloth. For more
information, see the "Cooktop Care" section of the Use and
Care Guide.
D
E
F
G
H
E. White wire (from power
supply)
F.
UL listed wire nut
G. Black wires
H. UL listed or CSA approved
conduit connector
Complete Installation
3-Wire Cable from Power Supply to 3-Wire Cable
from Cooktop
IMPORTANT: Use the 3-wire cable from power supply where
local codes permit connecting the frame-ground conductor to
the neutral (white) junction box wire:
A
B
C
A. Junction box
B. Red wires
C. White wire (from power
supply)
D. Green or bare ground wire
(from cooktop)
1. Disconnect power
2. Remove junction box cover, if present.
3. Connect the flexible cable conduit from the cooktop to the
junction box using a UL listed or CSA approved conduit
connector.
4. Tighten screws on conduit connector if present.
5. Connect the two black wires together using the UL listed
wire nuts.
6. Connect the two red wires together using the UL listed wire
nuts.
7. Connect the green or bare cooktop cable wires to the white
(neutral) wire in the junction box using the UL listed wire
nuts.
8. Install junction box cover.
9. Reconnect power.
4. Read "Cooktop Use" in the cooktop Use and Care Guide.
NOTE: If the cooktop does not work after turning on the power,
check that a circuit breaker has not tripped or a household fuse
has not blown. See "Troubleshooting" section in the Use and
Care Guide for further information.
If you need Assistance or Service:
Please reference the "Assistance or Service" section of the Use
and Care Guide or contact the dealer from whom you purchased
your cooktop.
D
E
F
G
H
E. 3-Wire cable from cooktop
F.
Black wires
G. UL listed wire nut
H. UL listed or CSA approved
conduit connector
