Automatic Transfer Switch
CONNECTIONS
ATyS 6s
Control circuits

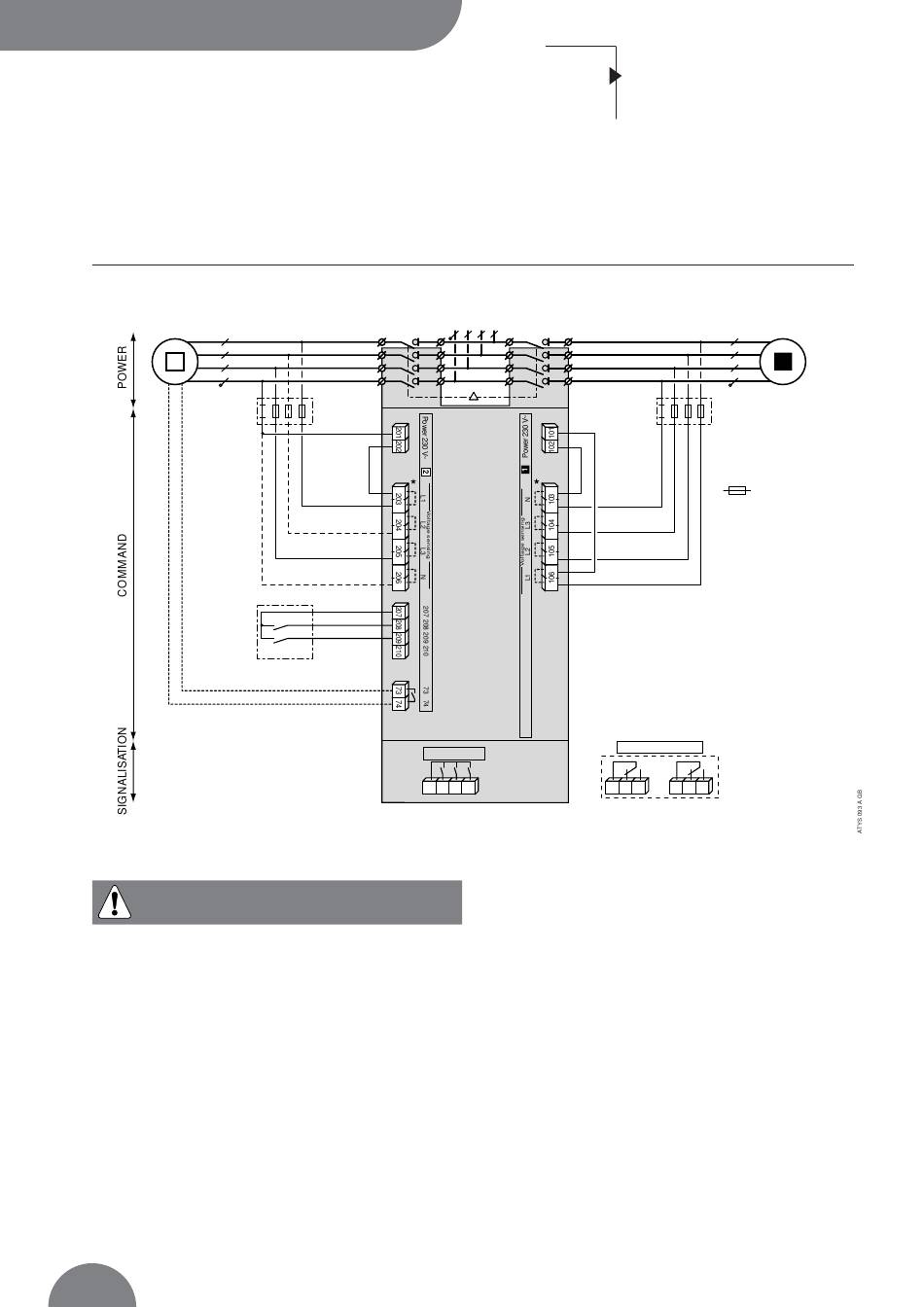

EXAMPLE: 400 Vac (P-P) APPLICATION WITH NEUTRAL CONDUCTOR
L1
L2
2
L3
N
Verify power supply terminals 101-102 and
201-202: 230 Vac nominal.
90
ATyS
F2
I II 0
13 14 24 34
Power circuits
Control circuits
Voltage sensing and
power supply kit
L1
L2
L3
N
F1
F1, F2
Fuse protection
230 Vac 5 A
* internal link between terminals
I II
81 82 84 91 92 94
SOCOMEC - Réf.: 531 848 F
