Automatic Transfer Switch

OPTIONS

ATyS 3e, 6e

Communication module

Refer to Accessories Mounting to know modules mounting
instructions. This module allows RS485 communication
connection via JBUS/MODBUS
RS485
Protocol
Speed
Galvanic insulation
GENERAL POINTS

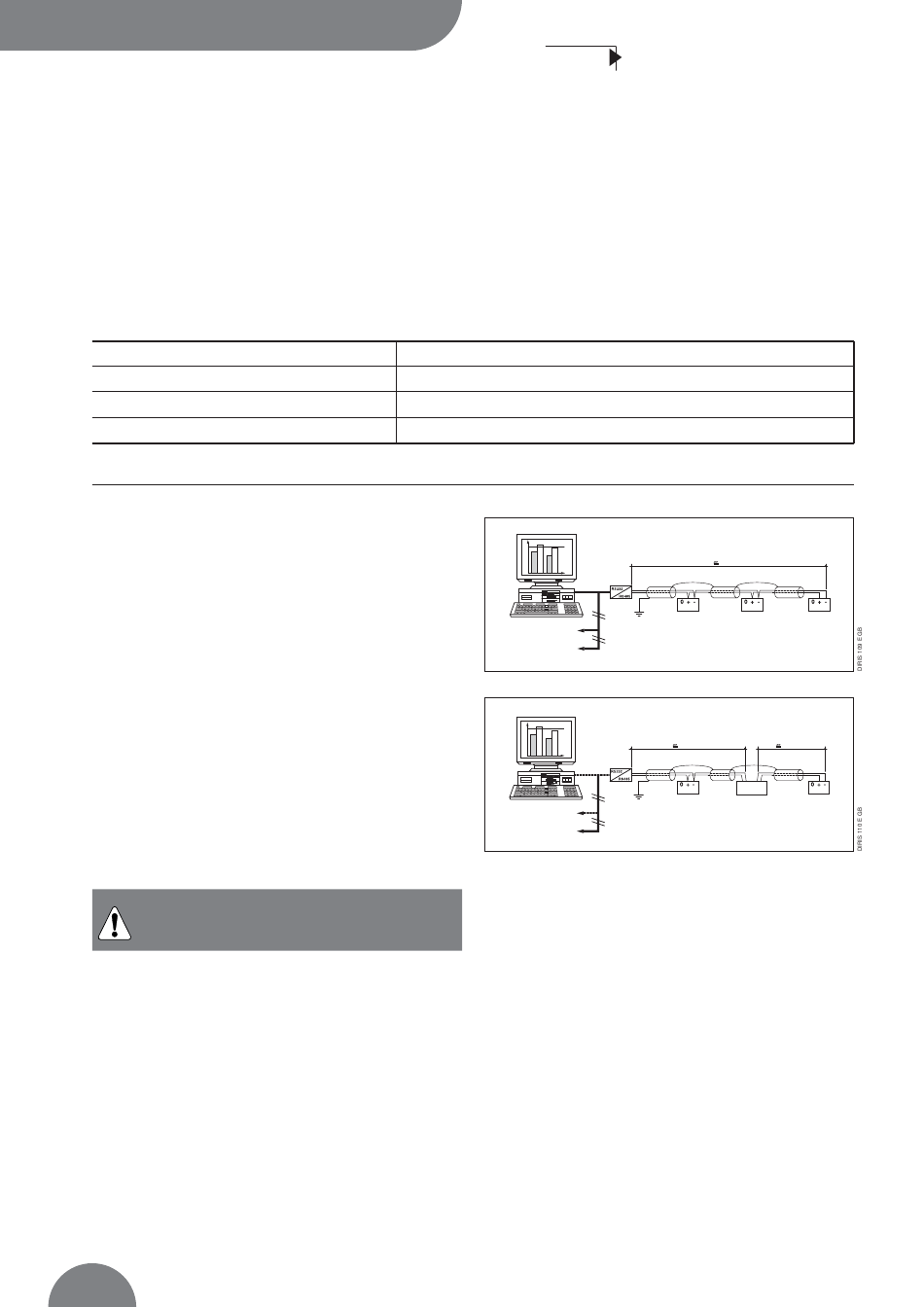

An RS 485 link is used to connect up to 31 ATyS with a
PC or a PLC over a distance of 1500 meters, using
©
JBUS / MODBUS protocol.
>
Recommendations
You should use a shielded twisted pair (LIYCY type). In
an interfearence environment or large network (in terms
of length) we recommend the use of 2 shielded pairs
(type LIYCY-CY). In this case, one pair is used for the
+ and the –, and another pair, where the 2 wires are
short-circuited, for the 0 V.
A repeater (1 channel) or an arrestor (4 channels) should
be used if you intend to exceed the distance (1500 m)
and / or maximum number (31) of ATyS. Please contact
us for more information.
A 120 ohm resistance (found on the RS485
optional module) must be fixed at both ends of
the link.
126
ATyS
® protocol.
2 wires half duplex
JBUS / MODBUS
2400, 4800, 9600, 19 200, 38 400 Bauds
4 kV (1 min 50 Hz)
Communication module
® in RTU mode
R = 120
Programmable
controllers
Other systems
1200 M
R = 120
Programmable
controllers
Other systems
1200 M
N 1 N 2 N n
R = 120
1200 M
0+- -+0
N 1 repetor N n
R = 120
RS485
