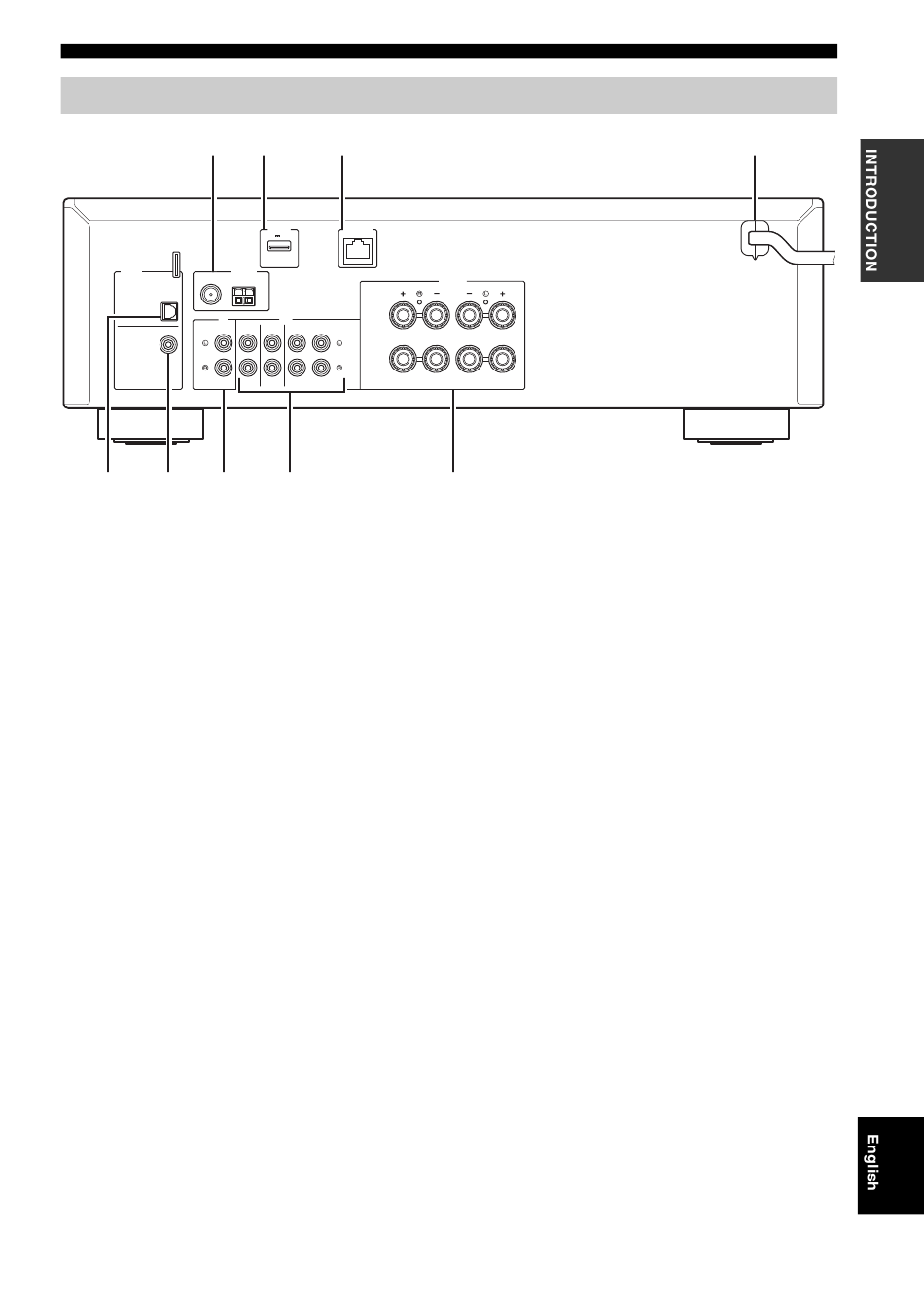

Rear panel

1
ANTENNA
DIGITAL
FM
75 Ω
OPTICAL
CD
COAXIAL
5 6 7
1 ANTENNA terminals
For connecting to FM and AM antennas (p.12).
2 DC OUT jack
For supplying power to a Yamaha AV accessory. For
details, refer to the instruction manual of the AV
accessory.
3 NETWORK jack
For connecting to a network (p.13).
4 Power cable
For connecting to an AC wall outlet (p.13).
5 OPTICAL jack
For connecting to audio components equipped with
optical digital output (p.10).
6 COAXIAL jack
For connecting to audio components equipped with a
coaxial digital output (p.10).
7 CD jacks
For connecting to a CD player (p.10).
8 LINE 1-3 jacks
For connecting to analog audio components (p.10).
9 SPEAKERS terminals
Used to connect speakers (p.11).
2 3
DC OUT NETWORK
5V 0.5A
AM
A
LINE
PB REC
B
1 2 3
8
SPEAKERS
9
Controls and functions
4
7
