1) Product description:

This control unit for the automation of gates and doors enables
control of two gearmotors with single-phase alternating current.
The unit features a series of Dip-switches (mini switches) that enable
the selection of the various functions, as well as trimmers used for
making adjustments.
The status of the inputs is signalled by LED's located next to the
1
A Transformer
B Low voltage fuse (500 mA F)
C Force adjustment trimmer (F)
D Pause Time adjustment trimmer (TP)
E Opening Time Delay adjustment trimmer (TRA)
F Motor 1 Working Time adjustment trimmer (TL1)
G Motor 2 Working Time adjustment trimmer (TL2)
H Closing Time Delay adjustment trimmer (TRC)
I Terminal board for aerial
J LED OK
K Radio slot connector
L Step-by-step button
M Function selection Dip-Switch
N Microprocessor
Warnings:
! ATTENTION: If you need to replace a fuse, be careful to use one of the same type and having identical characteristics:
Dimensions 5x20; Rated current (e.g. 5A); Blowout characteristics (T = Delayed F = Quick); Maximum voltage and
breaking capacity.
inputs. An additional LED located near the microprocessor indicates
whether the internal logic is operating properly.

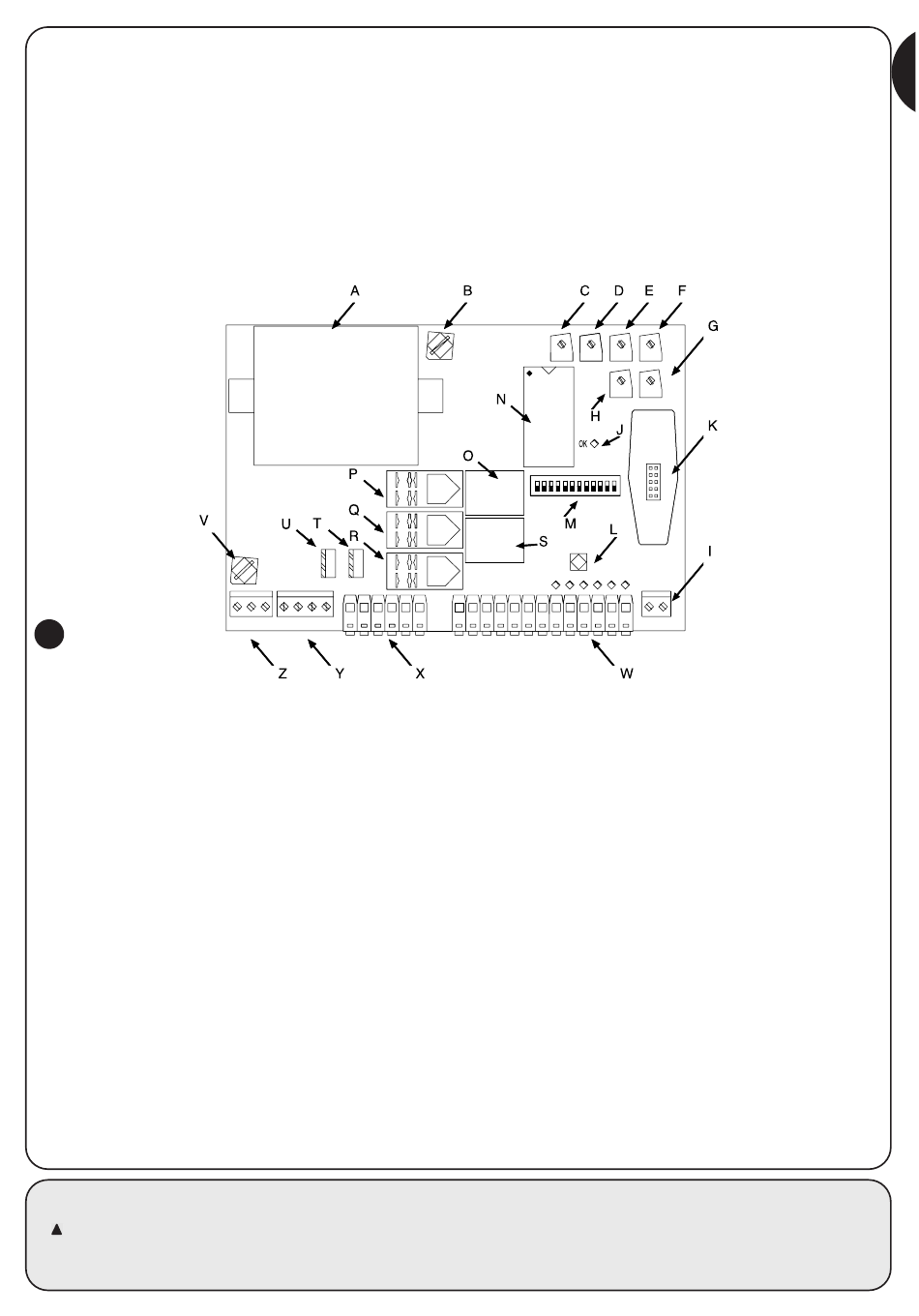

To facilitate part identification, Fig.1 below shows the most
significant components.
O Electric lock relay
P Common motor relay
Q Courtesy light relay
R Open / Close movement direction relay
S Phototest relay
T Motor 2 Triac
U Motor 1 Triac
V Line fuse (5A F)
W Input / output control terminal board
X Motor outputs terminal board
Y Flashing / C.tsy light output terminal board
Z Power supply terminal board
