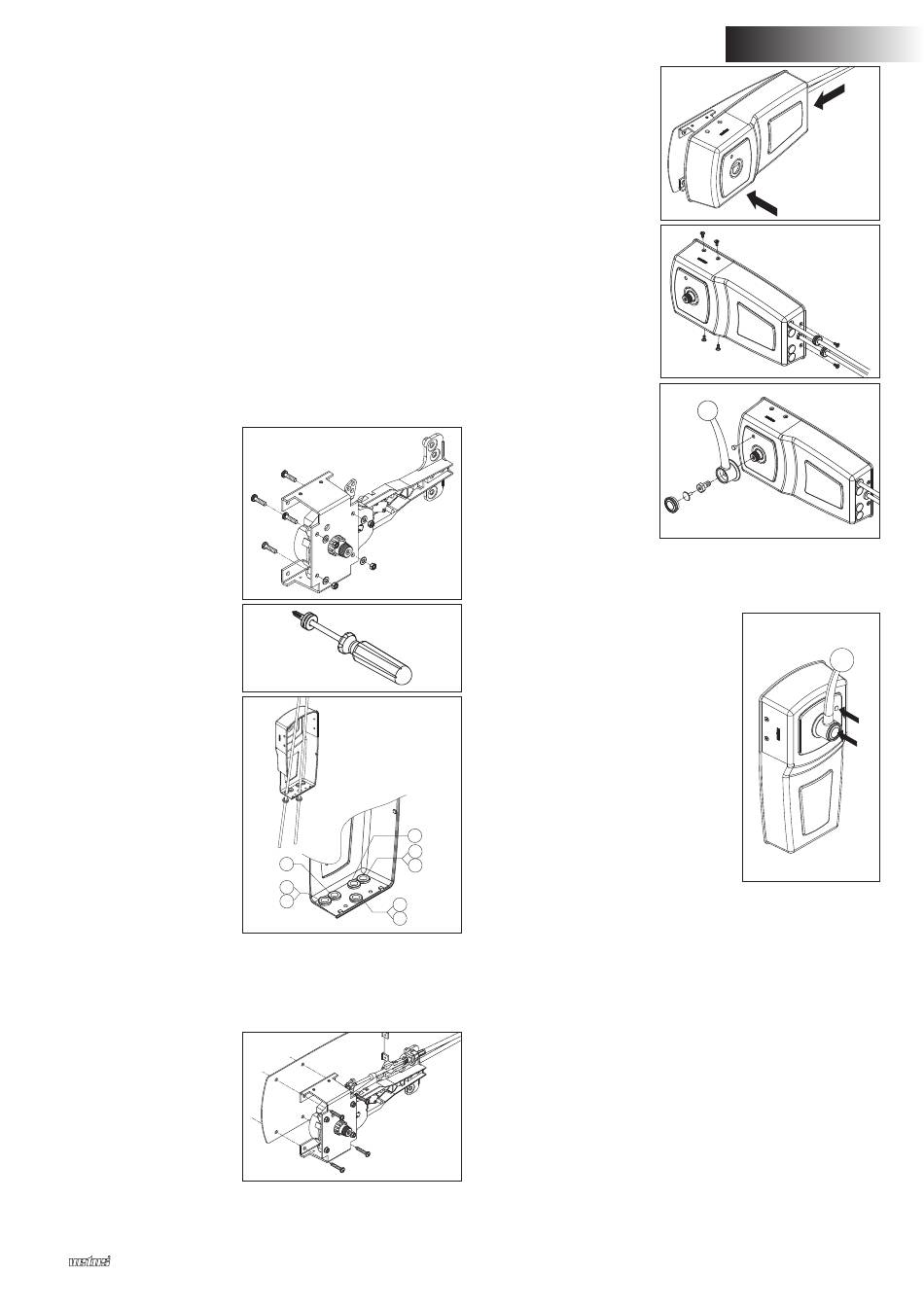

Housing and Lever
Keep the following in mind when choosing where to mount the
remote control.
- the lever must be able to be extended fully,
- to fasten the pull-push cables to the mechanism, it must be
possible to slide the housing over the full length of the cables.
See 'Main measurements' diagram.
To enable attachment of the remote control to the bulkhead, 6.5
mm holes have been made in the rear plate and the support of
the mechanism. Use screws that are suitable for the bulkhead's
material. Note! The rear plate and the mechanism are attached
simultaneously.
Using the rear plate, outline the mounting holes to be drilled.
Drill holes of a diameter suitable for the screws to be applied.
Mount the support on the
mechanism.
Pierce 2 grommets and
slide these over the outer
casing of the pull-push
cables.
Pass the pull-push cables
through the holes in the
housing.
Also consult the dia-
grams on p. 14 to see
which holes should be
used for which cable.
Mount the cables on the mechanism.
Consult the diagrams on p. 14 for this.
Mount the mechanism
together with the rear
plate on the bulkhead.
Mechanical remote engine control RCEX
4
7
33C 3
8
5
KM
6
OS
1
2
Place the housing on the
mechanism (1) and (2).
Mount the fastening
screws.
Provide the bolt M10
with a screwlock
(Loctite ® 243).
Check the path of the
cables.
Adjustments
Screw 1 can be adjusted to set the fric-
tion for the gas mechanism, depending
on the counter pressure of the throttle.
Control
Button 2 can be used to turn off the
control of the gearbox, so that gas can
only be given. (For example, for start-
ing and warming up the engine.)
When the lever is returned to the neu-
tral position, the button will pop back
33C
KM out, and the remote control is ready for
OS
normal use.
Maintenance
Clean, as necessary, the lever and the housing with freshwater.
Check the mechanism for loose components and for wear of the
moving parts on a regular basis.
Apply a water-resistant lubricant to the moving parts routine
Check the cables and the cable connections for wear and cor-
rosion on a regular basis.
ENGLISH
1
2
M10
1
2
5
