2 DESCRIPTION OF THE FRONT PANEL

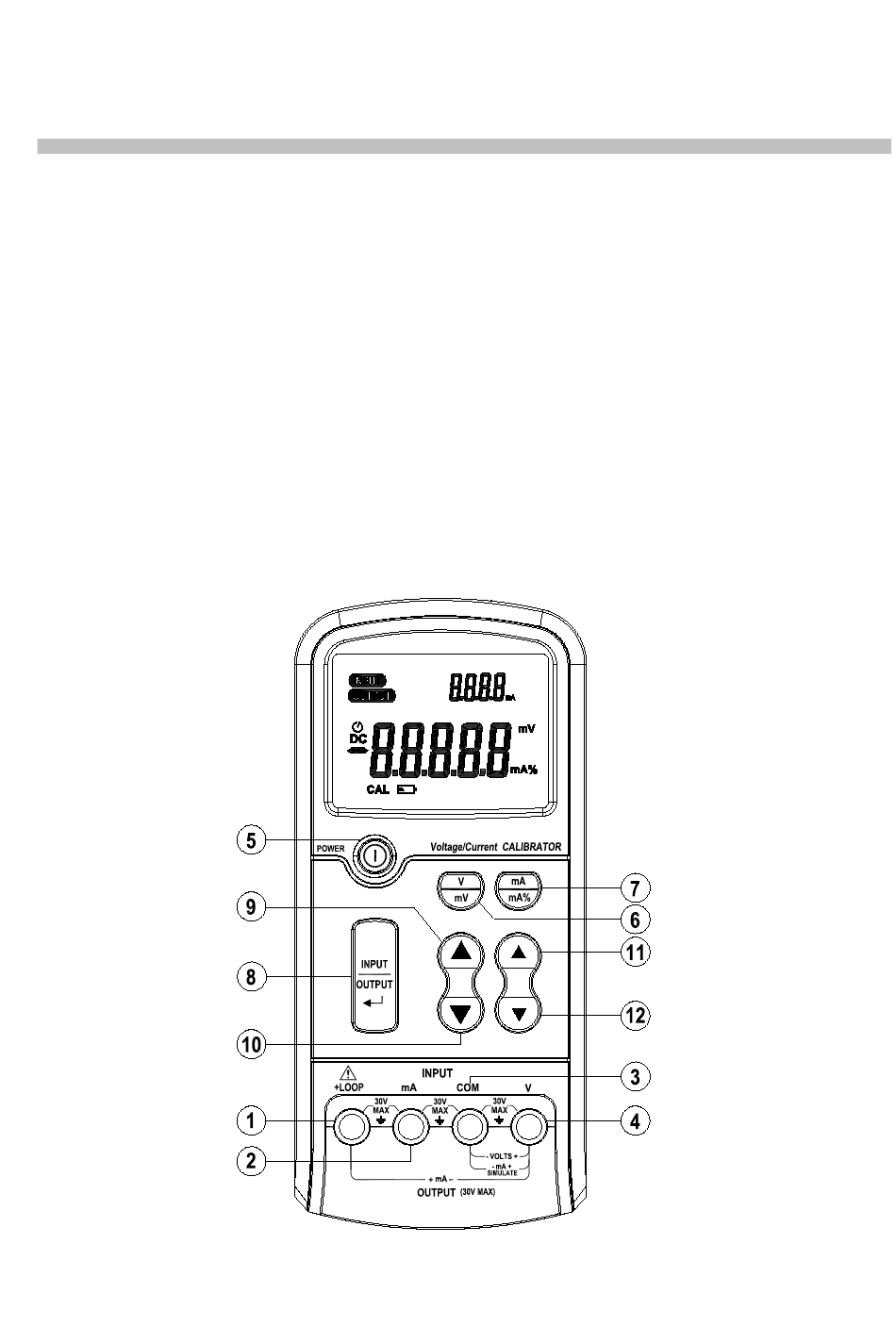

The front panel is as shown below:
1. + Terminal of 24 V loop
2. + Terminal of mA measurement input/– Terminal of 24V loop
3. Negative input/output terminal (earth)
4. + Terminal of V mV voltage input/output
5. On/Off button
6. V mV selection key
7. mA and mA% selection key
8. Input/output selection key
9. Fast setting incrementation key
10. Fast setting decrementation key
11. Slow setting incrementation key
12. Slow setting decrementation key
