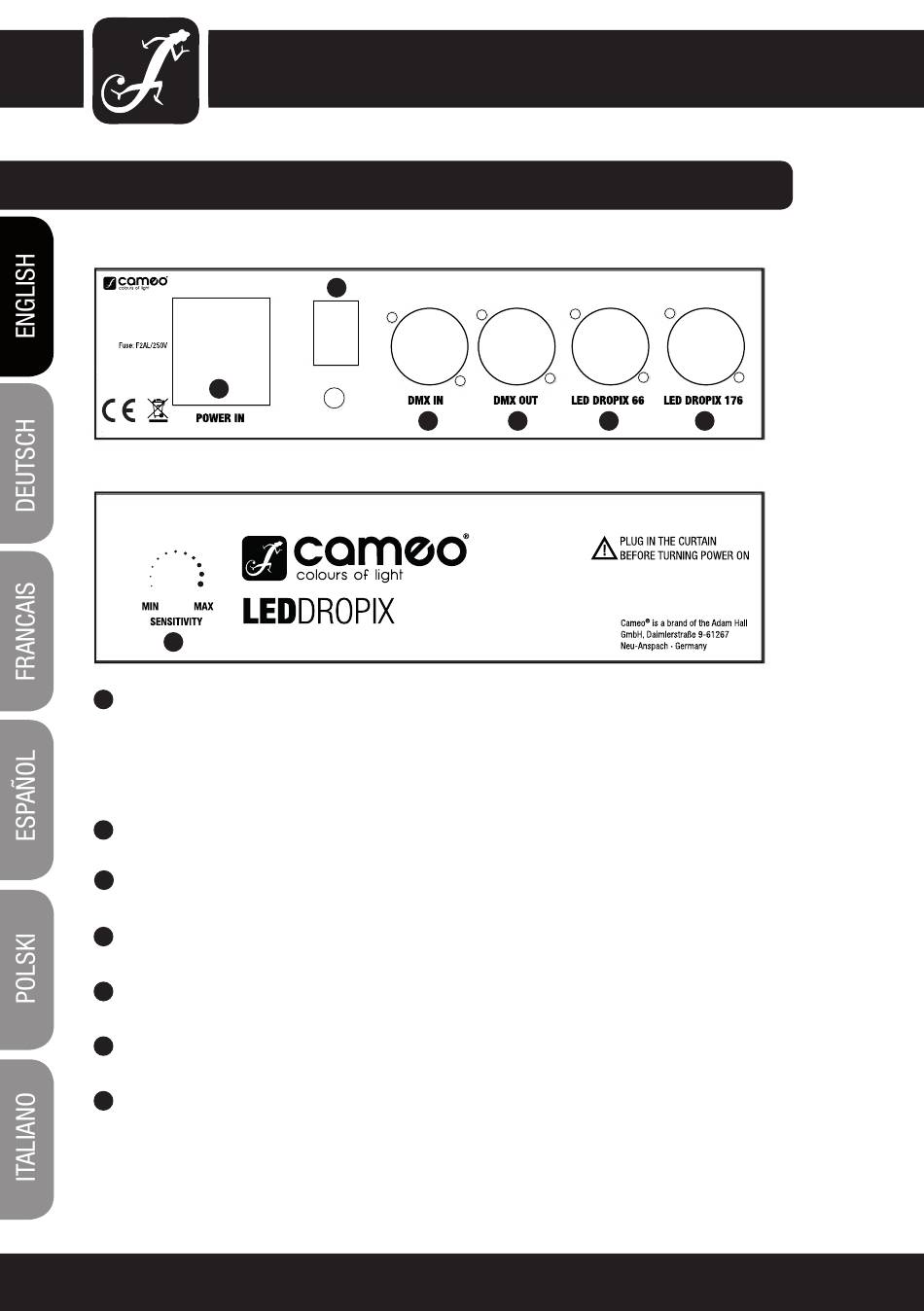

CONTROLLER, CONNECTIONS AND CONTROLS:
AC 220V - 240V / 50Hz
Power Consumption: 50 W
9
POWER IN
3
IEC power input socket with built-in fuse holder (voltage 220-240 V AC). Connection via the supplied IEC
mains cable.IMPORTANT NOTICE: Replace the fuse only with a fuse of the same type and rating. If the fuse
blows repeatedly, please contact an authorised service centre.
ON / OFF SWITCH
On / Off switch for the power supply of the device.
4
DMX IN
3-pin male XLR socket for connection of a DMX controller (e.g. DMX Mixer).
5
DMX OUT
3-pin XLR socket for looping through the DMX control signal.
6
LED DROPIX 66
Connector socket (4-pin XLR) for the 2 x 1.3 m large LED curtain with 66 RGB LEDs.
7
LED DROPIX 176
Connector socket (4-pin XLR) for the 3.1 x 2 m large LED curtain with 176 RGB LEDs.
8
SENSITIVITY
Controller for adjusting the microphone sensitivity in the music control mode (Sound Mode).
9
When turned to the left, the sensitivity is lowered, when turned to the right, it is increased.
CAUTION!
To avoid damage to the LED curtains or controller, always connect LED curtains before
using the controller!
10
4
3
5 6 7 8
