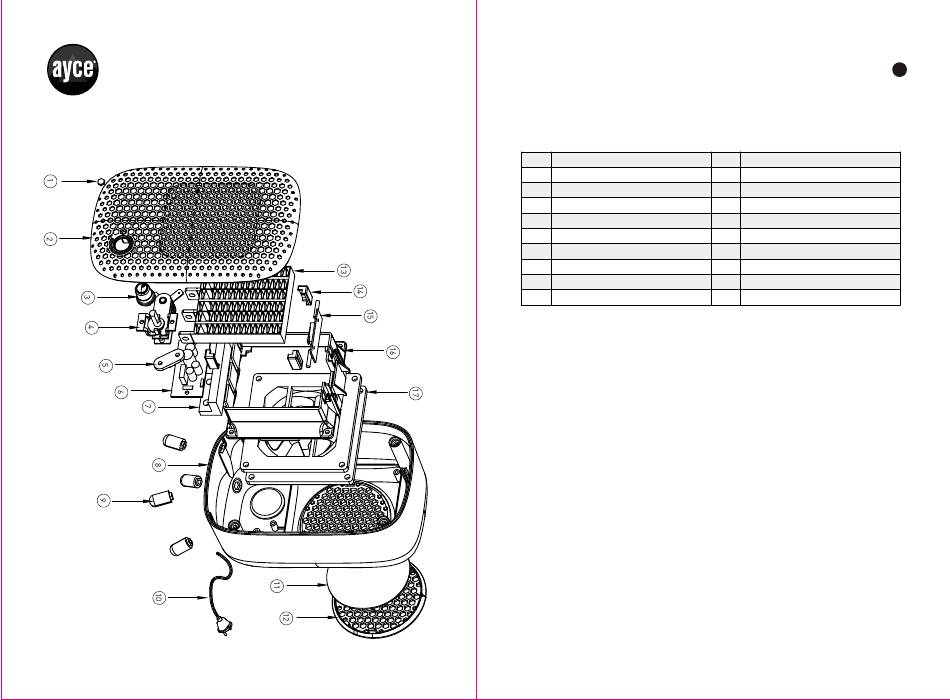

TECHNICAL DRAWING

SPARE PARTS LIST

Description
NO.
Lamp cover
1
Front housing
2
Knob
3
Thermostat
4
Line clip
5
PCB
6
PCB support
7
Back housing
8
Feet
9
48 | 49
GB
Description
NO.
Power cord
10
Filter
11
Back grill
12
PTC-heating element
13
PTC-bracket
14
Thermal cut off
15
PTC support
16
Fan
17
