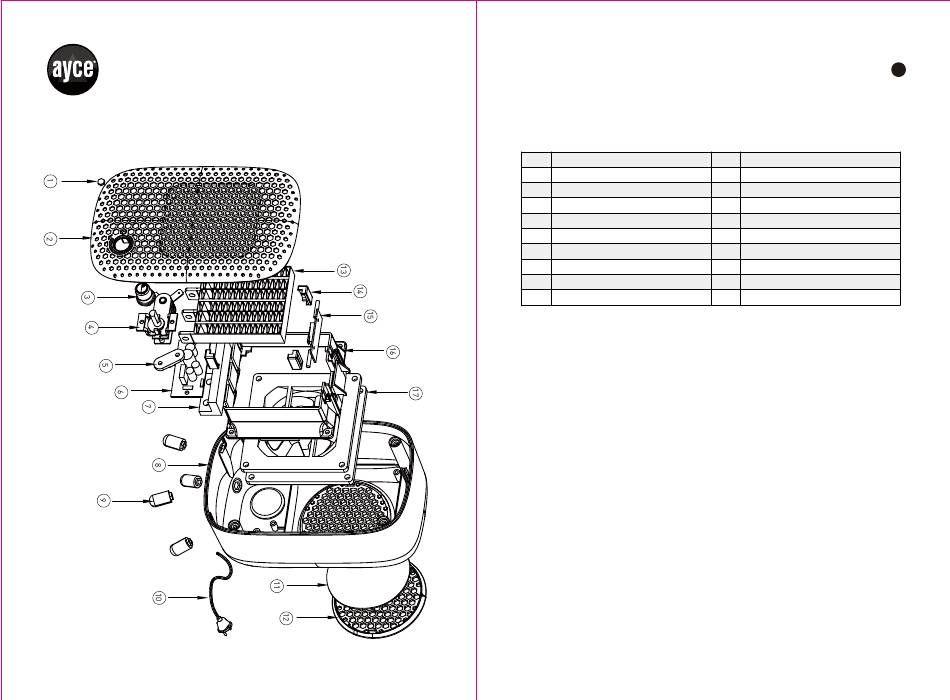

VUE ÉCLATÉE
LISTE DES PIECES
Dénomination
N°
Cache d'ampoule
1
Boîtier avant
2
Bouton
3
Thermostat
4
Clip de fil
5
PCB
6
Support PCB
7
Boîtier arrière
8
Pied
9
24 | 25
F
Dénomination
N°
Câble d'alimentation
10
Filtre
11
Grille arrière
12
Elément chauffant PTC
13
Capot de CTP
14
Coupe - circuit thermique
15
Support CTP
16
Ventilateur
17
