Installation Dimensions; Installing And Securing - Gaggenau Rw 404 Notice D'utilisation

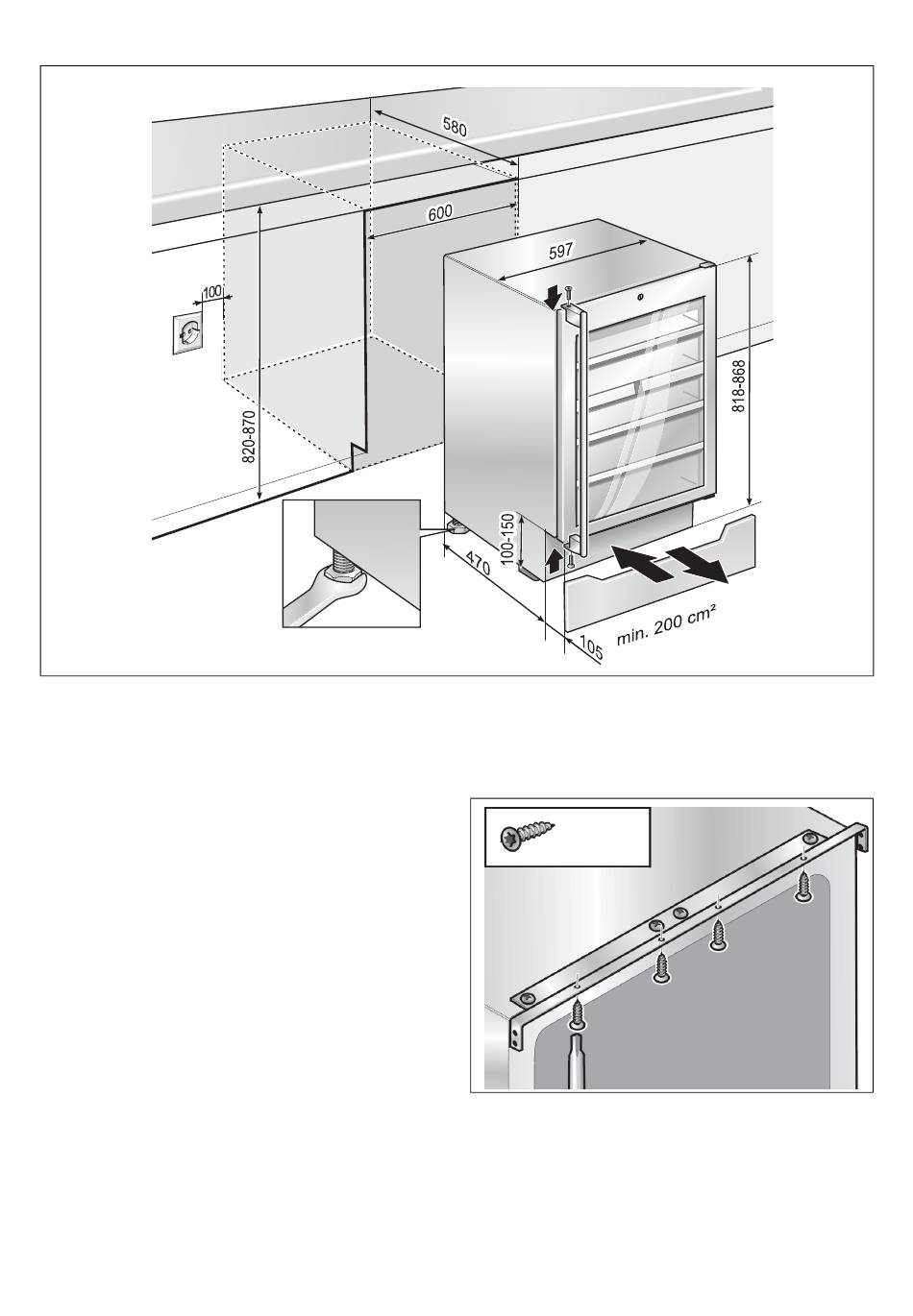

Installation dimensions

Installing and securing

1. Adjust the appliance to the height of the recess at
the four underside positioning feet.
2. Plug in the mains plug.
3. Push the appliance into the recess.
4. Secure the appliance in the recess with four
4 x T15 screws.
5. Attach handles, see "Changing over the door
hinges".
Note
If the appliance cannot be secured as shown
(e.g. worktop of marble or granite), use instead
the mounting holes in the sides.
4 x T15
Important information:
The ventilation width in the base fascia must be
no less than 200 cm².
23
