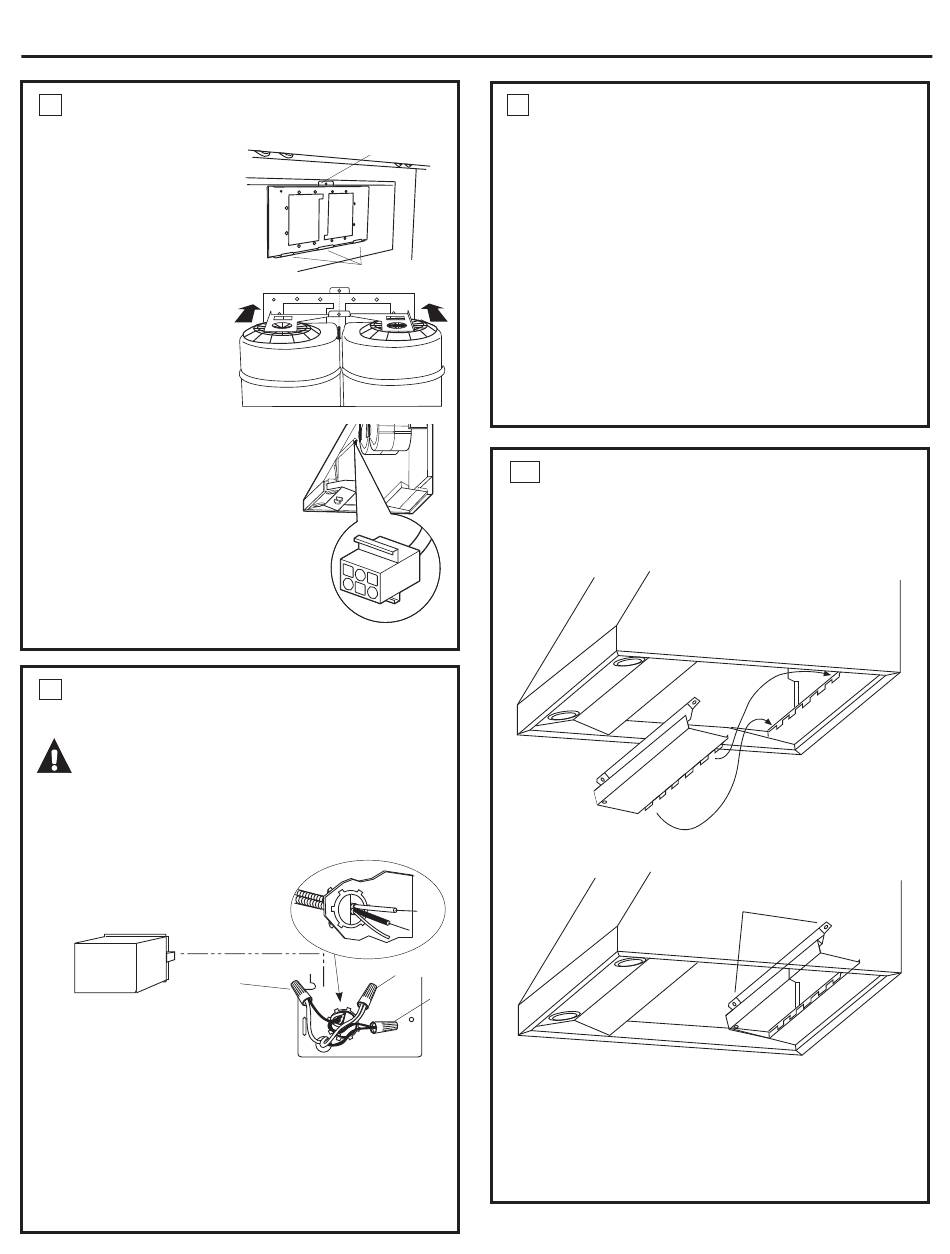

INSTALL MOTOR

7
• Align and engage the slots
in the blower assemly to
the 3 hooks at the rear of
the exhaust opening.
• Rotate motor uplards until it
aligns with the attachment
screw location.
• Secure the motor to
attachment bracket at
the front of the opening
with washer and screw
provided.
• Plug the motor
connector into the
mating hood connector.
Seethe illustration for
the hood connector location. Touch
the hood to locate and make the
connection.
IMPORTANT : Hold the connector so
the two square corner terminals are
at the top as you position the connector
to plug it in.
CONNECT ELECTRICAL
8
Verify that power is turned off at the source.
WARNING:
with a ground wire, a ground must be provided by the
installer. When house wiring is aluminum, be sure to use
UL approved anti-oxidant compound and aluminum-to-
copper connectors.
A
Remove
C
Insert Power
Junction Box
Conduit thru Strain
Cover
Relief and Tighten
Ground
B
Check that White, Black and
Gree Hood Wires are Threaded
thru Small Hole in Bracket.
D
• Use wire nuts to connect incoming ground to green,
white to white, and black to black.
• Push wires into junction box and replace cover. Be
sure wires are not pinched.
Installation Instructions
Motor Attachment
Bracket
Motor Hooks
If house wiring isnot 2-wire
White
Use UL Listed Wire Nuts

INSTALL DUCT COVERS

9
To install the 12" duct cover alone:
• Place the 12" section of the decorative duct cover on
top of the hood.
• Secure the cover on the top of the hood with 4 screws
provided.
To install the 2-piece duct cover:
• Place the 2-piece duct cover on the top of the hood.
• Secure the bottom cover to the top of the hood with 4
screws provided. See illustration, page 16.
• Extend the inside section upwards to meet the ceiling
and ceiling bracket
• Secure the duct cover to the bracket with the 2 small
Phillips screws provided.
INSTALL FILTER SUPPORT
10
• Tip filter support into the rear of the hood.
• Insert support tabs into the slots at the rear of the
hood.
Black
• Secure the support to the hood with screws as
shown..
16
Insert Tabs into Slots
Install 2 Screws
