4.3.1 F lat screens with flat back
Fig. 13:

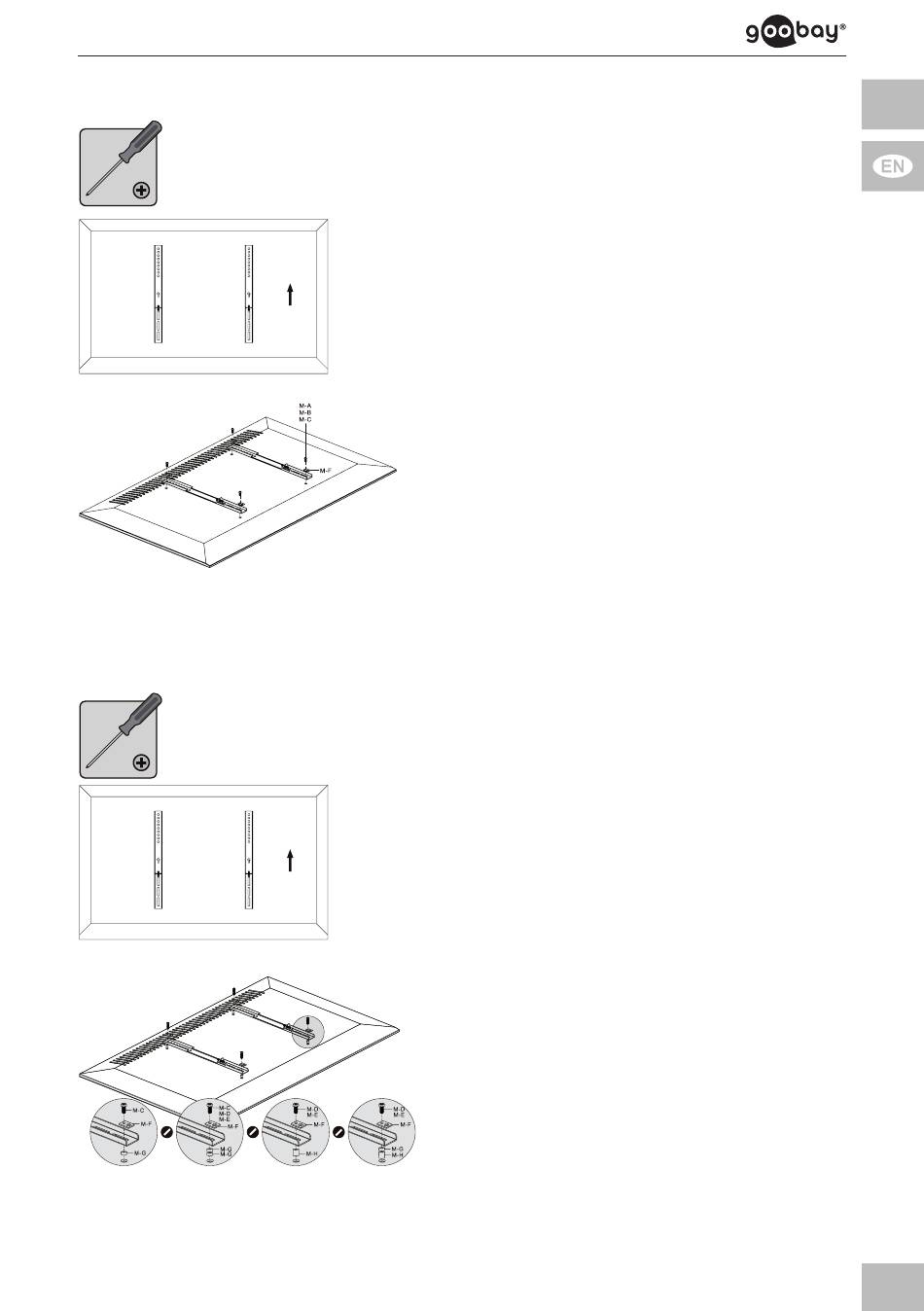

Flat screens with flat back 1

Fig. 14: Flat screens with flat back 2

4.3.2 Flat screens with arched back

Fig. 15: Flat screens with arched back 1
B
B
Fig. 16: Flat screens with arched back 2
1. L ean the flat screen vertically
o n a soft, large surface or a
wall and protect it of scratches
and overturning.
2. Attach the adapter brackets
( B) with washers (M-F) and
s crews, fitting to your flat
s creen to the flat screens
back.
Align parts with arrow pointing up.
1. L ean the flat screen vertically
o n a soft, large surface or a
wall and protect it of scratches
and overturning.
2. Attach the adapter brackets
( B) with washers (M-F),
s crews and TV spacers to the
flat screen.
Align parts with arrow pointing up.
