Watts VALPES DVX 25 Manuel D'installation Et D'utilisation page 43

EN

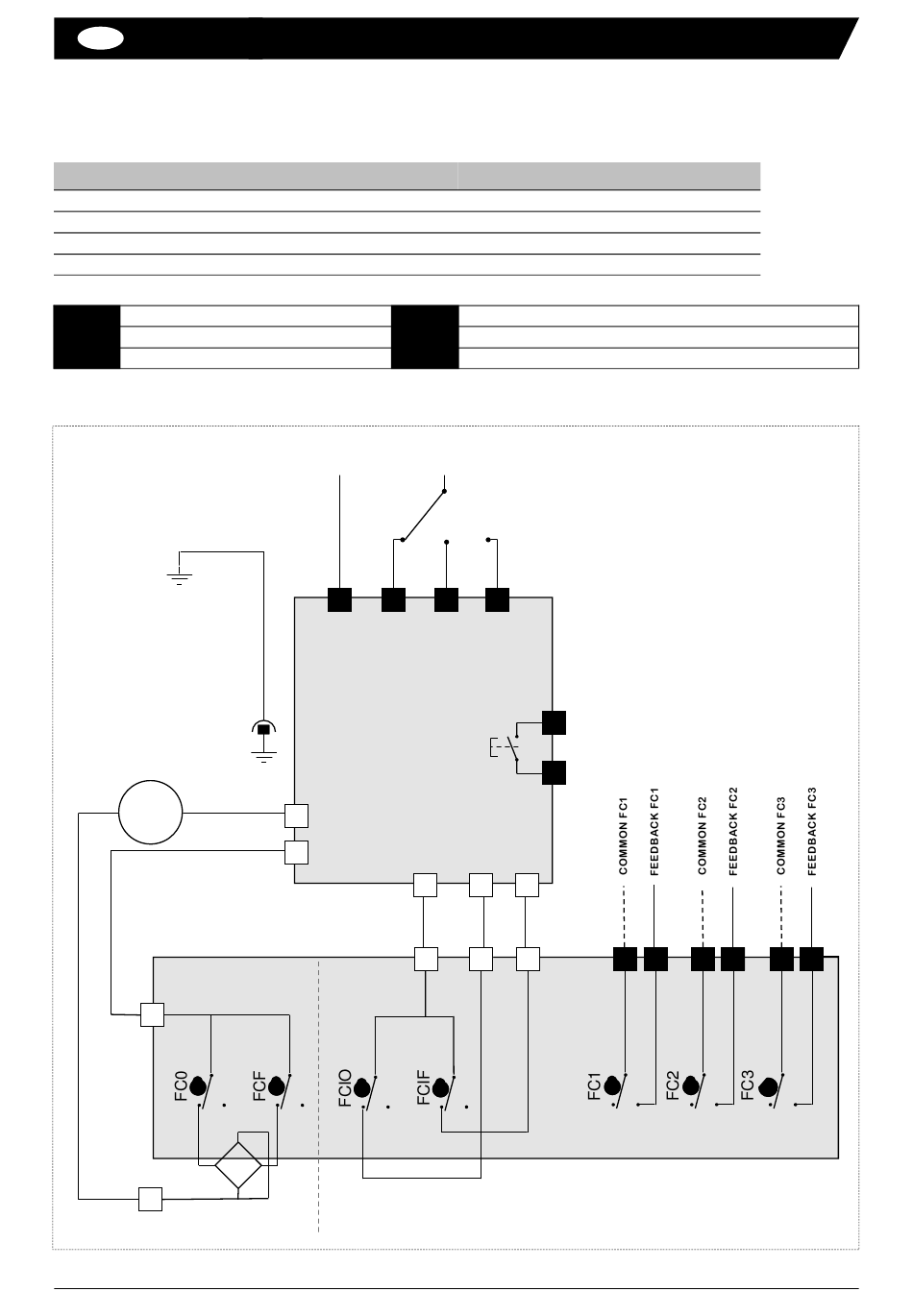

3 positions (GF3) : electric diagram
Description
FC0 Open limit switch
FCF Close limit switch
FCIO Intermediate open limit switch
FCIF Intermediate close limit switch
4,8 Auxiliary limit switch 1 NO
6,9 Auxiliary limit switch 2 NO
F4,F9 Auxiliary limit switch 3 NC
M
A
—
B
DSBA3801 • Rév. 02/06/2021
1,2,3,4
D1/D2
N / -
O
1 2
15V-30V 50/60Hz (12V-48V DC)
100V-240V 50/60Hz (100V-350V DC)
Failure detected :
contact closed
TP/PE
C
A
~
+
~
Description
FC1 Auxiliary limit switch 1
FC2 Auxiliary limit switch 2
FC3 Auxiliary limit switch 3
Power supply terminal
Failure report Terminal (24V DC / 3A max) - dry contact
Ph / +
C I
3 4
D1
D2
F6 F7 F8
F6 F7 F8 4 8 6 9 F4
SNAA710000
F9
