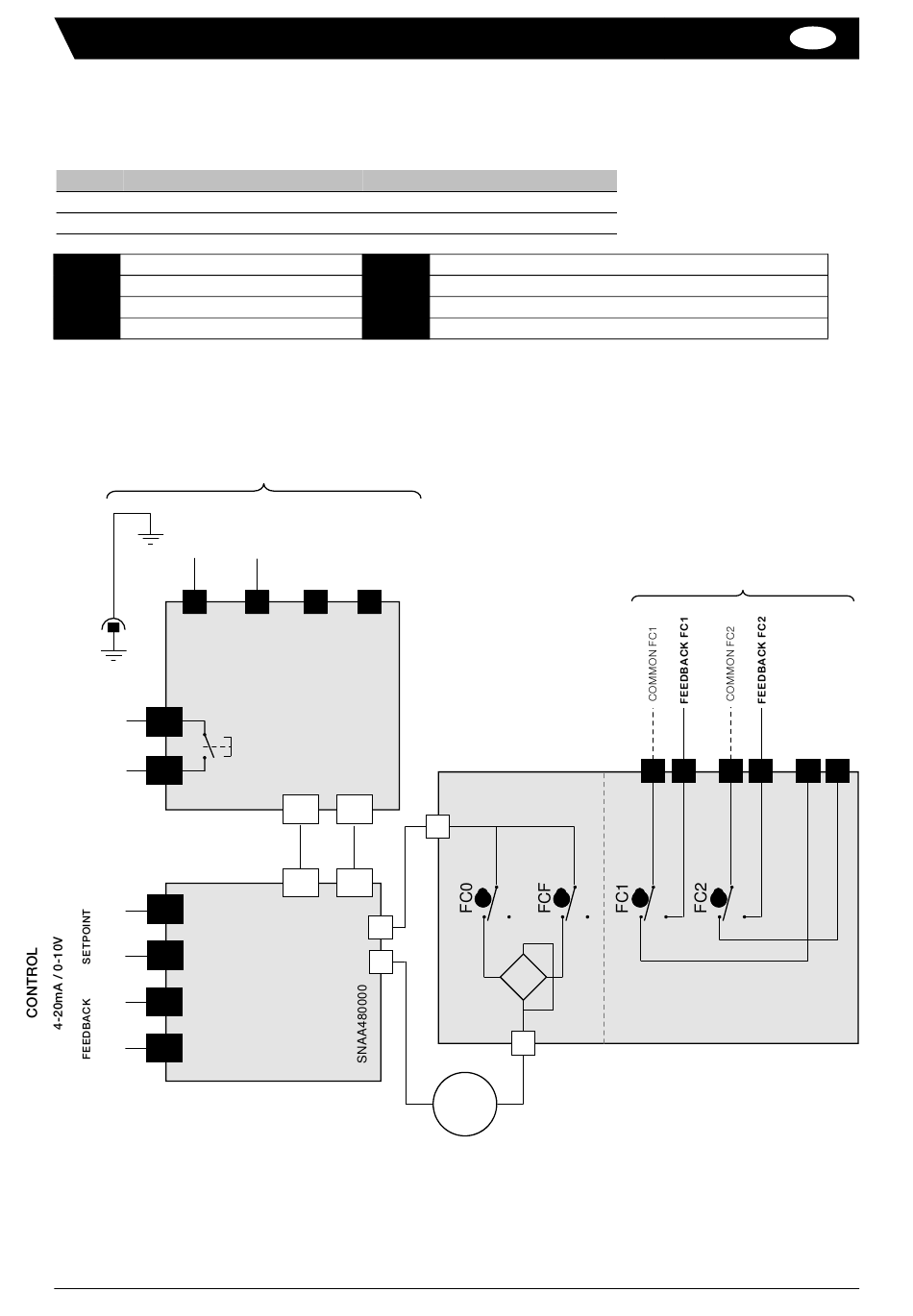

POSI (GP5) : schéma électrique
Description
Open limit switch
FC0
Close limit switch
FCF
4,5 Auxiliary limit switch 1 NO
6,7 Auxiliary limit switch 2 NO
4,8 Auxiliary limit switch 1 NF
6,9 Auxiliary limit switch 2 NF

POWER SUPPLY

N
-
1
100V-240V 50/60Hz (100V-350V DC)
15V-30V 50/60Hz (12V-48V DC)
TP/PE
D1
D2
+ 16
-
15
-
14
+
13
40
FC1
FC2
1,2,3,4
D1/D2
13,14
15,16
Ph
+
2 3 4
Failure detected :
contact closed
17 18
17 18
A
C
Description
Auxiliary limit switch 1
Auxiliary limit switch 2
Power supply terminal
Failure report Terminal (24V DC / 3A max) - dry contact
Feedback terminal 4-20 mA ou 0-10 V
Setpoint terminal 4-20 mA ou 0-10 V
A
~
—
+
~
B
Motor
=
EN
FEEDBACK
4 5 6 7 8
SNAA690000
