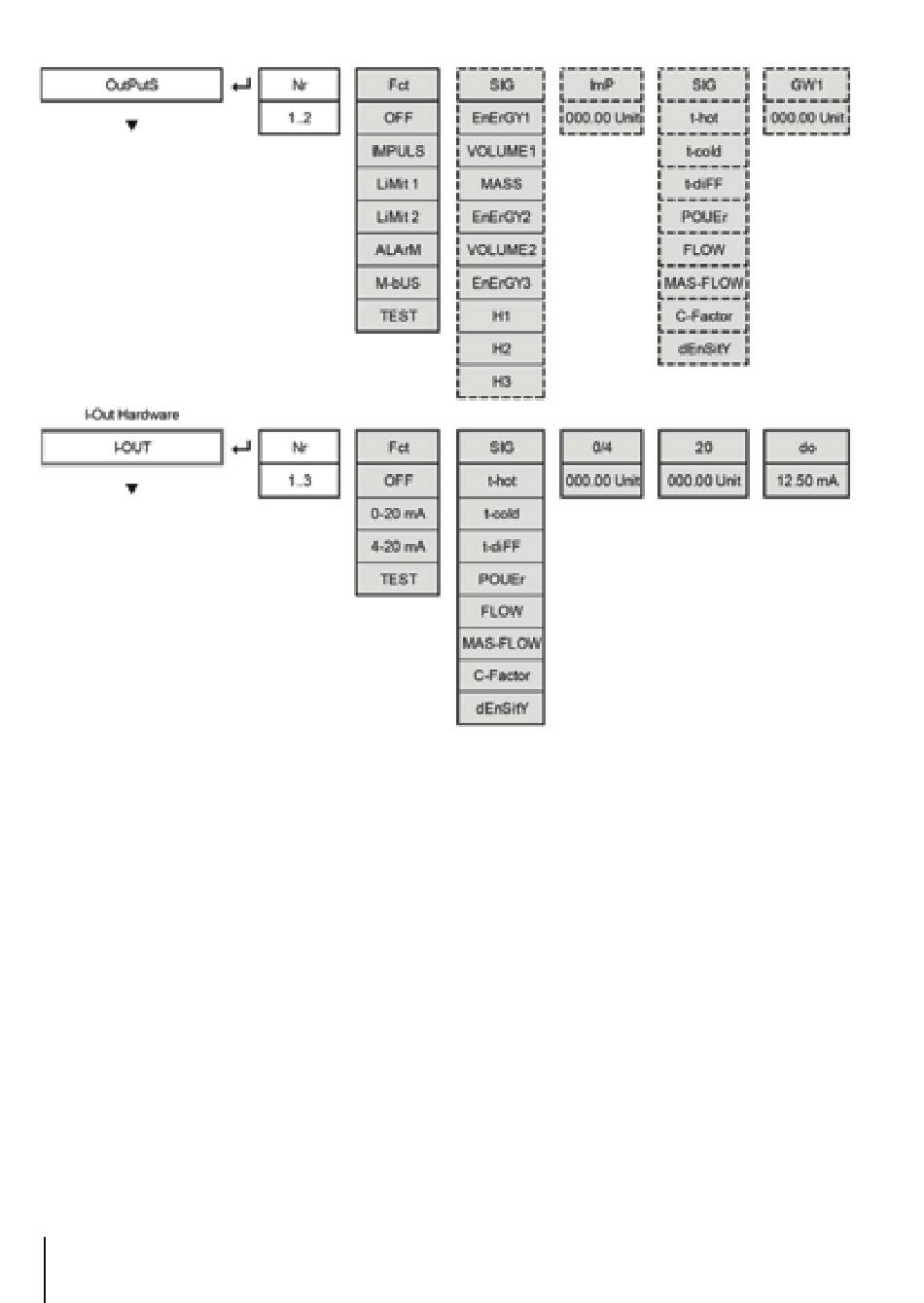

Menu description
Display Definition
Outputs Parameters for digital output signals
Nr Output number
Fct Output Function
SIG Type of the output
ImP Puls value of the output
GW1 Limit 1
GW2 Limit 2
Hys Hysteresis
Cnt Pulse counter / Seconds of overstepped
limit value
Act Direction of action
STA Actual status
78
Display Definition
I-Out Parameters for analogue output signals
Nr Output number
Fct Output Function
SIG Type of the output
0/4 Value at 0 mA
20 Value at 20 mA
do Simulation mA value
Err Current output in case of error
STA Current value
