UNPACKING AND SETUP

Take the record player and all accessories
out of the carton. Remove the two transpor-
tation
locks (15) by applying lateral pressure. The
locks are located underneath the platter at
the
front left and at the rear right. Put the platter
onto the sub-platter and press down
the two safety springs until they set into the
groove of the platter spindle.
Insert each hinge (2) into the respective
recess. Hold the dust cover (1) parallel to the
hinges (opening angle approximately 60°),
insert and push as far as it will go. Being in
this position the dust cover may be removed
at any time.
21 UNPACKING AND SETUP
!
!
!
!
!
!
!
!
!

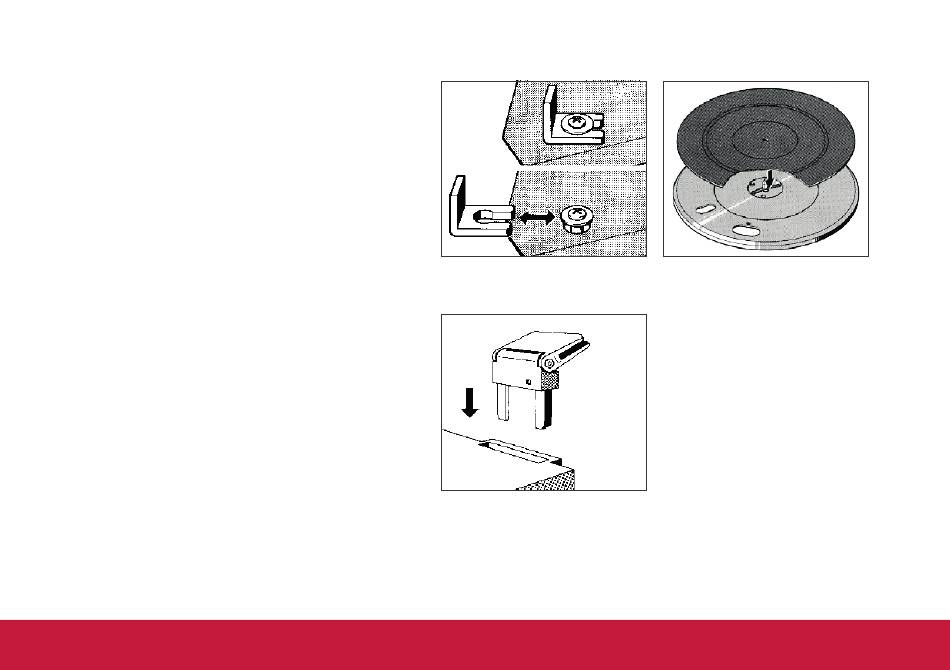

Fig. 1
!
!
!
!
!
! !
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Fig. 3
!
Fig. 2
