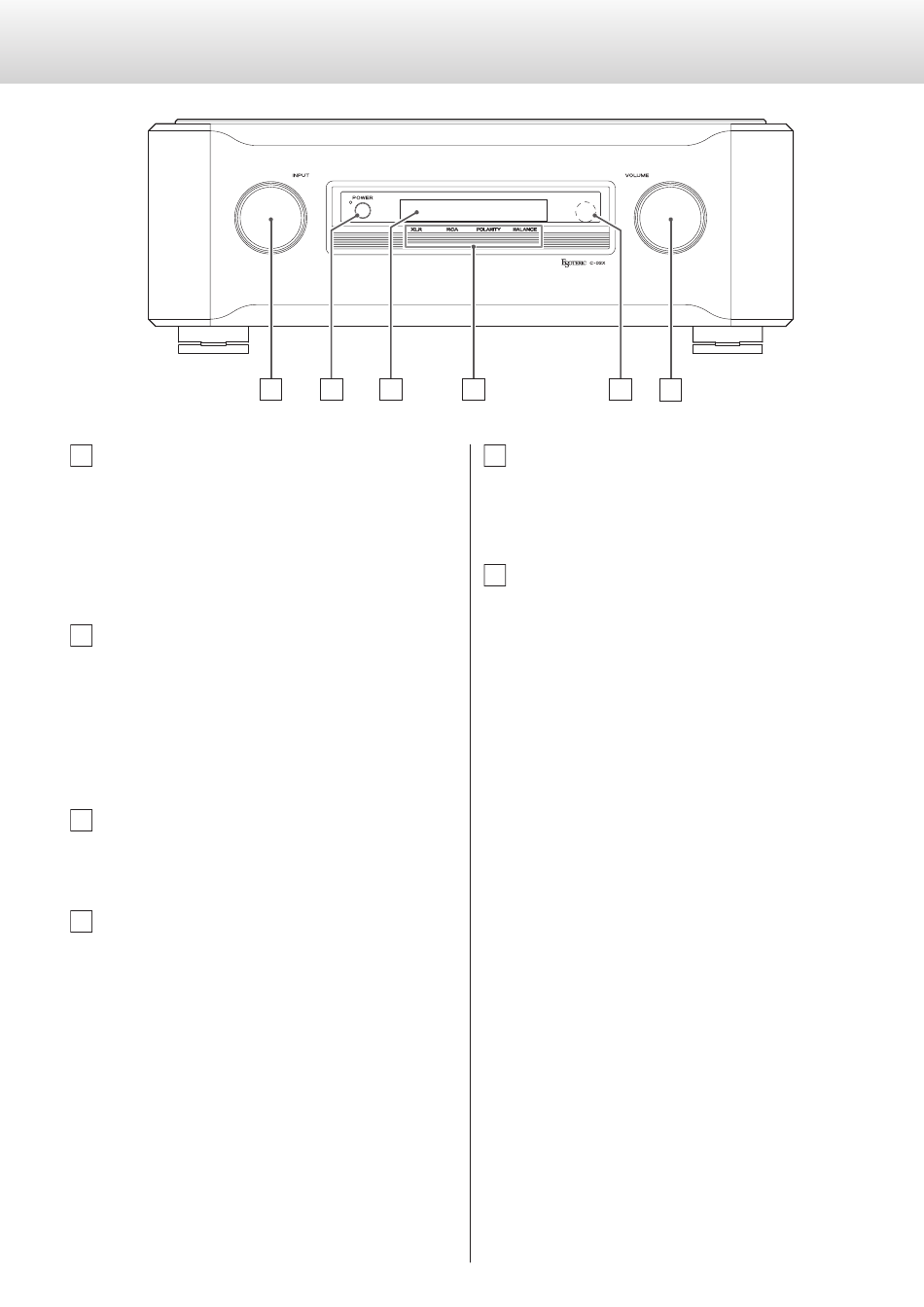

Names and functions of parts (main unit)

A
INPUT knob
Turn this knob to select the active input. Select the input that is
connected to the device you want to use.
o You can change the names that are shown on the display
for the connectors, as well as set the unit to skip them (page
20).
B
POWER button
Press this button to turn the unit on or off.
The blue indicator lights when the unit is turned on.
o Turn the unit off when not using it.
o To protect your speakers, follow the proper procedures when
you turn the unit on or off (pages 13 and 14).
C
Display
Shows the current input source name, volume, setting items, etc.
D
Output indicators
These indicators light to show the output status of the selected
source.
XLR
Lights when a signal is output from the XLR connectors
RCA
Lights when a signal is output from the RCA connectors
POLARITY
Lights when output polarity Invert is ON
BALANCE
Lights when left-right balance is set to anything but center
10
A B C D E
E
Remote control signal receiver
Signals sent from remote controls are received here. When using
a remote, point it toward this spot (page 11).
F
VOLUME knob
Use to adjust the volume.
Turn this knob clockwise to increase the volume and counter-
clockwise to decrease it.
o If through output (RCA2) is set to THRU and the input source
is RCA 2, the VOLUME knob will not function (page 19).
Sudden loud noises might cause hearing damage
V
and other trouble.
Always minimize the volume before starting
playback, and adjust it to an appropriate level
after playback begins.
F
