1. Product description

1.1

Application and dimensioning

The drain set is applied with Flamcomat in larger systems where the complete expansion volume only occurs in rare
start-up and shut-down procedures and which is not included in the installed expansion. Drainset variants
are dimensioned in a way that, in specific cases, it helps to reduce the number of additional auxiliary vessels (for FMAT).
(see also valid data sheets for the drainset with the corresponding system powers, volume flow in relation to the overall size
of the basic vessel.) (Drainage is only possible when using the integrated make-up system in the Flamcomat.)
However, it is preferable to install sufficient expansion vessels for absorbing the expansion volume and
filling this vessel correctly during commissioning with automatic, integrated FMAT make-up.
See: Doc.-Nr.:MC00018/01-2012/ eng.
1.2

Drainset mode of operation

After reaching the drainset limit (default=94% of the FG), the drainset solenoid valve will be opened.
Medium is drained until the drainset shut-off limit* is reached (default= 94%-2%).

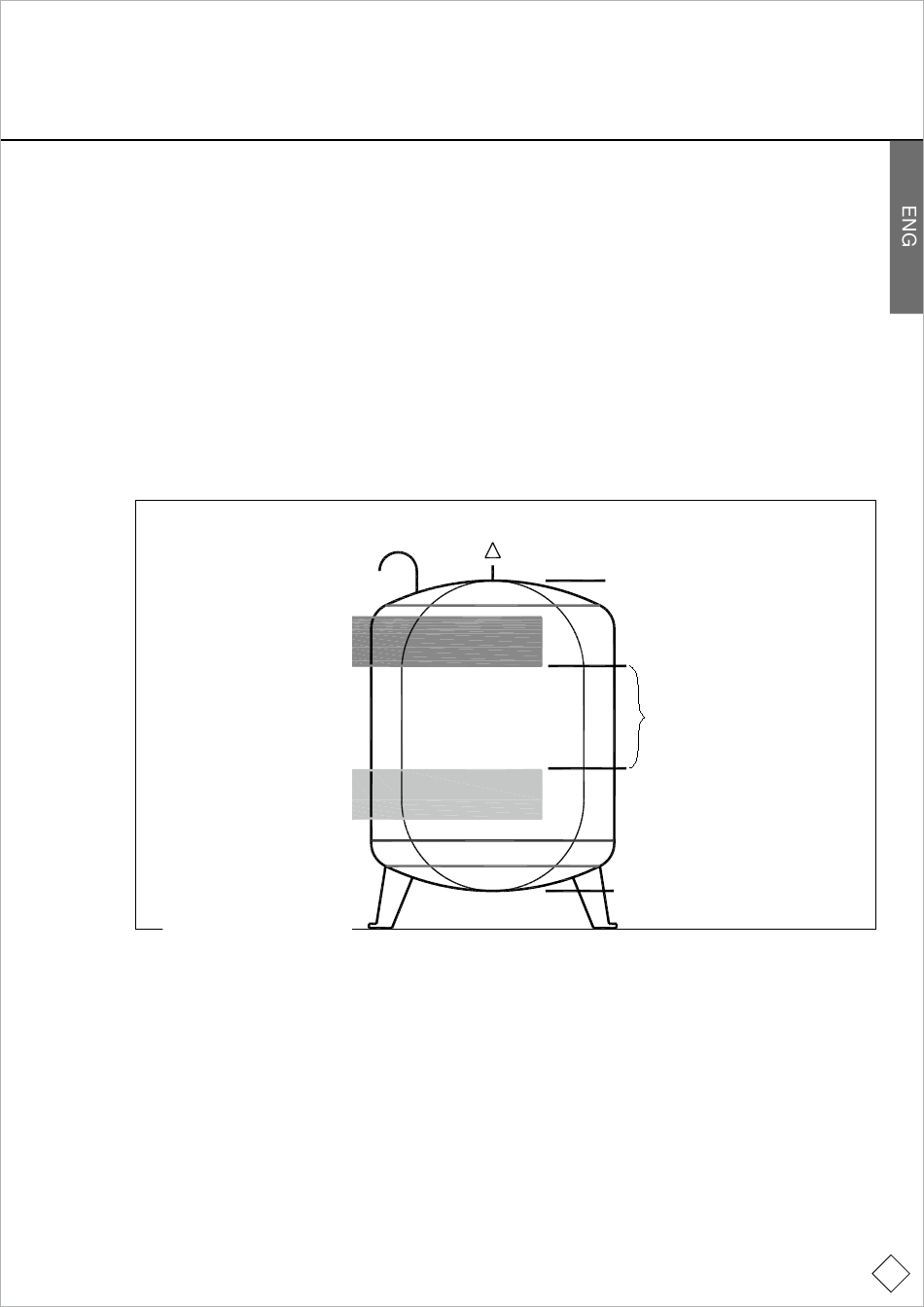

Level range and limits Flamcomat
(standard settings SPC)
94% drain limit ON
92% drain limit OFF
12% filling OFF
(incrasing level)
9% filling ON
(decreasing level)
0% filling ON
(increasing level)
Initial operation
* If discharge occurs quickly because, for example, the vessel is relatively small and the FMAT unit only serves a relatively small plant capacity, this can lead to the level dropping
below the lower shut-off limit, due to the slow response of the filling level measurement. This means that the discharge controller may shut down slightly below the specified
discharge controller shut-off limit.
100%
96% high limit alarm
Useable volume
6% water feed min.
5% Low limit alarm
0%
5
