SAVE THESE INSTRUCTIONS FOR FUTURE USE
Motor
Be sure your power supply agrees with the nameplate marking. Voltage decrease of more than
10% will cause loss of power and overheating. D
not operate, check power supply.

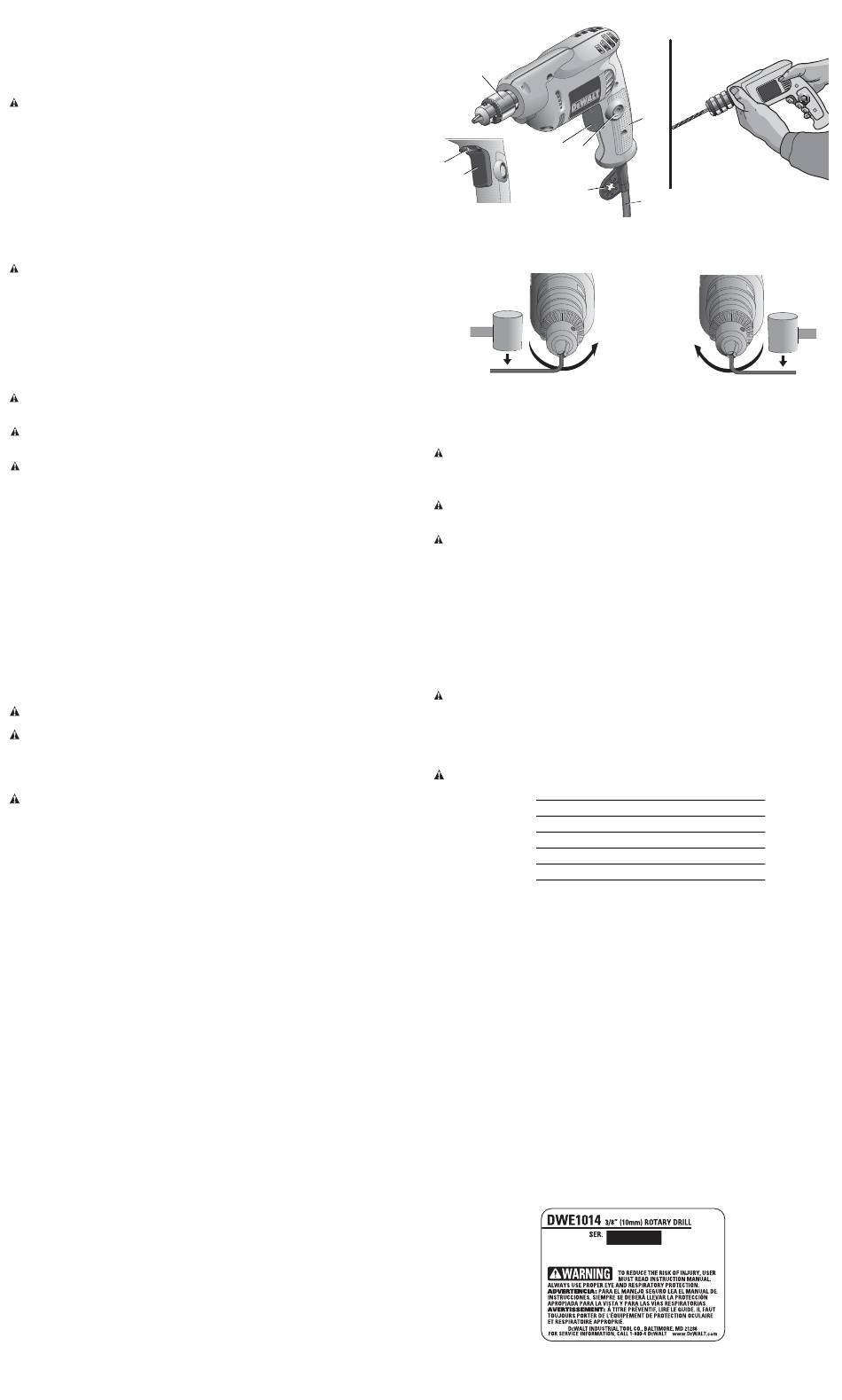

COMPONENTS (Fig. 1)
WARNING: Never modify the power tool or any part of it. Damage or personal injury could
result.
A. Variable speed trigger switch
B. Lock-on button
C. Forward/reverse button
D. Chuck
INTENDED USE
This heavy-duty V.S.R. drill is designed for professional drilling.
DO NOT use under wet conditions or in presence of flammable liquids or gases.
These heavy-duty drills are professional power tools.
DO NOT let children come into contact with the tool. Supervision is required when inexperienced
operators use this tool.

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of injury, turn unit off and disconnect it from power
source before installing and removing accessories, before adjusting or when making
repairs. An accidental start-up can cause injury.
Forward/Reverse Lever (Fig. 1)
The forward/reverse lever (C) is used for withdrawing bits from tight holes and removing screws.
It is located above the trigger switch.
To reverse the motor, release the trigger switch FIRST and then push the lever to the right
(viewed when holding the drill in the operating position).
After any reversing operations, return lever to forward position.
OPERATION
WARNING: To reduce the risk of injury, turn unit off and disconnect it from power
source before installing and removing accessories, before adjusting or when making
repairs. An accidental start-up can cause injury.
WARNING: To reduce the risk of personal injury, ALWAYS ensure workpiece is anchored
or clamped firmly. If drilling thin material, use a wood "back-up" block to prevent damage to the
material.
WARNING: Do not attempt to tighten or loosen drill bits (or any other accessory) by gripping
the front part of the chuck and turning the tool on. Damage to the chuck and personal injury
may occur.
Trigger Switch (Fig. 1)
To start the drill, depress the trigger switch; to stop the drill, release the trigger switch.
NOTE: Use lower speeds for starting holes without a center punch, drilling in metal or plastics,
driving screws or drilling ceramics. Higher speeds are better for drilling wood and composition
boards and using abrasive and polishing accessories.
VARIABLE SPEED
A variable speed trigger switch (A) permits speed control—the farther the trigger is depressed,
the higher the speed of the drill.
For continuous operation, depress fully and hold the variable speed trigger switch, press the
lock-on button (B) in, then release the switch.
Do not lock the switch on when drilling by hand so that you can instantly release the trigger
switch if the bit binds in the hole.
The lock-on button (B) is for use only when the drill is mounted in a drill press stand or otherwise
held stationary.
To stop continuous operation, press the switch briefly and release it. Always switch the tool off
when work is finished and before unplugging.
Proper Hand Position (Fig. 1, 2)
WARNING: To reduce the risk of serious personal injury, ALWAYS use proper hand position
as shown in Figure 2.
WARNING: To reduce the risk of serious personal injury, ALWAYS hold securely in
anticipation of a sudden reaction.
Proper hand position requires one hand under the the housing, with the other hand on the main
handle (G).
Drilling
WARNING: To reduce the risk of personal injury, ALWAYS ensure workpiece is anchored
or clamped firmly. If drilling thin material, use a wood "back-up" block to prevent damage to the
material.
1. Use sharp drill bits only. For WOOD, use twist drill bits, spade bits, power auger bits, or hole
saws. For METAL, use steel twist drill bits or hole saws.
2. Always apply pressure in a straight line with the bit. Use enough pressure to keep drill biting,
but do not push hard enough to stall the motor or deflect the bit.
3. Hold tool firmly with both hands to control the twisting action of the drill.
4. IF DRILL STALLS, it is usually because it is being overloaded or improperly used.
RELEASE TRIGGER IMMEDIATELY, remove drill bit from work, and determine cause
of stalling. DO NOT CLICK TRIGGER ON AND OFF IN AN ATTEMPT TO START A
STALLED DRILL — THIS CAN DAMAGE THE DRILL.
5. To minimize stalling or breaking through the material, reduce pressure on drill and ease the
bit through the last fractional part of the hole.
6. Keep the motor running when pulling the bit back out of a drilled hole. This will help prevent
jamming.
7. With variable speed drills there is no need to center punch the point to be drilled. Use a slow
speed to start the hole and accelerate by squeezing the trigger harder when the hole is deep
enough to drill without the bit skipping out.
DRILLING IN METAL
Start drilling with slow speed and increase to full power while applying firm pressure on the tool.
A smooth even flow of metal chips indicates the proper drilling rate. Use a cutting lubricant when
drilling metals. The exceptions are cast iron and brass which should be drilled dry.
NOTE: Large [5/16" (8 mm) to 1/2" (13 mm)] holes in steel can be made easier if a pilot hole
[5/32" (4 mm) to 3/16" (5 mm)] is drilled first.
DRILLING IN WOOD
Start drilling with slow speed and increase to full power while applying firm pressure on the tool.
Holes in wood can be made with the same twist drills used for metal. These bits may overheat
unless pulled out frequently to clear chips from the flutes. Work that is apt to splinter should be
backed up with a block of wood.
Keyed Chuck (Fig. 1, 3, 4)
The DWE1014 features a keyed chuck (D).
TO INSERT A DRILL BIT OR OTHER ACCESSORY
1. Open the chuck jaws by turning collar by hand and insert the shank of the bit about 19 mm
(3/4") into chuck. Tighten the chuck collar by hand.
2. Place chuck key in each of the three holes, and tighten in clockwise direction. It's important
to tighten chuck with all three holes.
To release the bit, turn the chuck counterclockwise in just one hole, then loosen the chuck by
hand.
REMOVAL OF KEYED CHUCK (FIG. 3)
Tighten the chuck around the shorter end of a hex key. Using a soft hammer, strike the key
sharply in the counterclockwise direction when viewed from the front of the tool. This will loosen
the chuck so that it can be removed by hand.
WALT tools are factory tested; if this tool does
E
E. Cord protector with key holder
F. Cord set
G. Main handle
FIG. 1
D
A
B
C
A
E
FIG. 3
KEYED CHUCK INSTALLATION (FIG. 4)
Screw the chuck on by hand as far as it will go. Insert the shorter end of a hex key and strike it
in the clockwise direction with a soft hammer.
MAINTENANCE
WARNING: To reduce the risk of injury, turn unit off and disconnect it from power
source before installing and removing accessories, before adjusting or when making
repairs. An accidental start-up can cause injury.
Cleaning
WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week.
To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when
performing this.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts
of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth
dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse
any part of the tool into a liquid.
Motor Brushes
D WALT uses an advanced brush system which automatically stops the drill when the brushes
E
wear out. This prevents serious damage to the motor. New brush assemblies are available at
authorized D WALT service centers. Always use identical replacement parts.
E
Lubrication
Self-lubricating bearings are used in the tool and periodic relubrication is not required. In the
unlikely event that service is ever needed, take your tool to an authorized service location.
Accessories
WARNING: Since accessories, other than those offered by D
with this product, use of such accessories with this tool could be hazardous. To reduce the risk
of injury, only D WALT recommended accessories should be used with this product.
E
Recommended accessories for use with your tool are available at extra cost from your local dealer
or authorized service center. If you need assistance in locating any accessory, please contact
D WALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286, call 1-800-4-D
E
(1-800-433-9258) or visit our website: www.dewalt.com.
CAUTION: To reduce the risk of injury, the following accessories should be used only in sizes
up to the maximums shown in the table below.
MAXIMUM RECOMMENDED CAPACITIES
CHUCK CAPACITY
BITS, METAL DRILLING
WOOD, FLAT BORING
Repairs
To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including
brush inspection and replacement) should be performed by a D
a D WALT authorized service center or other qualified service personnel. Always use identical
E
replacement parts.
Three Year Limited Warranty
D WALT will repair, without charge, any defects due to faulty materials or workmanship for
E
three years from the date of purchase. This warranty does not cover part failure due to normal
wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit
www.dewalt.com or call 1-800-4-D WALT (1-800-433-9258). This warranty does not apply to
E
accessories or damage caused where repairs have been made or attempted by others. This
warranty gives you specific legal rights and you may have other rights which vary in certain
states or provinces.
In addition to the warranty, D WALT tools are covered by our:
E
1 YEAR FREE SERVICE
D WALT will maintain the tool and replace worn parts caused by normal use, for free, any time
E
during the first year after purchase.
90 DAY MONEY BACK GUARANTEE
If you are not completely satisfied with the performance of your D
Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt
for a full refund – no questions asked.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products
sold in Latin America, see country specific warranty information contained in the packaging, call
the local company or see website for warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are
missing, call 1-800-4-D WALT (1-800-433-9258) for a free replacement.
E
