The '68 Customs have become an extremely popular amp
series for guitarists who love classic Fender sounds along with
toneful modifications that resonate with today's players.
The '68 Custom Pro Reverb takes its cues from the original
40-watt model, improving its portability and tonal flexibility
by reducing the cabinet size and weight, moving to a single-
channel format and single 12" speaker, and adding a middle
tone control. This refined and upgraded amp is the perfect
size and volume for almost any gig, and may be the ultimate
pedal-friendly platform.
• Modified Pro Reverb all-tube circuitry
• Single channel with versatile tone controls and bright switch
• Reduced negative feedback for greater touch sensitivity
A. INPUTS: Connect instruments here. Input 1 produces full
sensitivity; input 2 has lower sensitivity (-6dB) for cleaner
response with high-output and pre-amplified instruments.
B. BRIGHT: Provides a high-frequency boost which tapers off as
VOLUME (C) is increased.
C. VOLUME: Controls overall volume level.
D. TREBLE: Adjusts high-frequency tonal character.
E. MIDDLE: Adjusts mid-frequency tonal character.
F. BASS: Adjusts low-frequency tonal character.
'68 CUSTOM PRO REVERB™
Register your '68 Custom Pro Reverb online at start.fender.com.

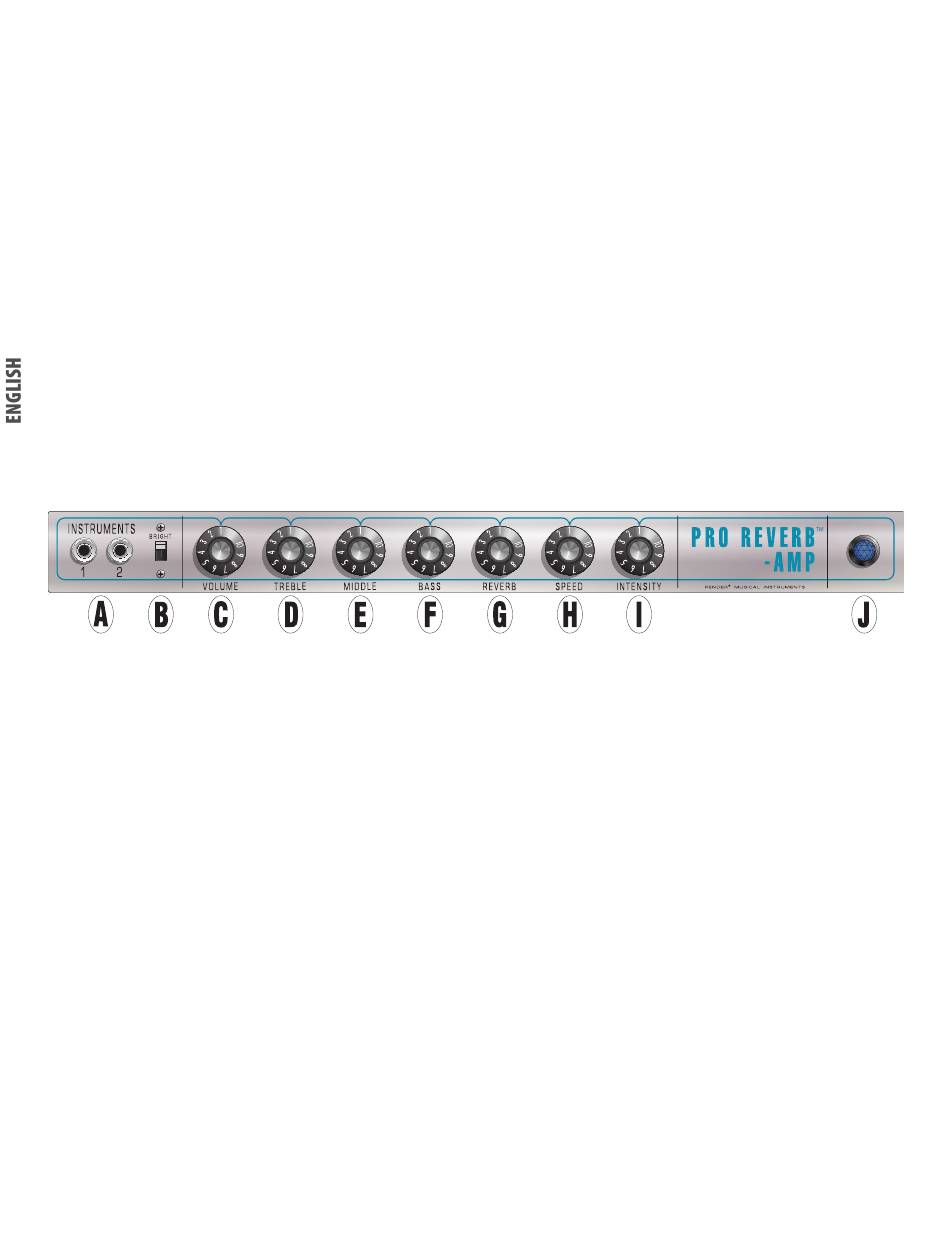

CONTROL PANEL

1
• Two 6L6GC output tubes
• Three 12AX7A preamp tubes and two 12AT7 preamp tubes
• Hand-wired tube sockets
• Custom-made Schumacher transformers (like the originals)
• 40 watts output power
• 12" Celestion® Neo Creamback speaker for expressive tones
and reduced weight
• Genuine Fender tube-driven spring reverb
• Genuine Fender tube-driven tremolo ("vibrato")
• 1968-style Silver Panel cosmetics with aluminum trim
around silver-turquoise grille cloth
• Vintage-style two-button reverb/vibrato foot switch
• Fitted cover
G. REVERB: Controls reverb effect level. No reverb effect is heard
when this control is turned fully counterclockwise. Reverb can also
be turned on and off using the included two-button footswitch.
H. SPEED: Controls tremolo effect rate. Tremolo can also be turned
on and off using the included two-button footswitch.
I. INTENSITY: Controls tremolo effect depth. No tremolo effect is
heard when this control is turned fully counterclockwise.
J. POWER JEWEL: Illuminates while amplifier is on.
