P SHIFT button and indicators
Press this button for more than one second to select
the function of the POSITION buttons for positions
1 to 8 or positions 9 to 16.
The upper indicator lights for positions 1 to 8, and
the lower indicator for positions 9 to 16.
For the BRC-H900, BRC-H700, BRC-Z700 or
BRC-Z330 camera, hold down the SHIFT button
and press one of the POSITION buttons. The lower
indicator will light and you can use the POSITION
buttons for positions 9 to 16. If you release the
SHIFT button, the upper indicator will light and the
POSITION buttons can be used for positions 1 to 8.
Q L/R DIRECTION button
The camera is preset to face toward the right
whenever the joystick is inclined to the right. Hold
down this button and press POSITION button 2
(REV) to reverse the pan direction to the direction
in which you incline the joystick. To reset the
direction, hold down this button and press
POSITION button 1 (STD).
R POWER button
Press this button to light the CAMERA button(s)
corresponding to the status of the connected
camera(s).
Blue: The power of the camera is on.
Yellow green: The camera is in standby mode.
Off: No camera is connected.
Hold down this button and press CAMERA button
1 to 7 to turn on/off the power of the camera
corresponding to the pressed button.
S CAMERA buttons
Press one of the buttons to select the camera from
among those connected. The selected CAMERA
button lights in blue.
T POSITION buttons
You can store various camera settings such as the
pan, tilt and zoom positions to the memory of the
camera corresponding to each POSITION button,
and load the settings in the memory.
Functions of the POSITION buttons for
the EVI-D100/D100P and EVI-D70/D70P
cameras
When the EVI-D100/D100P or EVI-D70/D70P camera
is connected to this unit, the unit automatically detects
the camera model and the functions of positions 7 to 16
of the POSITION buttons change as in the following
table. This allows you the direct control of the camera
without connecting to a computer.
8
GB
Location and Function of Parts
POSITION Function
button
Position 7 Automatic Exposure – Full Auto mode
Position 8 Automatic Exposure – Bright mode
Position 9 Digital zoom – ON
Position 10 Digital zoom – OFF
Position 11 Auto White Balance mode
Position 12 Manual White Balance mode
Position 13 One Push White Balance mode
Position 14 Auto Tracing White Balance (ATW) mode
Position 15 IR Cut-Removable (ICR) – ON
Position 16 IR Cut-Removable (ICR) – OFF
For details on each function, refer to the Technical
Manual of the camera.

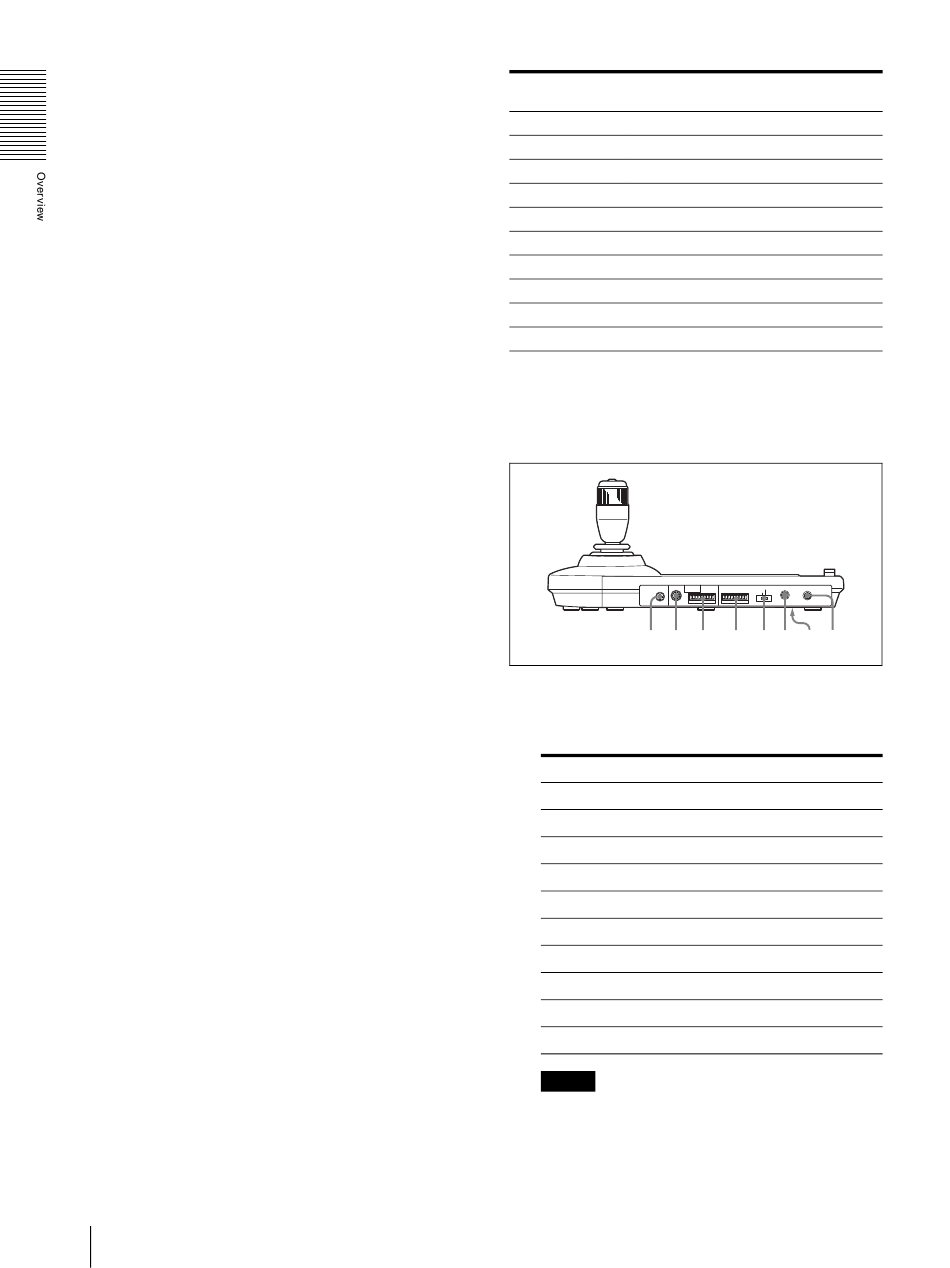

Rear/Bottom
MODE RS-232C
VISCA
wa ws wd wf wg wh wj wk
U MODE selector
Select the position corresponding to the VISCA-
controllable camera to be connected.
Switch position Camera mode
0 Automatically selected (default)
1 BRC-300/300P
2 EVI-D70/D70P
3 EVI-D100/D100P
4 EVI-D30/D30P
5 SNC-RZ30N/RZ30P
6 BRC-H700
7 BRC-Z700
8 BRC-Z330
9 BRC-H900
Notes
• Use position 1 to 9 when all the connected
cameras are of the same model. In other cases,
use position 0.
!
RS-422 TALLY/CONTACT CONTACT(TALLY) ON/OFF
TALLY
1 9 1 9
CONTACT DC IN 12V
