CAMSHAFT AND VALVES

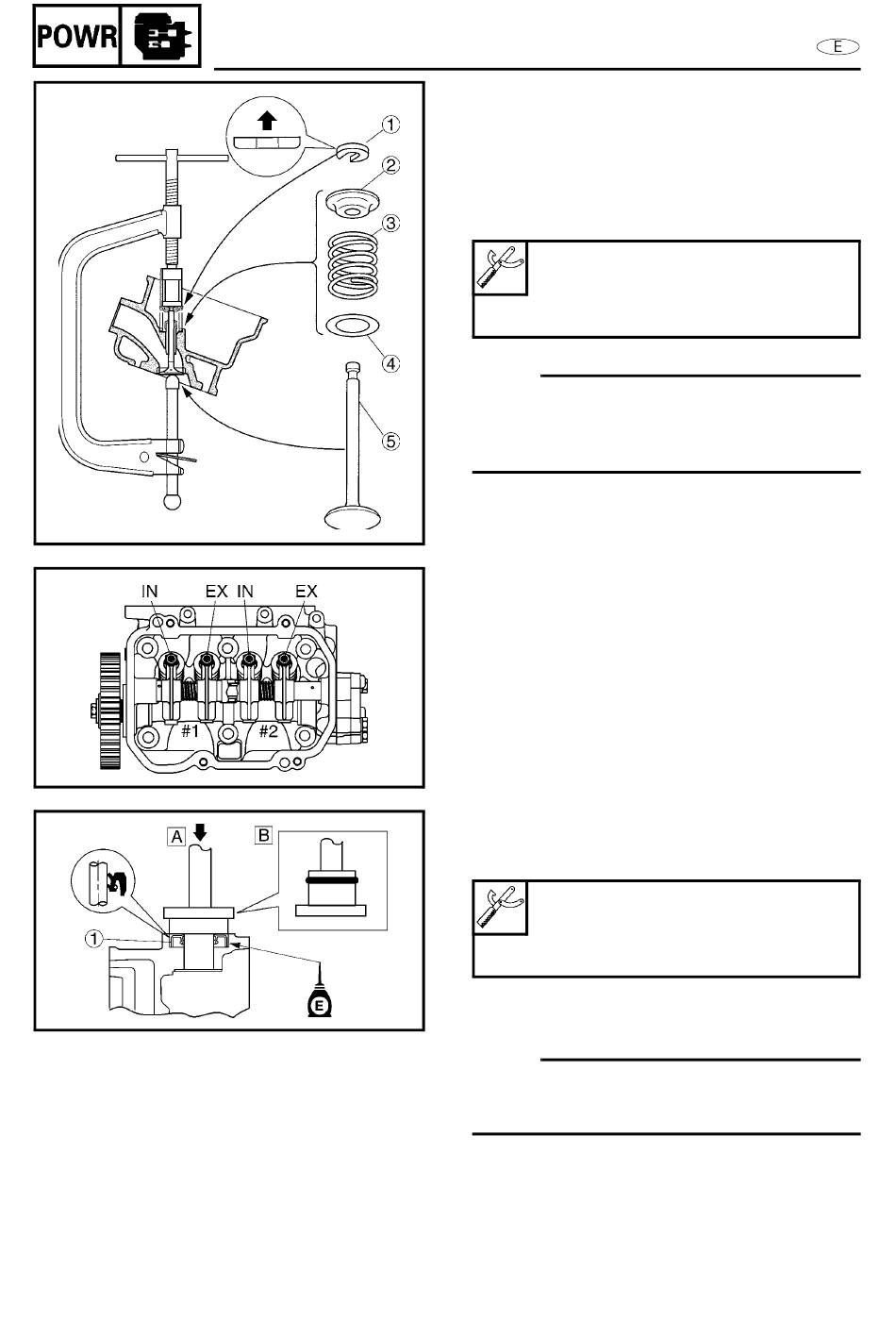

INSTALLING THE VALVE

Install:
Intake valve or exhaust valve 5


Valve spring seat 4


Valve spring 3


Valve spring retainer 2


Valve spring lock 1


Valve spring compressor:
YM-01253/90890-04019
Attachment:
YM-04108/90890-04108
NOTE:
Set the attachment on to the center of the


spring retainer.
Do not overtighten the valve spring


compressor.
INSTALLING THE CAMSHAFT OIL SEAL
Install:
Cam shaft oil seal 1


Driver rod:
YM-06229/90890-06652
Attachment:
YB-06197/90890-06653
A
For USA and Canada
B
Except for USA and Canada
NOTE:
Press fit the oil seal to the stepped portion
of the cylinder head and check that it is not
at an angle.
5-51
