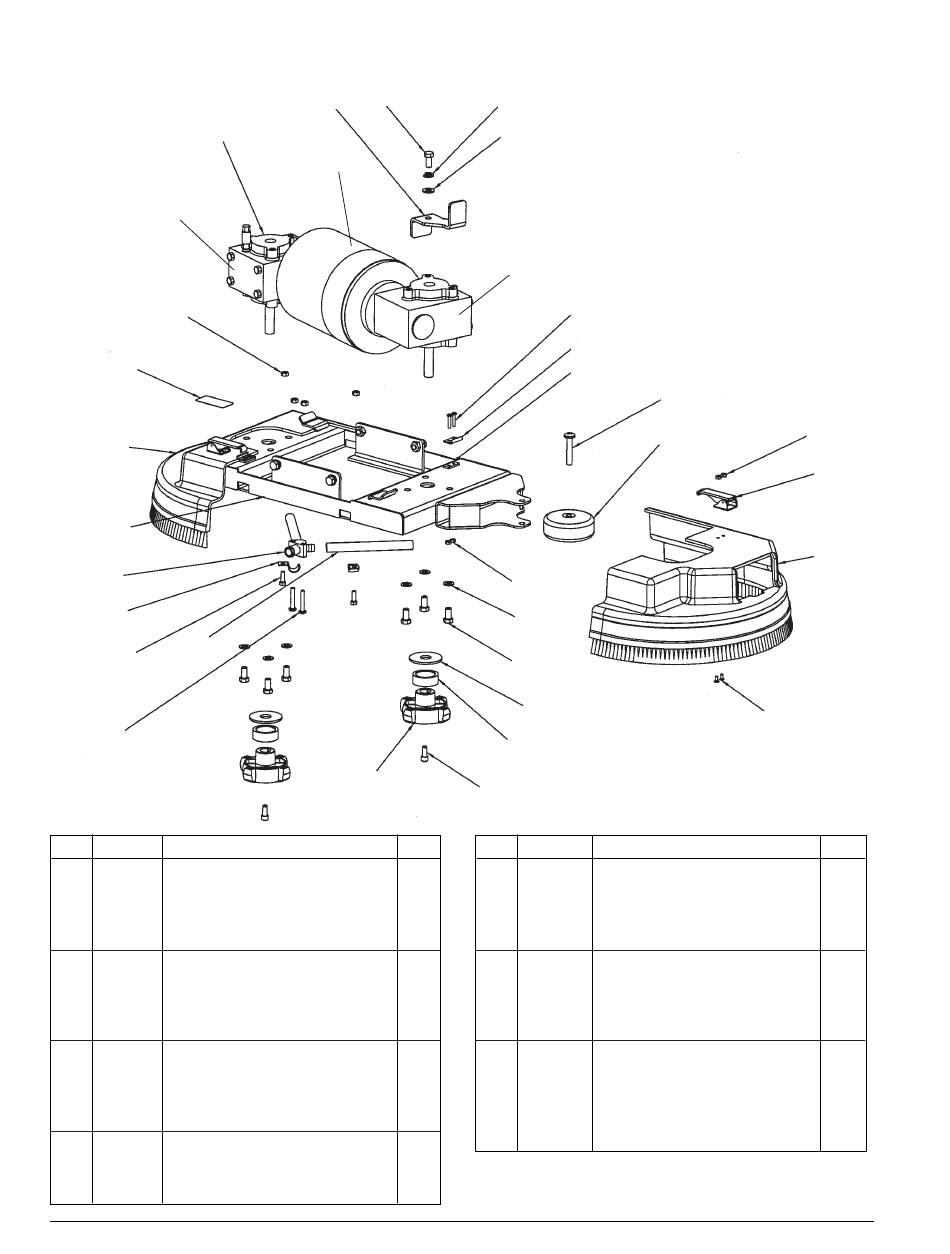

28" Rotary Brush Head Assembly Drawing And Parts List 9/07 - Clarke Focus 28” Disc iDrive Manuel D'utilisation

1, 1A
1C
28
29
27
26
25
24
22
23
21
NI = Not illustrated
Ref Part No. Description
1 40904B Motor, Dual Gear Box
1A 915102 Key
1B 40968A Carbon Brush/Spring Set (4 of ea.)
1C 41048A Gearbox Asm.
2 962244 Bolt, 3/8 - 16 x 3/4 Hex
3 170883 Washer, Lock 3/8
4 980645 Washer, 3/8 Flat
5 61722A Plate, Auto Side Squeegee
61497A Plate, Manual Side Squeegee
6 85613A Screw, 8 - 32 x 7/8 PH SS
7 55451A Keeper, Latch
8 61570A Spacer, Keeper
9 962803 Screw, 5/16-18 x 1 1/2 FH
10 53838A Wheel, Guide 4"
11 920108 Nut, 8 - 32 ESNA SS
12 55721A Latch, Brush Housing
13 30535A Housing, 28" Brush Right Main
14 962030 Screw, 8 - 32 x 3/8" FHCS
16 980638 Washer, 3/8 Lock
Page -116-
FOCUS Rider Scrubber

28" Rotary Brush Head Assembly Drawing and Parts List 9/07

Drawing #10697A
2
5
1B
20
Qty
1
2
1
2
12
2
2
1
1
4
2
2
1
1
4
2
1
4
10
®
Clarke
3
4
1C
6
7
8
30
16
2
17
18
19
.
Ref Part No. Description
17 59856A Washer, Rubber
18 61658A Collar, Brush Driver
19 962714 Screw, Gimbal Mount
20 34400B Gimbal, Motor
21 962989 Screw, 1/4 - 20 x 1 1/2 PH
22 34705A Hose, Solution
23 170915 Screw, 1/4 - 20 x 3/4 Hex HD
24 782002 Clamp, Manifold
25 38014A Splitter, Solution
26 61546A Frame, 28" Brush Motor
27 30536A Housing, 28" Brush Left Main
28 81104A Nut, 1/4 Nylock
29 77091A Label, Moving Parts
30 81109A Nut, 8-32 ESNA SS
NI 30536A Housing, 28" Left Brush
NI 30535A Housing, 28" Right Brush
®
Clarke
Operator's Manual -Focus Rider Scrubber
9
11
10
12
13
14
Qty
2
2
2
2
2
2
2
2
1
1
1
4
1
4
1
1
