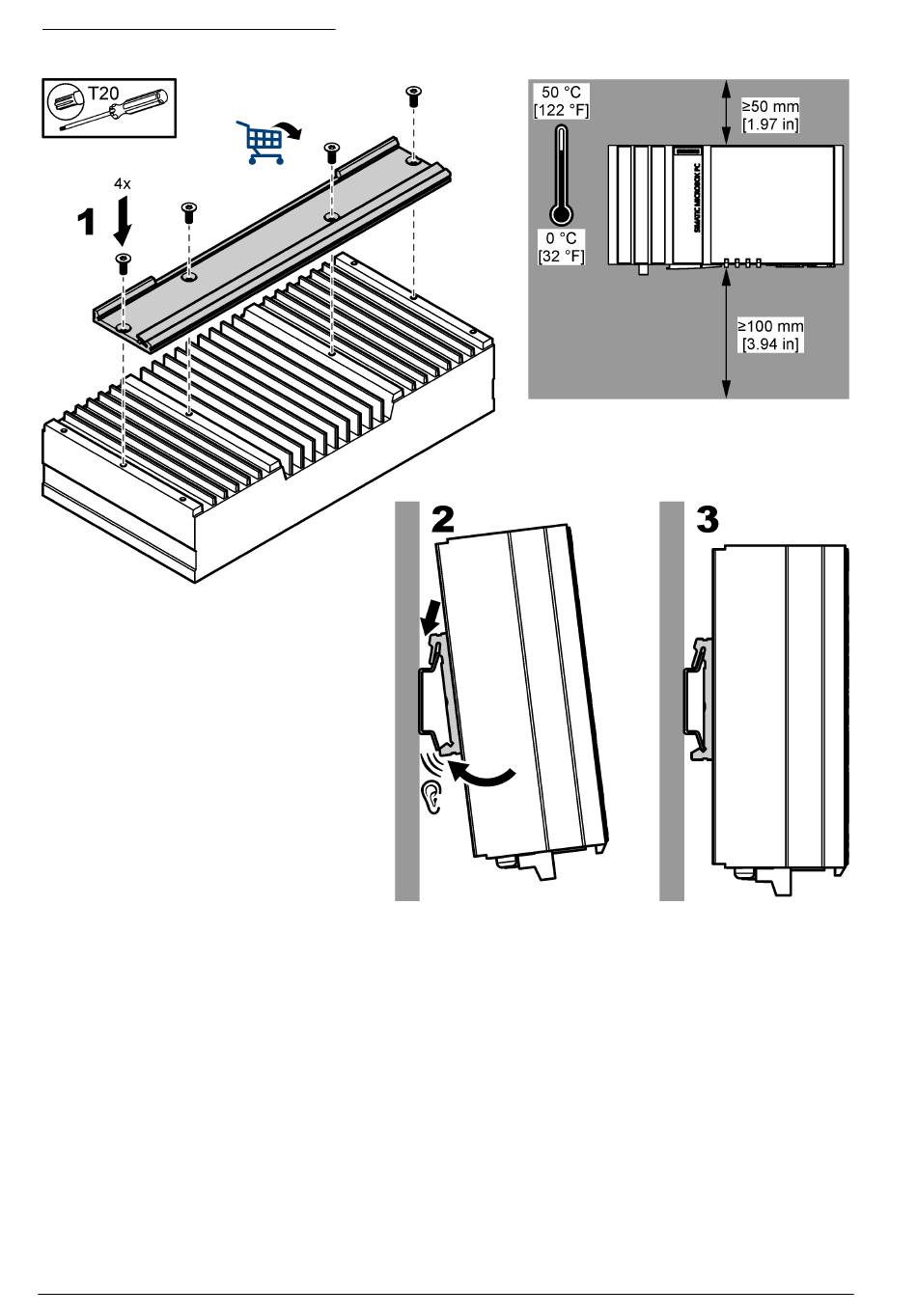

Figure 3 Installation on a DIN rail
IPC477 mounting
Make an opening in the control cabinet. For the correct cut out dimensions, refer to
Table 1
on page 6. To install the IPC477 XX" in the control cabinet, refer to the illustrated steps that follow
and
Figure
4.
