Electrical equipment marked with this symbol may not be disposed of in European domestic or public
disposal systems. Return old or end-of-life equipment to the manufacturer for disposal at no charge to
the user.
This symbol, when noted on the product, identifies the location of a fuse or current limiting device.
This symbol indicates that the marked item requires a protective earth connection. If the instrument is
not supplied with a ground plug on a cord, make the protective earth connection to the protective
conductor terminal.
IPC427E overview

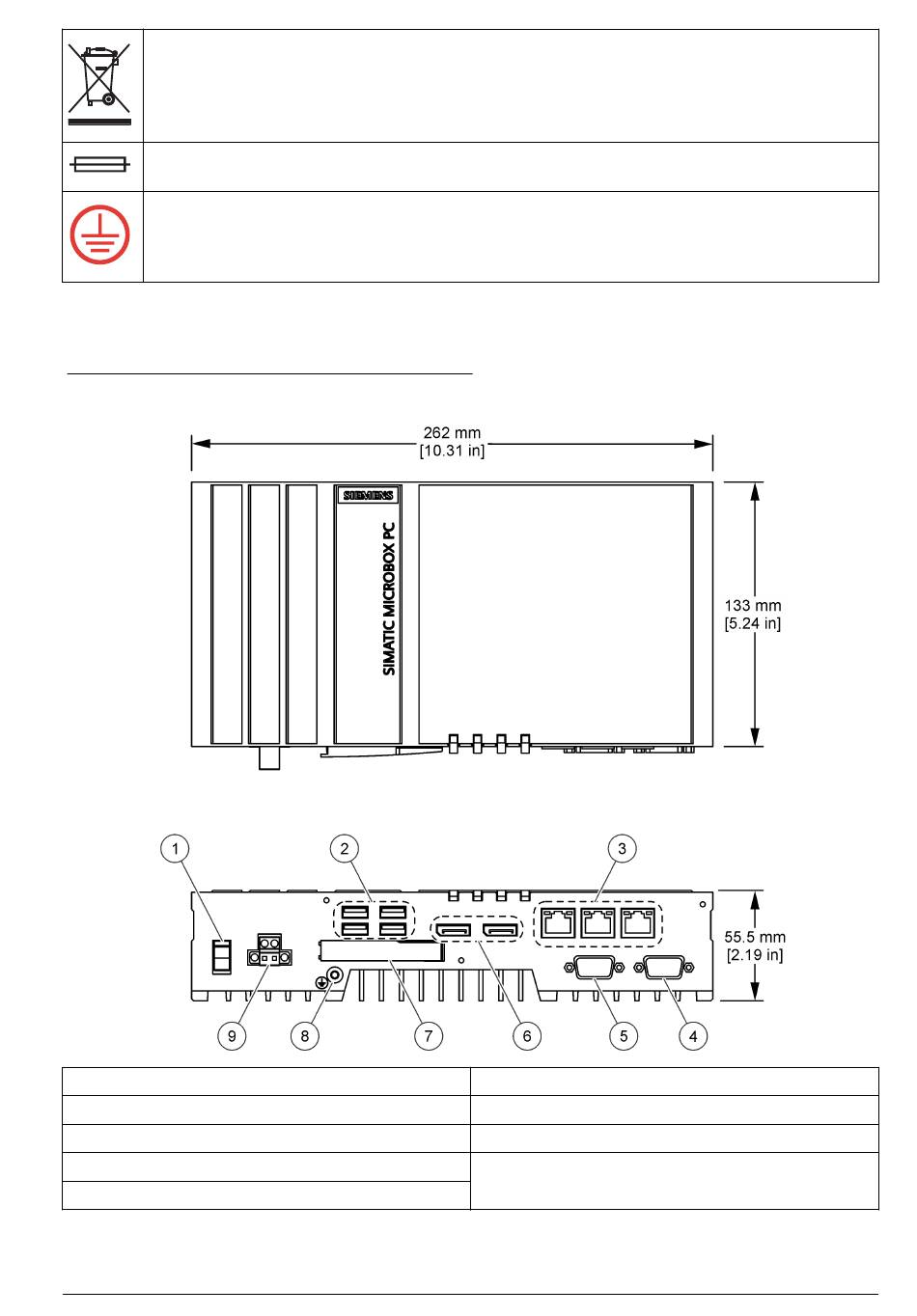

Figure 1 shows the IPC427E dimensions and connectors.
Figure 1 IPC427E dimensions and connectors
1 On / Off switch
2 USB connector (4x)
3 RJ45 Ethernet connector (3x)
4 COM2 serial connector (optional)
5 COM1 serial connector (optional)
6 Display connector (2x)
7 CFast card slot with cover
8 Protective earth connector
9 Power supply, 24 VDC
English 5
