CHANGING THE POSITION OF THE CONTROL PANEL CHANGING THE POSITION OF THE CONTROL PANEL
By default, the vertical radiator's control panel is positioned on the
right (wall-mounted appliance).
On this model, you have the option to position the panel on the left.
To do so, carry out the following operations:
Operations to be performed with the power off, radiator flat
and facing downwards with its blocks moved 5 cm out.
Use the key supplied with the radiator.

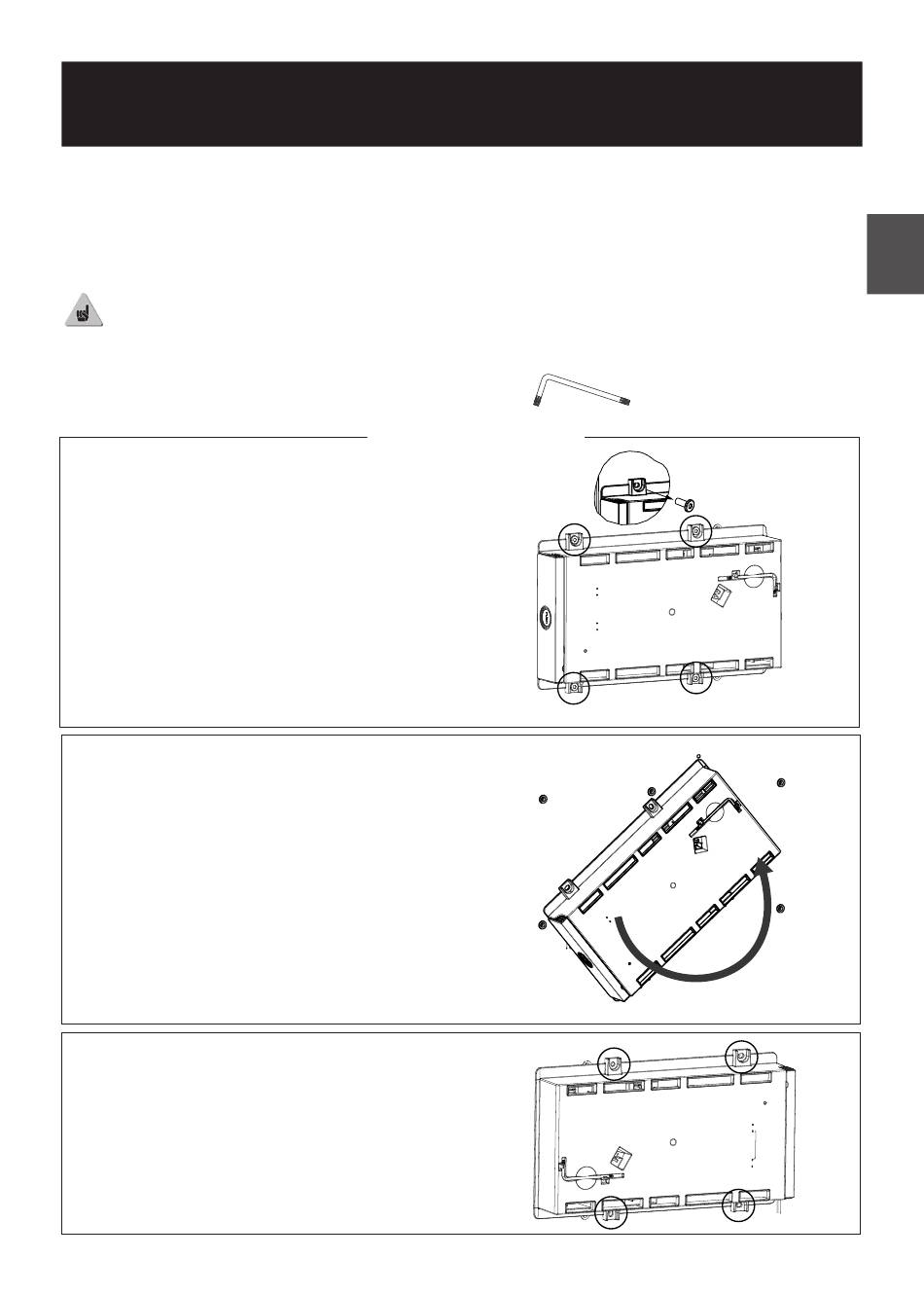

 Remove and keep the 4 mounting
screws from the rear of the control
panel bracket.
 Swivel the panel bracket a half-
turn to the right and downward.
 Mount the panel bracket using
the 4 screws.
