Delta R2707 Mode D'emploi page 7

A.
B.

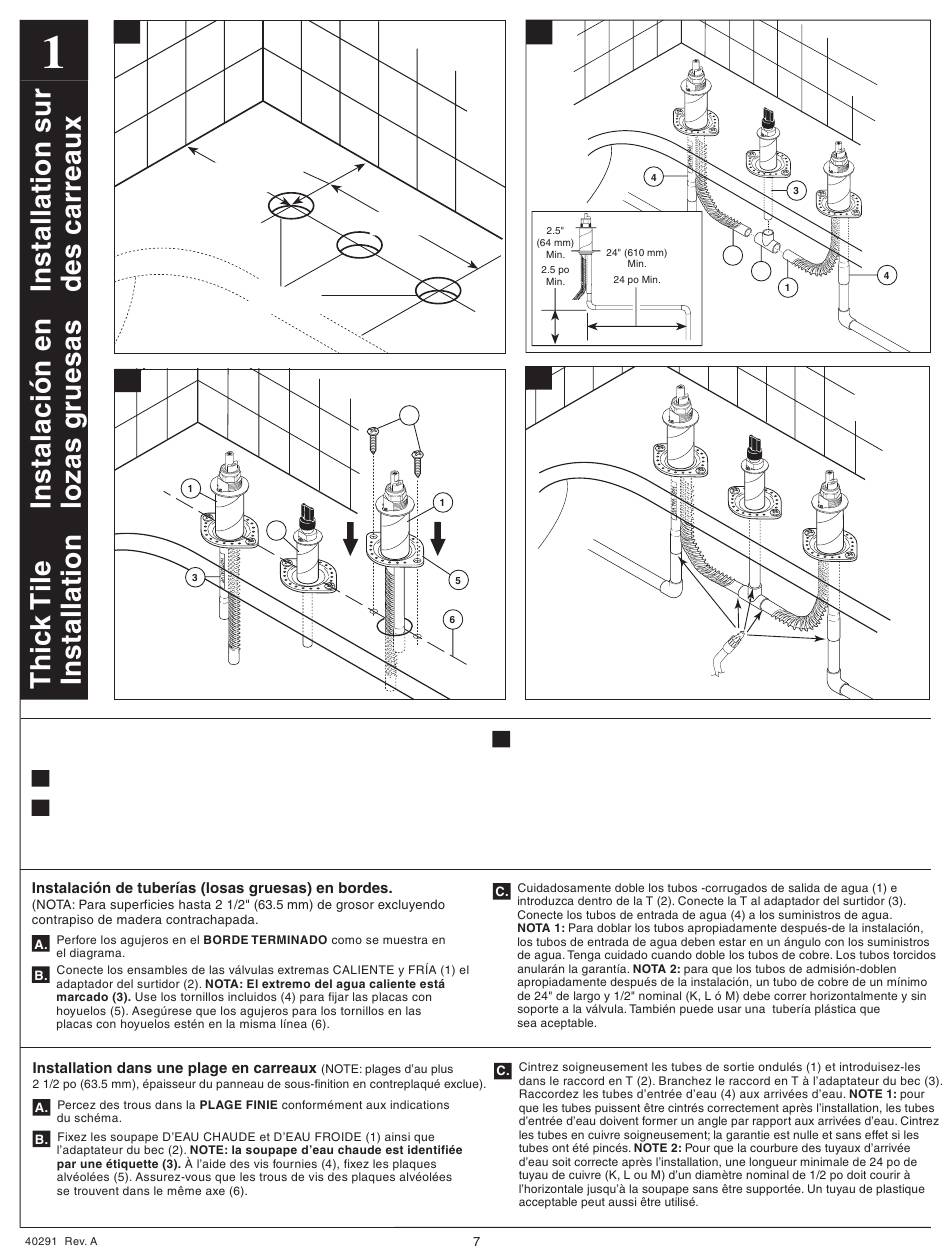

Rough Deck (Thick Tile) Installation
up to 2 1/2" (63.5 mm) thick excluding plywood underlayment.)
Drill holes in FINISHED DECK per diagram.
A.
Attach HOT and COLD end valve assemblies (1) and spout adapter
B.
assembly (2). NOTE: Hot side end valve is labeled (3). Use enclosed
screws (4) to attach dimpled plates (5). Make sure-screw holes in dimpled
plates are along the same line (6).
3" min.
(7.6 cm)
5" min.
(12.7 cm)
8"- 16"
(20.3-40.6 cm)
2" (51 mm)
2
(NOTE: Intended for surfaces
C.
D.
4
Carefully bend corrugated outlet tubes (1) and insert into tee (2). Connect
C.
tee to spout adapter (3). Connect inlet tubes (4) to water supplies.
NOTE 1: For tubes to bend properly after installation, water inlet tubes
must be at an angle to the water supplies. Be careful bending the copper
tubes. Kinked tubes will void warranty. NOTE 2: For inlets to bend properly
after installation, a minimum 24" length of 1/2" nominal copper tube
(K, L or M) must run horizontal and unsupported to the valve. Acceptable
plastic pipe may also be used.
1
2
