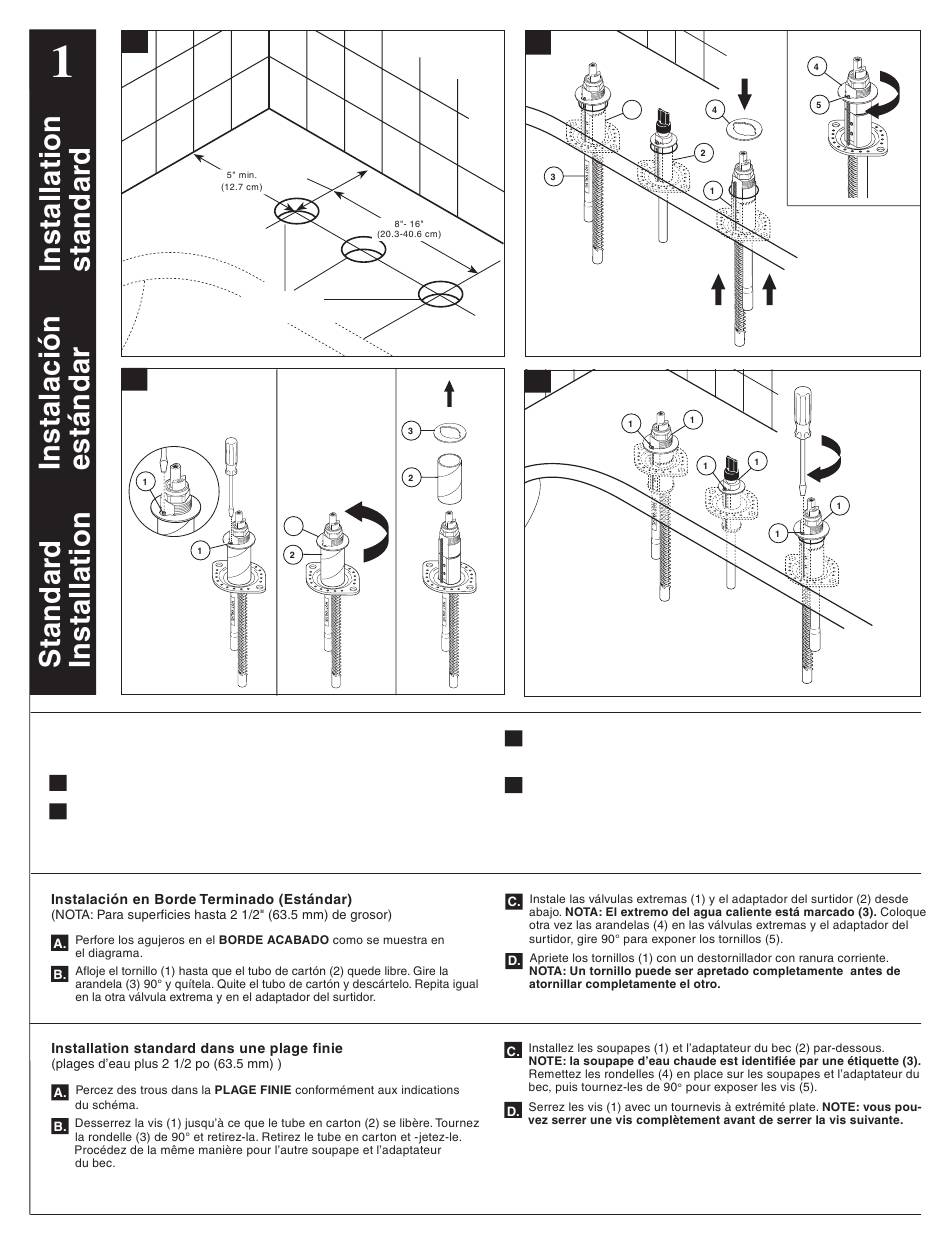

Finished Deck (Standard) Installation
(NOTE: Intended for surfaces up to 2 1/2" (63.5 mm) thick.)
Drill holes in FINISHED DECK per diagram.
A.
Loosen screw (1) until cardboard tube (2) is free. Rotate washer (3) 90°
B.
and remove. Remove cardboard tube and discard. Repeat for the other end
valve and spout adapter.
40291 Rev. A
3" min.
(7.6 cm)
1- 1/2" (38 mm)
3
C.
1
D.
Install end valves (1) and spout adapter (2) from below. NOTE: Hot side
C.
end valve is labeled (3). Replace washers (4) on end valves and spout
adapter, rotate 90° to expose screws (5).
Tighten screws (1) with a regular slotted screwdriver. NOTE: One screw
D.
can be fully tightened before the other screw is tightened.
