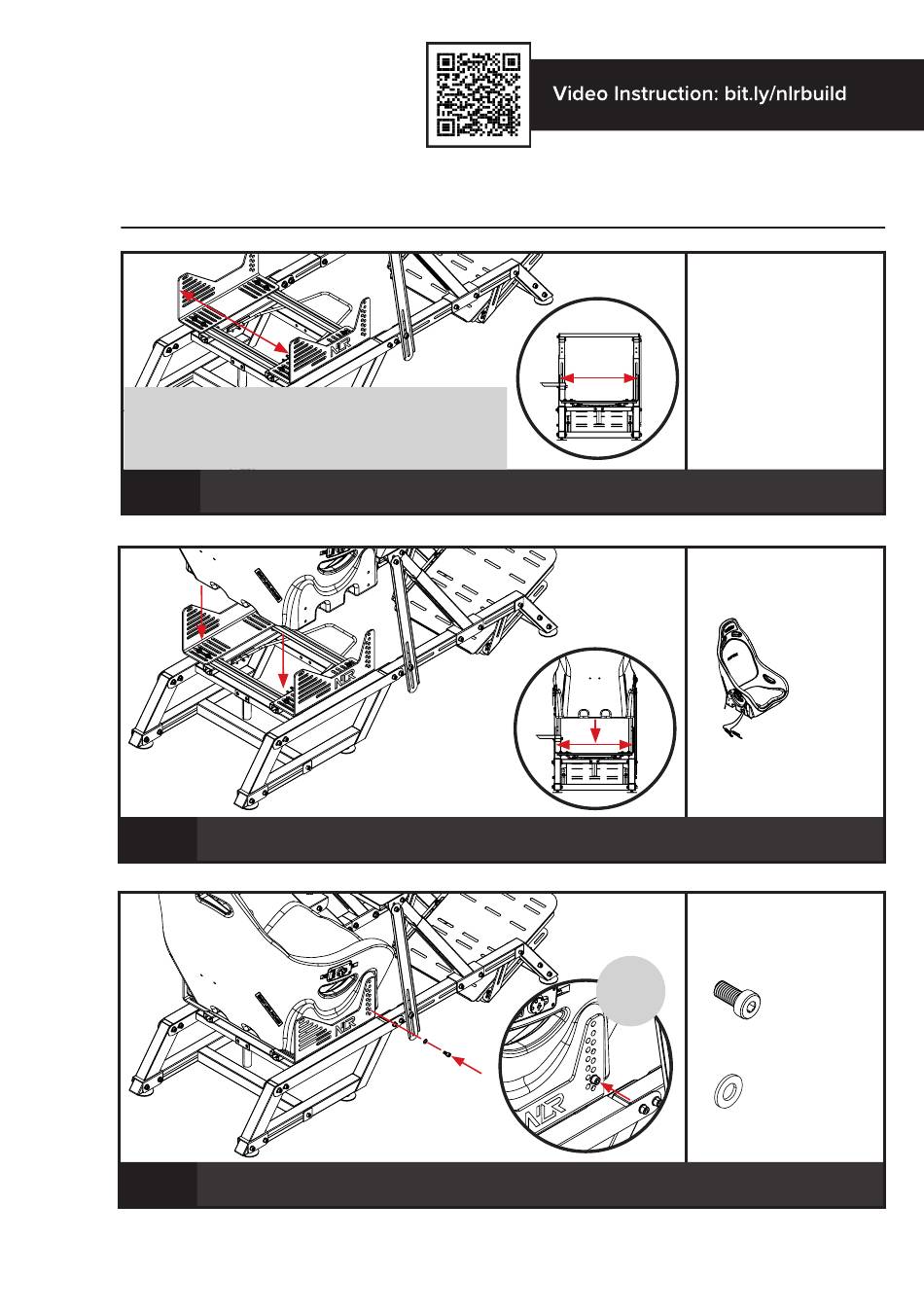

6.3 NLR F-GT Assembly
NOTE: F-GT Frame only (Double Slider) - Remove existing seat from brackets, then
continue with installation of ES1 Haptic Seat.
NOTE: F-GT Cockpit (Seat included with Single Slider) - Remove existing F-GT Seat, install
universal seat bracket (Sold separately), then continue with installation of ES1 Haptic Seat.
15
Check internal Seat Brackets width 500mm .
16
Confirm fit of Seat with position of Seat Brackets.
17
Install front M8 Bolt and Washer through Seat Bracket into seat inserts. Repeat on other side.
Repeat
on Other
Side
19
PARTS:
• • NIL
PARTS:
• • 1 x ES1 Haptic Seat
PARTS:
• • 2 x M8 16mm
Low Profile Bolts
• • 2 x M8 Washer
