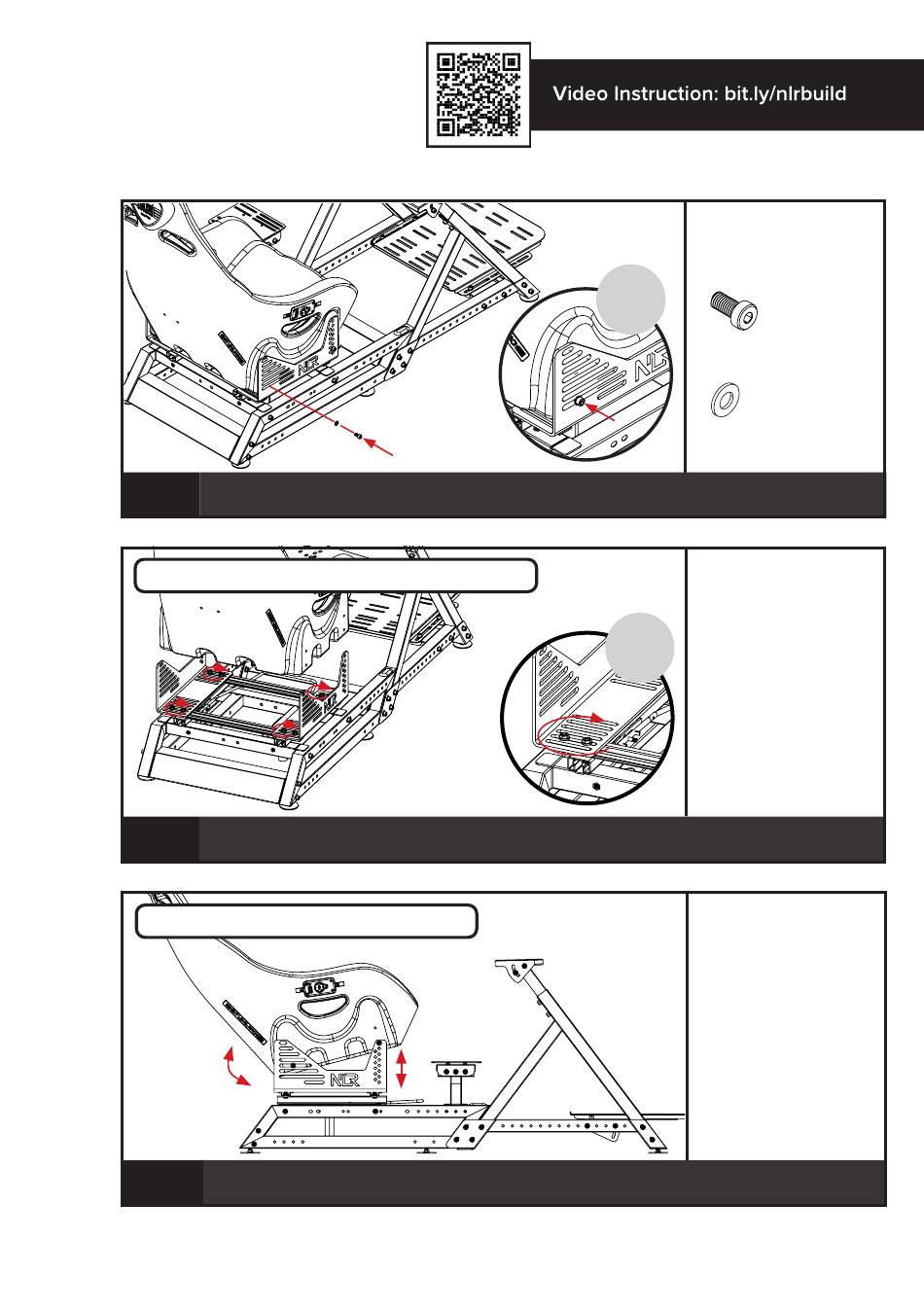

Next Level Racing ES1 HAPTIC Manuel D'instructions page 17

11
Install rear M8 Bolt and Washer through Seat Bracket into seat inserts. Repeat on other side.
FORWARD AND BACKWARD ADJUSTMENT
Adjust the Seat to the desired distance from pedals. Secure the Bolts connecting the Seat
12
Brackets to the Base Members.
ANGLE AND HEIGHT ADJUSTMENT
For angle and height adjustment use the variety of mounting holes and slots provided on the
13
Seat Brackets.
Repeat
on Other
Side
Repeat
on Other
Side
17
PARTS:
• • 2 x M8 16mm
Low Profile Bolts
• • 2 x M8 Washer
PARTS:
• • NIL
PARTS:
• • NIL
