2 Integrate the EKRTETS temperature sensor in an electrical
conduit (’16 mm maximum) in the floor construction as
shown below.
Make sure to seal the temperature sensor electrical conduit
to protect the thermostat from hot air currents and to allow
the replacement of the temperature sensor.

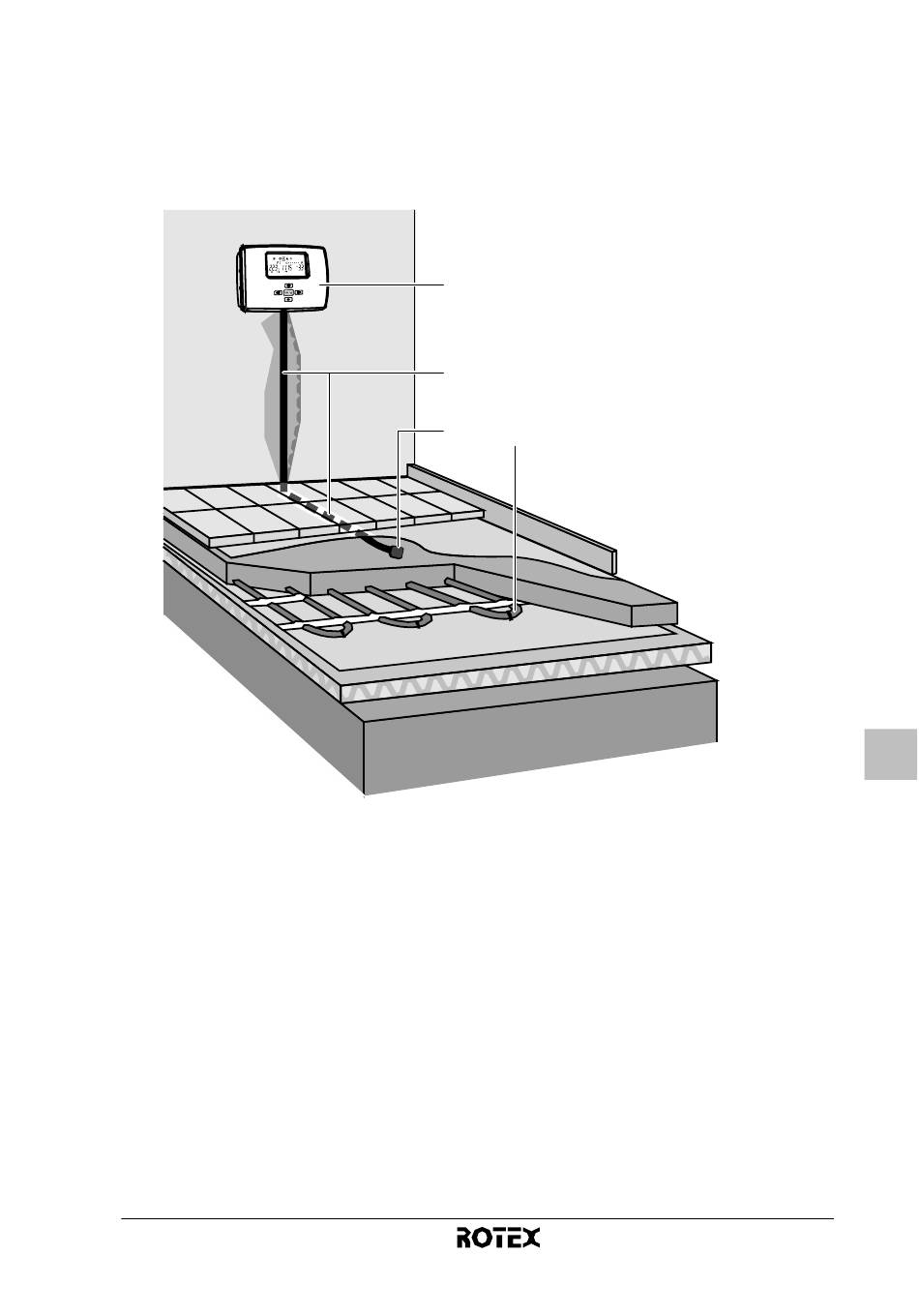

1
Thermostat
2
Temperature sensor conduit (Ø16 mm maximum)
3
Temperature sensor EKRTETS (in conduit with seal)
4
Water pipes
3 Pass the temperature sensor cable through the conduit until
it reaches the seal.
RKRTR + EKRTETS
Room thermostat
4PW56107-1
