APPENDIX 2 : PPR30 PIN-PAD ACCESSORY

This accessory may be connected to the USB host link of the EFTsmart.
PPR30 reader PIN-PAD

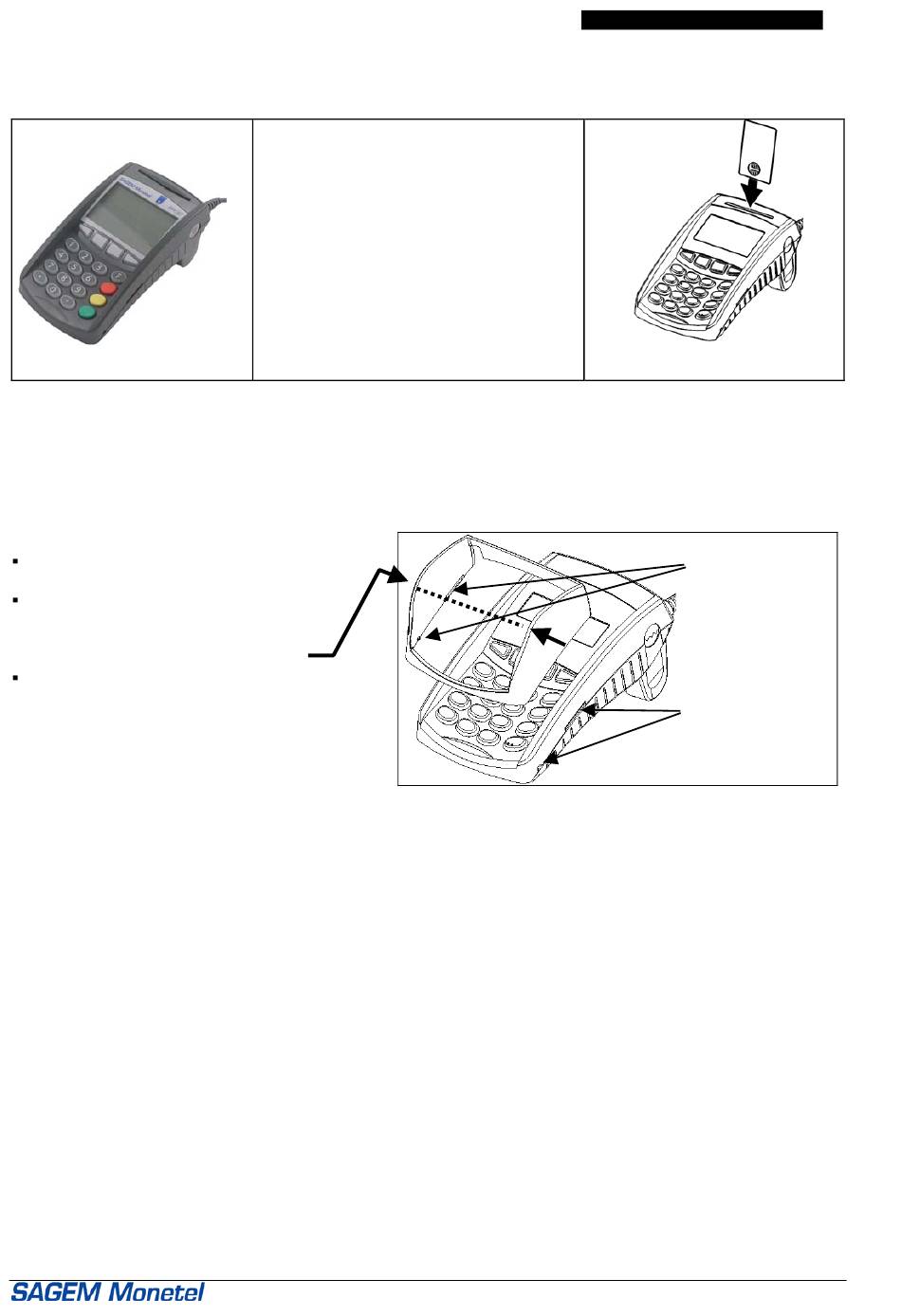

Installing the shield:
To install the shield, clip the 4 embossed lugs into the corresponding 4 recesses.
Position the shield in front of the PINPAD.
To make for easier insertion,
slightly squeeze on the tops
of the side panels.
Gently push the shield until it clips into the 4
points.
Physical Characteristics
Mass
Dimension
Cable length
Operating conditions
Ambient temperature
Max relative humidity.
Storage conditions
Storage temperature
Max relative humidity
4 navigation keys
F key
Red key
Yellow key
Green key
: approximately 285 g
: approximately 159 x 90 x 73 mm (L x w x h)
: approximately 1,1 m
: from +5°C to +45°C
: 85% at +40°C
: -20°C, +65°C
: 95% at +55°C
page 36 / 40
: FUNCTION key
: CANCEL key
: CORRECT key
: VALIDATE key
INSTALLATION MANUAL
Card introduction
direction
Two embossed
lugs on either side
of the shield (on
the inside)
Two recesses on
either side of the
PINPAD
3300039745 R11 000 04/735
