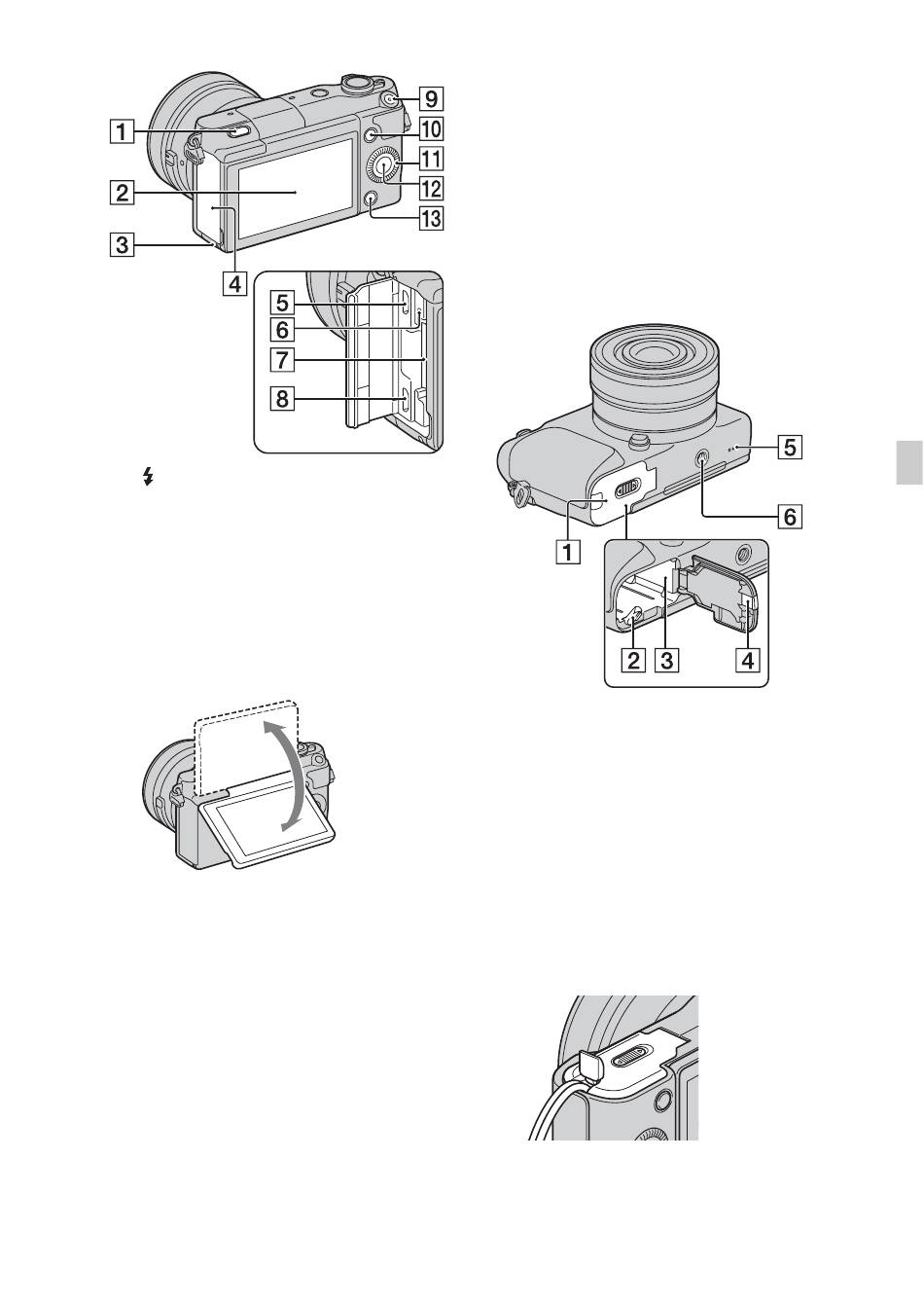

A
(Flash pop-up) button
B LCD screen
You can adjust the LCD screen to
an easily viewable angle, such as
for a low-position shooting. Tilt the
LCD screen upward about
180 degrees when you take a self-
portrait.
• Depending on the tripod, you
may not be able to adjust the
angle of the LCD screen. In such
a case, loosen the screw of the
tripod once and adjust the angle
of the LCD screen.
C Access lamp (19)
D Memory card/terminal cover
E Multi/Micro USB Terminal
Supports Micro USB compatible
device.
F Charge lamp
G Memory card insertion slot (18)
H HDMI micro jack
I MOVIE button (24)
J Soft key A (29)
K Control wheel (28)
L Soft key C (29)
M Soft key B (29)
A Battery cover (11)
B Lock lever (11, 15)
C Battery compartment (11)
D Connection plate cover
Use this when using an AC-PW20
AC Adaptor (sold separately).
Insert the connection plate into the
battery compartment, and then pass
the cord through the connection
plate cover as shown below.
• Make sure that the cord is not
pinched when you close the
cover.
GB
GB
9
