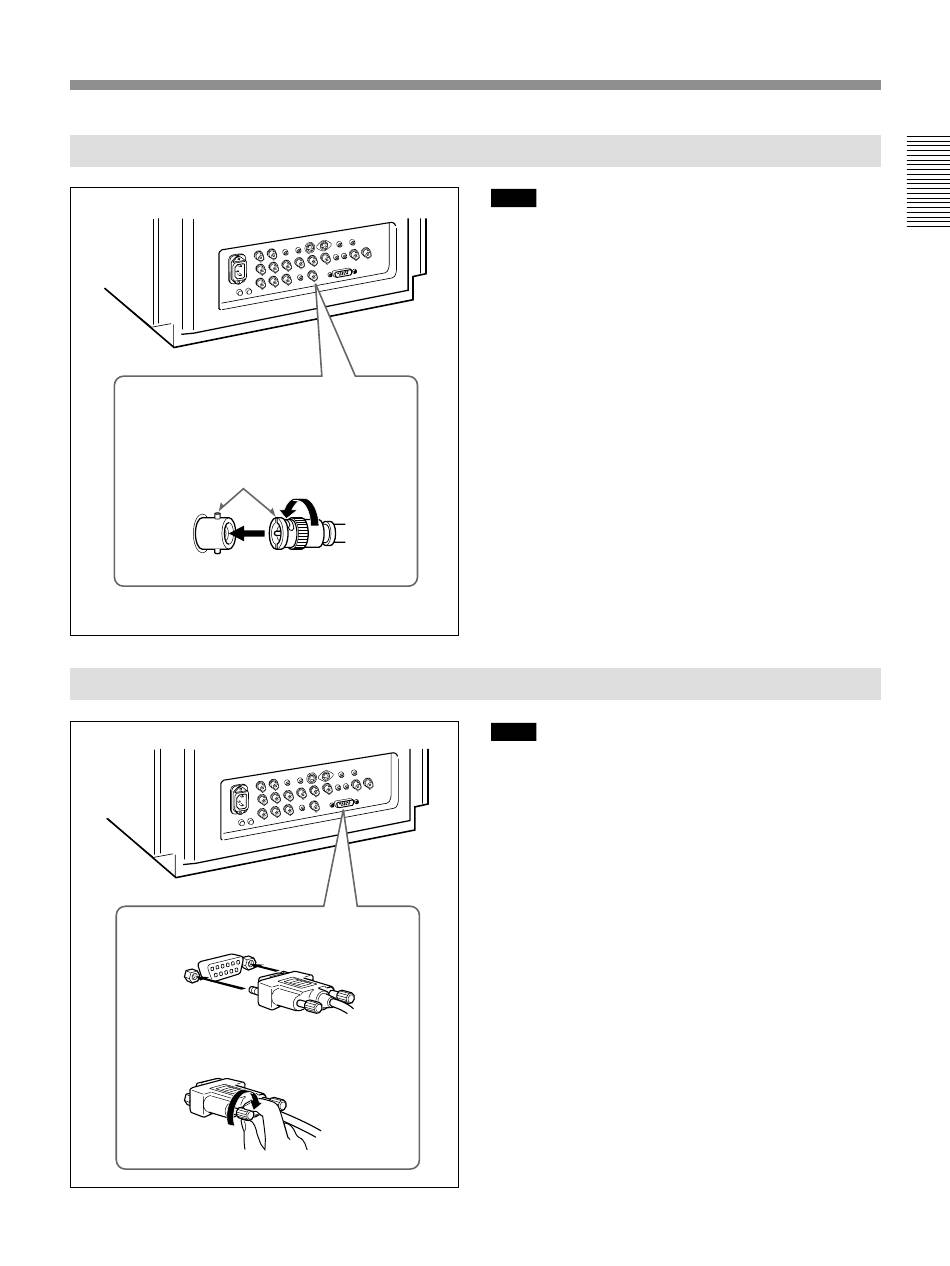

Connecting a Cable to the BNC Connector

Insert the connector into the BNC
connector on the rear panel, matching
the slit and pin, and turn the cable
BNC connector clockwise to secure
the BNC connector of a coaxial cable.

Connecting a Cable to the RS-232C Connector

1
2
Note
Before connecting the video equipment, see
"Important safeguards/notices for use in the
medical environments" on page 2.
Connect a coaxial cable with the BNC connectors to
the BNC connectors on the rear panel as illustrated.
Note
Before connecting the video equipment, see
"Important safeguards/notices for use in the
medical environments" on page 2.
1
Align the plug and socket carefully.
2
Push fully in and tighten the screws by hand.
To disconnect the plug
Loosen the screws, and pull out the plug.
