CONNECTION 6
Composantes requises:
2 Diodes 1 Amp**
2 Fusible 5 Amp
1 Relais
1 Résistance 1Kohms**
Components required:
2 Diodes 1 Amp**
2 5 Amp fuse
1 Relay
1 Resistor 1Kohms**
Purple/White | Mauve/Blanc
Yellow/Black | Jaune/Noir
Blue/White | Bleu/Blanc
Green | Vert
Pink | Rose
CAUTION | ATTENTION*
N.C.
Black | Noir
DO NOT CONNECT
THE PINK WIRE UNTIL
THE UNIT HAS BEEN
PROGRAMMED.
Pink wire, 1K ohms
resistor and diode are
NOT REQUIRED IN
D2D MODE.
**
•
•
The door lock option is required because the doors can't unlock with factory remote
when the engine is running.
L'option des portes à verrouillage électrique est requise car les portes ne peuvent pas
se déverrouiller avec les télécommandes d'origine lorsque le moteur est en marche.
Connect to ignition(+) at the fuse box
Connectez à Ignition
Relay 1a
Light Green
Relay 1b
Orange/Brown
Orange/Green
Relay 2a
Relay 2b
Brown
+12V
•
Connect at brake switch only.
•
Branchez au commutateur de frein seulement.
FUNCTIONALITY
The remote starter must be programmed for DIESEL MODE (Wait to Start) in order for the Brake pedal to be
activated at least 5 seconds before remote start. It is normal that the brake lights turn on before remote start.
Once the vehicle is started, the PKALL will automatically shut down the engine once the (-) While running
(status) is removed. This feature can be bypassed simply by pressing the UNLOCK button on the remote starter
transmitter once the engine is running, thus allowing the driver 45 seconds to enter the vehicle and step on the
brake pedal without having the vehicle shut down.
NOTE: If the vehicle is remote started with the SMART-KEY inside the vehicle, the PKALL will not shut down the
engine once the (-) While running (status) is removed.
Back view | Vue de derrière
ENGINE
START
STOP
Rx (Data In)
Tx (Data Out)
(-)While running (status)
Start - Stop
NE PAS BRANCHER
LE FIL ROSE AVANT
D'AVOIR
PROGRAMMÉ LE
MODULE.
Fil Rose, résistance
1K ohms et diode:
NON REQUIS EN
MODE D2D.
(+)
à la boîte à fusible
Must be fused 5 Amp.
Un fusible 5 Amp doit
être installé.

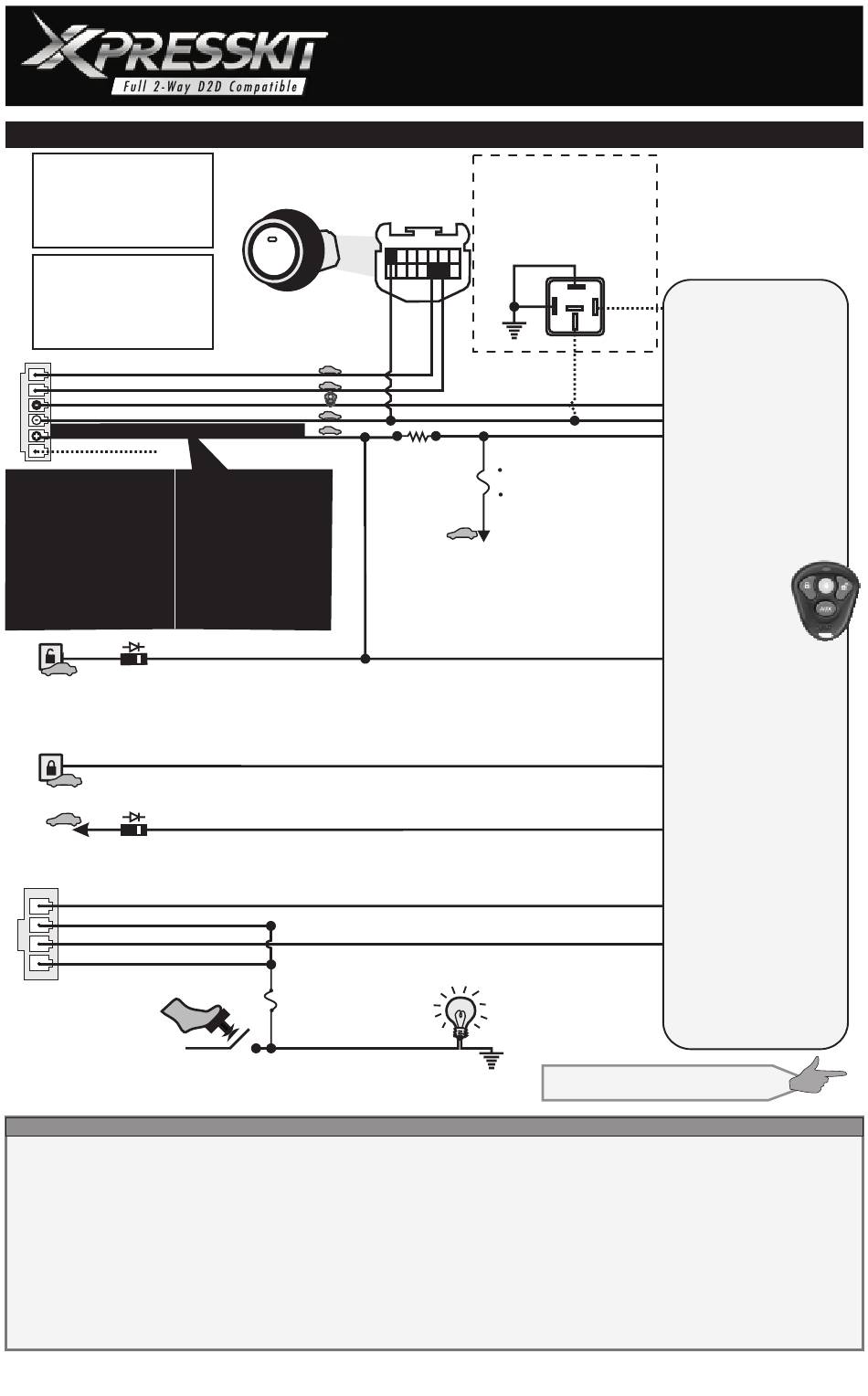

SUGGESTED INSTALLATION FOR LEXUS WITH SMART KEY
•
Only if remote starter
does not have (-) Starter
out.
•
Seulement si le
démarreur n'a pas
sortie Start neg.(-)
7
6 5 4 3
2
1
14 13 12 11
10
9
8
1K ohms**
Must be fused 5 Amp.
Un fusible 5 Amp doit
être installé.
+12V Battery | +12V Batterie
BRAKE LIGHT
LUMIÈRE DE FREIN
PKALL
DATA IMMOBILIZER OVERRIDE
85 87
86
87a
START (+)
30
(-)
WHILE RUNNING (STATUS)
(-) MASSE D'ACTIVATION
START (-)
+12V Battery
+12V Batterie
REMOTE
STARTER
DÉMARREUR
À DISTANCE
UNLOCK (-)
DÉVERROUILLAGE (-)
LOCK (-)
VERROUILLAGE (-)
IGNITION 1 (+)
IGNITION 2 (+)
BRAKE (+)
FREIN (+)
English go: Programming #3 (P.16)
Français voir: Programmation #3 (P.16)
P.7
