Cleaning And Maintenance - Bimar Vt7-30B Notice D'instructions

2. Fasten the rear grid (4) to the motor casing, verify that the handle
appears in the back (as shown) and lock using the appropriate ring
nut (3).
3. Insert the fan (10) on the motor shaft (5) and lock with the
appropriate ring nut (12) turning it tightly anti-clockwise.
4. Couple the front grid (1) to the rear grid (4), blocking with the ring
perimeter plastic; and secure it with the screw with nut, (11) must
be in the lower part. Having done this, check that the protection
grid is firmly coupled and fastened to the motor.
USE
Insert the plug of the fan in the power supply.
Ventilation: select the desired speed with the selector (9).
1 – Minimum speed 2 – Medium Speed 3-Maximum speed
To turn the fan off, press the "0" key and then remove the plug from the socket.
Horizontal oscillation (right-left): this is selected with the button (6) located on the motor
body. To stop the motion and keep the ventilator still, press the button.

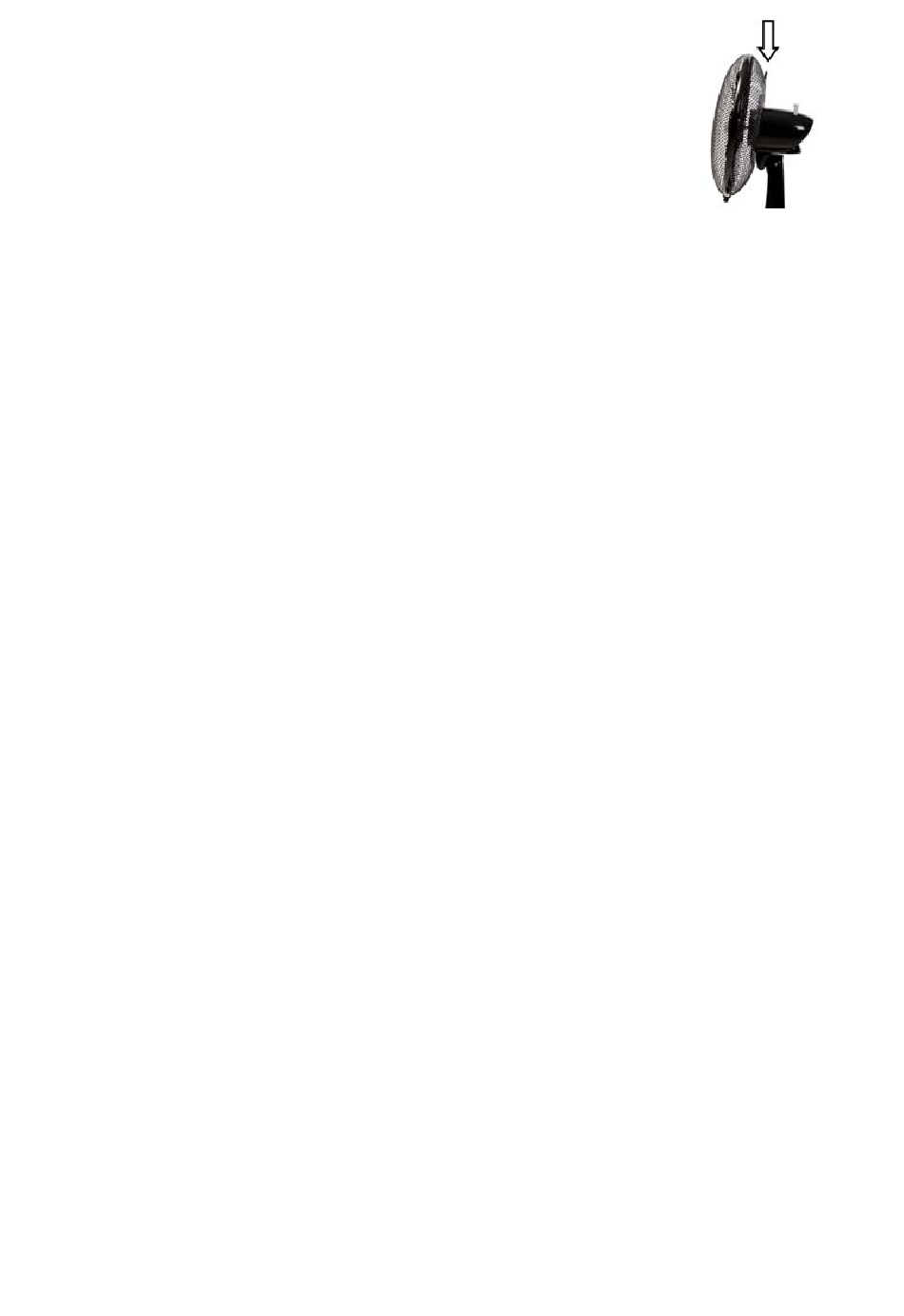

Vertical inclination (high-low): it is regulated by gripping the motor body and orienting it in
the direction desired; you will hear "click" that indicate the fan's various position.
When not in use for long periods, the plug must always be removed from the socket.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket.
• Ensure that the fan is switched off from the supply mains before removing the guard.
• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not
put your hand in the liquid, but first remove the plug from the socket. Carefully dry the
appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for
professionally qualified help.
• It is essential that the motor's air holes be kept from dust and lint.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we
recommend storing it in its original packaging.
• Should you decide not to use the appliance any more, we recommend making it inoperative
by cutting the power cord (after making sure you have disconnected the plug from the
socket) and make dangerous parts harmless if children are allowed to play with them (such
as the blade).
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE
WITH EC DIRECTIVE 2011/65/EC.
At the end of its working life, the product must not be disposed of as urban waste. It must be taken
to a special local authority differentiated waste collection centre or to a dealer providing this
service. Disposing of a household appliance separately avoids possible negative consequences for
the environment and health deriving from inappropriate disposal and enables the constituent
materials to be recovered to obtain significant savings in energy and resources. As a reminder of
the need to dispose of household appliances separately, the product is marked with a crossed-out
wheeled dustbin.
12/28
