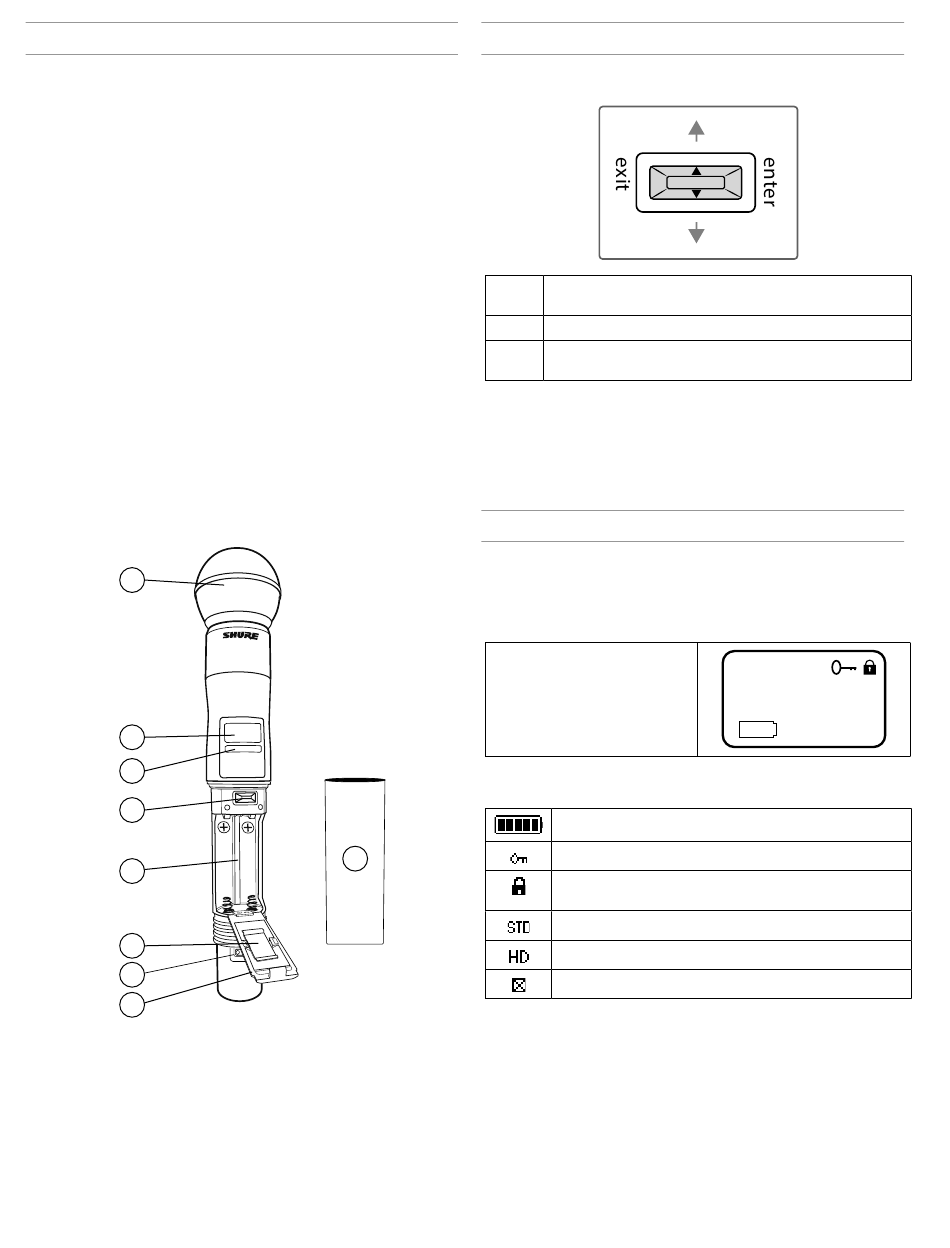

AD2 Transmitter Overview
① Microphone Cartridge
See Optional Accessories for a list of compatible cartridges.
② Display
View menu screens and settings. Press any control button to activate
the backlight.
③ Infrared (IR) Port
Align with the receiver IR port during an IR Sync for automated
transmitter programming.
④ Menu Navigation Buttons
Use to navigate through parameter menus and change values.
⑤ Battery Compartment
Requires Shure SB900A rechargeable battery or 2 AA batteries.
⑥ AA Battery Adapter
Remove to accommodate a Shure SB900A battery.
⑦ On/Off Switch
Powers the unit on or off.
⑧ Battery Door
Latch to secure batteries.
⑨ Handle
Unscrew to access controls and batteries.
1
2
3
4
5
6
7
8
Transmitter Controls
Use to navigate through parameter menus and change values.
exit
enter
∨∧
Tip: Use the following shortcuts for quick setup:
• Hold the ∧ button while powering on to lock or unlock the transmitter
controls.
• Hold the exit button while powering on to enter the Safe Start menu.
Home Screen Display
The home screen shows transmitter information and status.
There are four pieces of information that you can choose to see on
the home screen. Use the arrow buttons to select one of the following
choices:
• Name
• Frequency Setting
• Group (G) and Channel (C)
• Device ID
The following icons indicate transmitter settings:
9
7
Acts as a 'back' button to return to previous menus or pa-
rameters without confirming a value change
Enters menu screens and confirms parameter changes
Use to scroll through menu screens and to change parame-
ter values
Battery runtime in hours and minutes or bar display
Key: Displayed when encryption is enabled
Lock: Displayed when controls are locked. Icon will flash if
access is attempted to a locked control (power or menu).
STD: Standard Transmission Mode
HD: High Density Transmission Mode
RF Mute Engaged: Displayed when RF output is muted
Shure
470.200
MHz
7:45
