• Antimortar cap designed to be used also as template during the installation of the wall support base.
• Regenerative heat exchanger with ceramic core (G) with high thermal efficiency, equipped with washable anti-dust filters (H).
• External grille (I) made of high quality, impact and UV-resistant ABS, colour RAL 9010, with anti-insect net and water drip guard.
• Infra-red remote controller with touch technology, LCD display and wall base supplied as standard. Made from ABS, RAL 9010.
• The unit is double insulated: no earth connection is required.
• No need of condensation drainage system.
• IPX4 degree of protection.
• Power supply 220-240V~ 50/60Hz.
OPERATION THROUGH INFRARED REMOTE CONTROL (supplied as standard)
AIR FLOW DIRECTION ICON
SPEED ICON
FILTER RESET ICON
MODE ICON
ON/OFF BUTTON
MODE BUTTON
FILTER RESET BUTTON

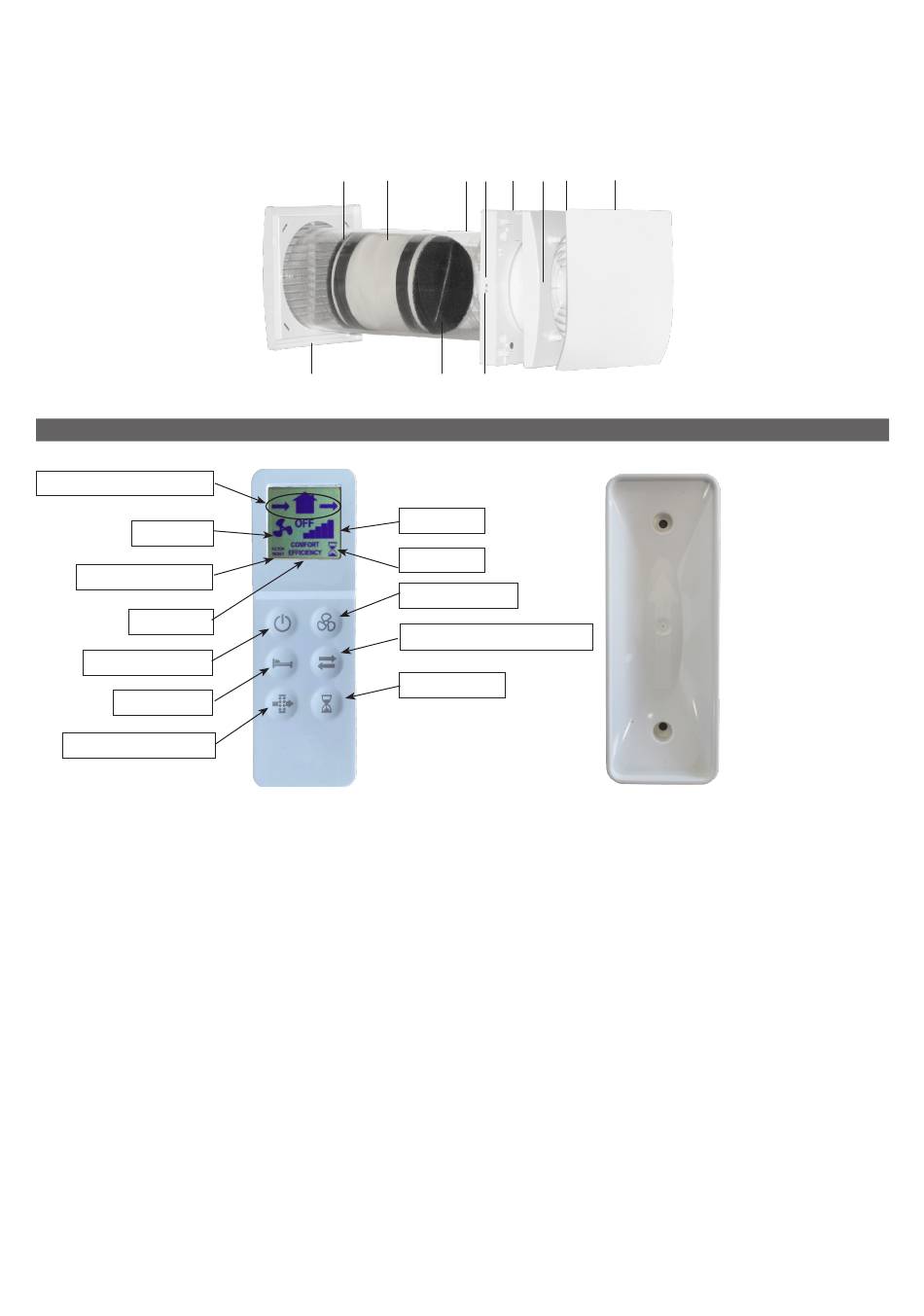

The unit is supplied with an infrared remote controller (K) as standard, as well as its support base (L) which can be wall mounted. A magnet keeps the
controller attached to the base.
The controller is equipped with an LCD display to visualise the setting to be transferred to the unit; anytime a touch button is pressed, the setting shown
on the LCD display is transferred to the unit. The IR receiver is placed on the left side of the ventilation unit (E): it is recommended to point the controller
towards the receiver when any setting needs to be transfered.
The supplied remote control can also individually control other units.
To activate the remote controller it is necessary to insert two AAA type batteries (not supplied).
Through the IR remote control, the functions described in the next table can be managed. When one command is transfered to the unit, a short acoustic
signal is emitted and a green led flashes.
