Bergstrom FLEX POWER II Manuel De L'utilisateur page 8

FLEX POWER II
EN
Az Blue
N Black
R Red
V Green
B White
A Yellow
Na Orange
M Brown
Battery
Pressuriser
Switch
Relay Relay
Temperature sensor
Compressor electronic
module
Pressure switch
8

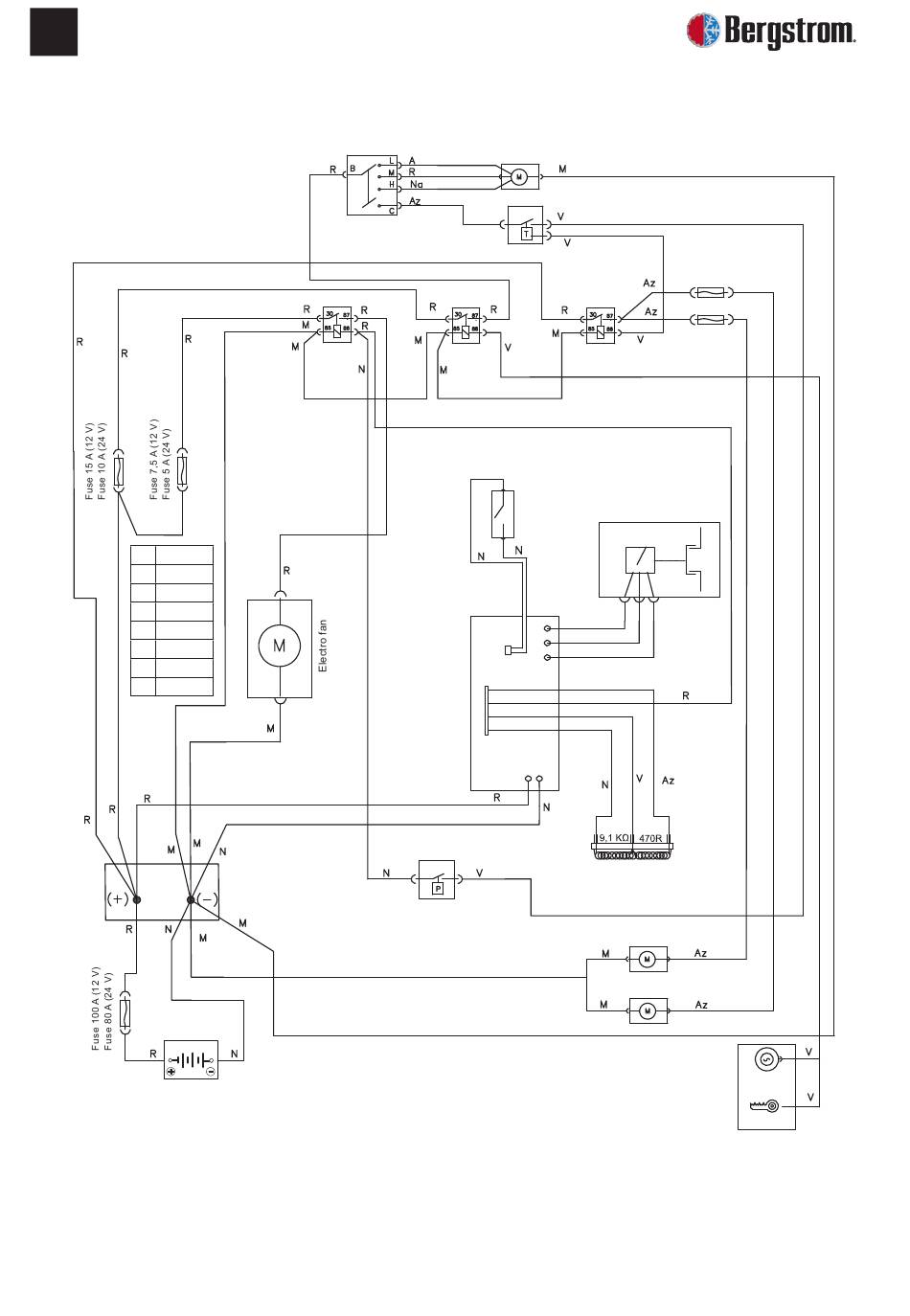

WIRING DIAGRAM - 12 V / 24 V
Thermostat
Relay
Compressor
Resistance
Electro fan 1
Electro fan 2
Fuse 15 A (12 V)
Fuse 10 A (24 V)
Alternator
Contact
key
