Montage du produit

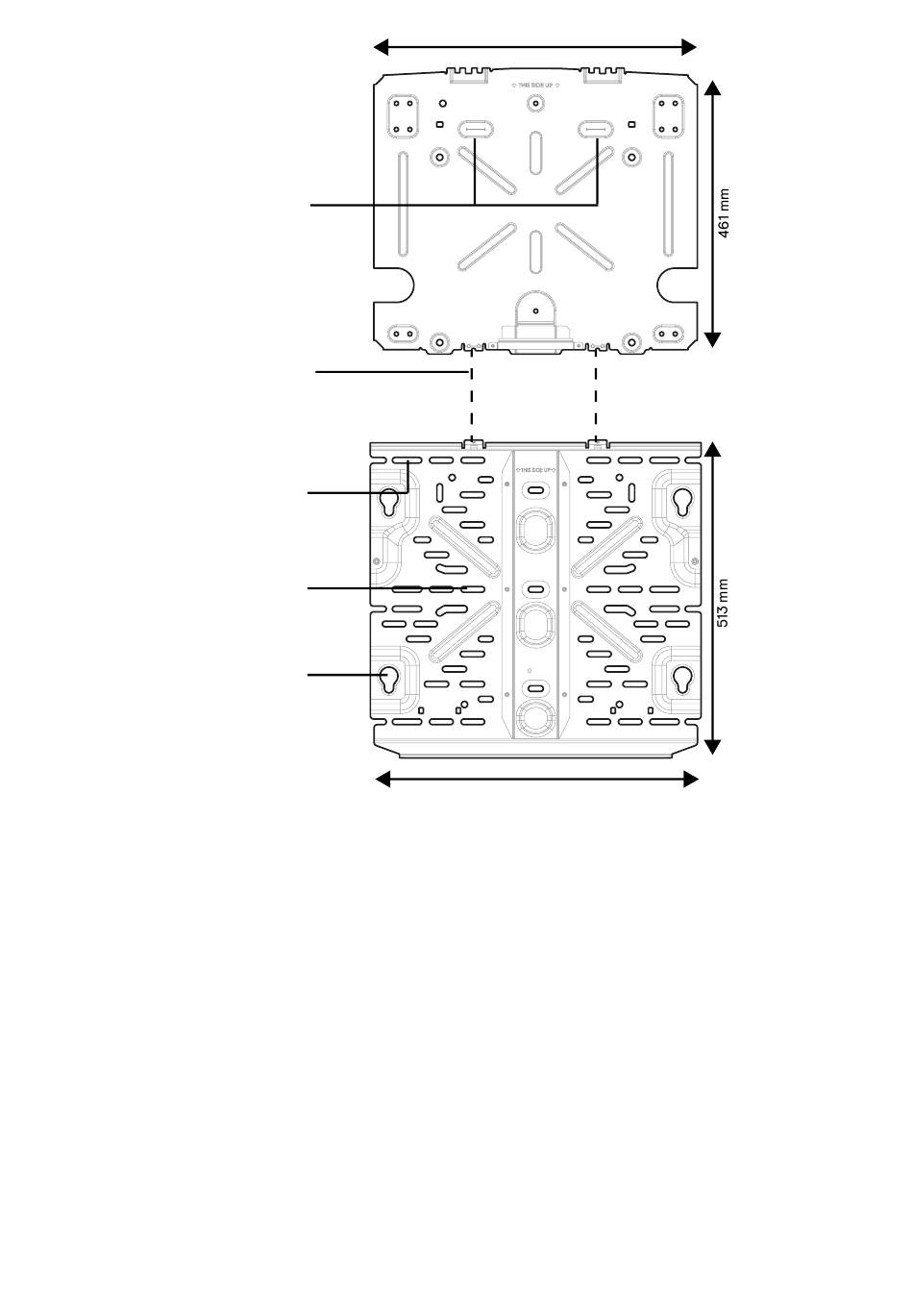

Top protective shield
522 mm
10 wall-mounting hole options,
marked, "P", "Q", and "E"
Two embosses withindention marks
provide flexibility to installers
to fix the top protective shield
Two flanges for connecting the
top protective shield to the
bottom mounting bracket
Bottom mounting bracket
Mounting slots
Inclined slots for pedestal assembly
The keyholes are to mount the base unit
of IQ Battery 5P to the bottom mounting
bracket. Do not use these keyhole slots
to mount the bottom mounting
bracket to the wall
534 mm
