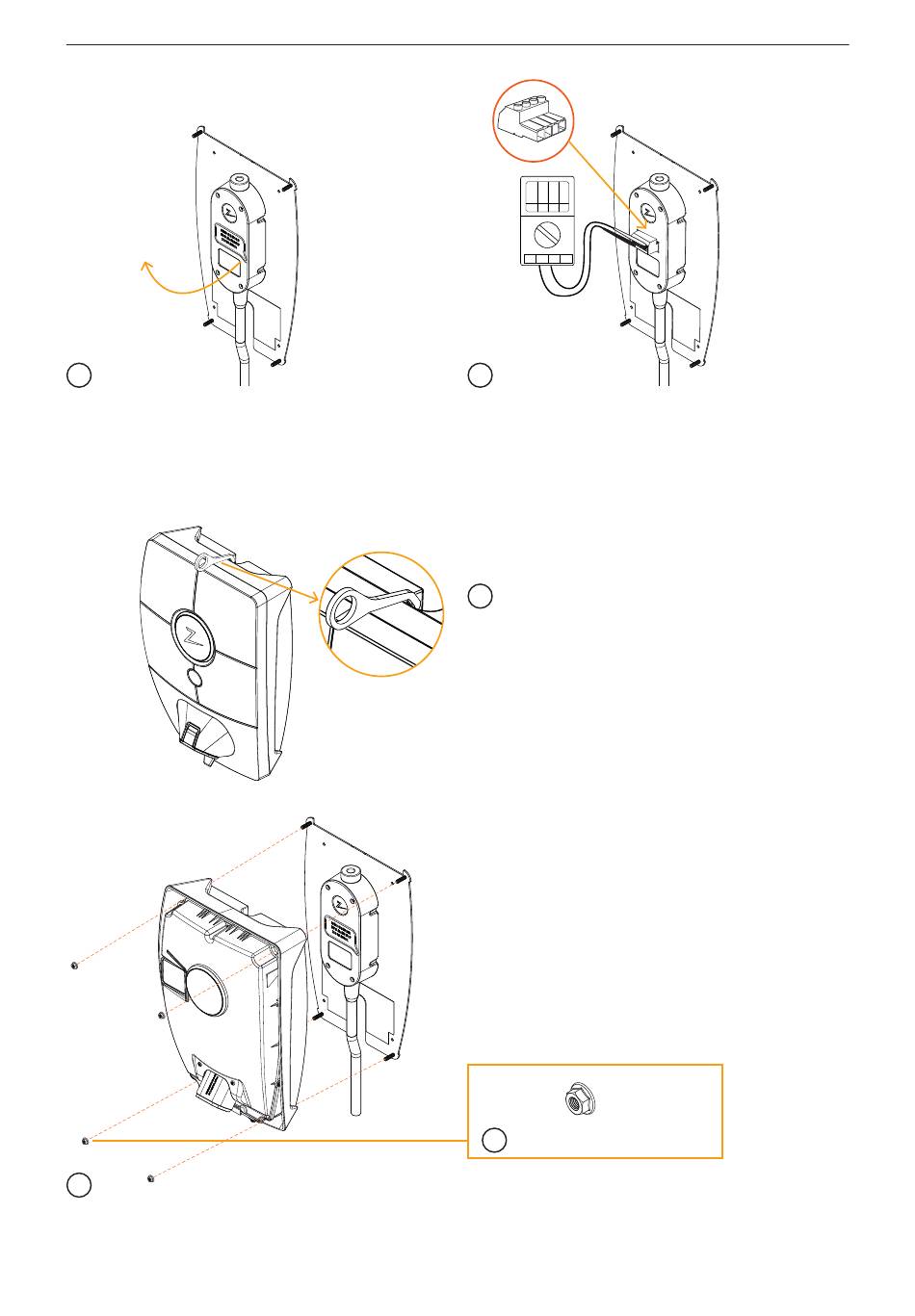

Install the charging station
1
Remove the adhesive sticker
Remove the adhesive sticker which protects
the contact on the junction box, if applicable.
4
Tighten the nuts
Tighten the charging station using the four supplied nuts.
23 0 V
2
Test the installation
Use the female connection to test the installation
before continuing the fitting of it. If you test directly
on the back plate, the connections will be damaged.
3
Remove the front cover
Remove the front cover using the SmartKey*
special tool supplied with the charging station,
and take the front cover off.
* To remove the front cover on a charging station
mounted on a ZAPTEC Column, you must use
a SmartKey Column (supplied with the column)
in order to access the charging station.
x 4
J Locking nuts – ZB100049
