1. Push the lock-off button to the left or right side to
unlock the trigger.
2. Pull the trigger to turn the machine ON.
Variable speed
The machine has a variable speed switch that delivers
higher speed with increased trigger pressure and lower
speed with decreased trigger pressure.
4.4
STOP THE MACHINE
Figure 5.
1. Release the switch trigger.
4.5

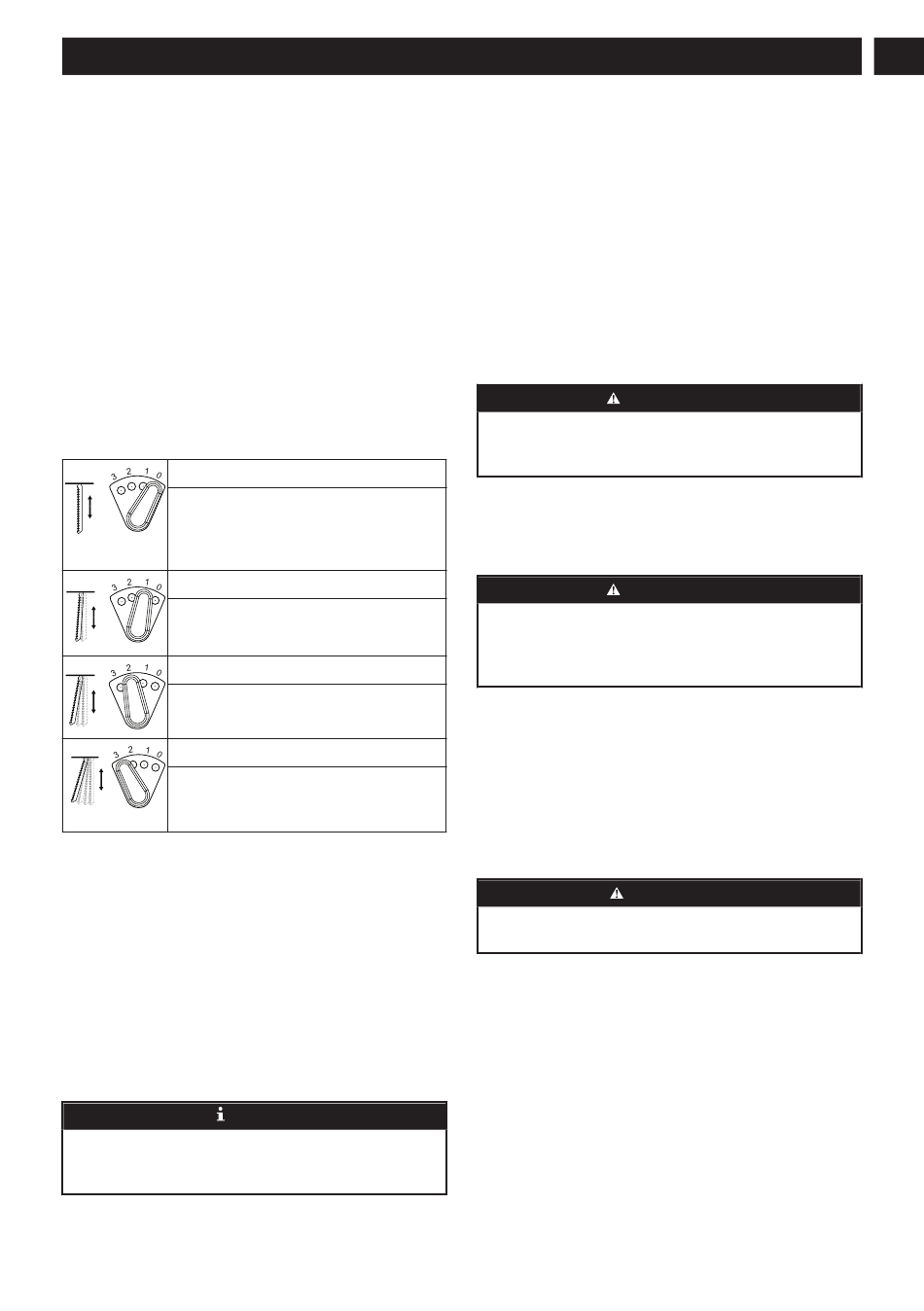

ORBITAL MOTION
Orbital motion provides faster, more effcient cutting.
Choose from four orbital adjustment position for fine to
aggressive cutting.
0
Hard materials such as metals or thin
sheet metals. This setting can be used
with knife blades, grit edge blades,
rasp work, and down cutting blades.
1
Soft materials where cleaner cutting or
delicate scrolling work is performed.
2
Medium density materials such as
harder woods or particle board.
3
Soft materials such as wood, plastics,
etc. and when fast cutting is more im-
portant than a clean cut.
4.6
ADJUST THE FOOTPLATE ANGLE
Figure 6.
The footplate may be tilted to allow angle cuts up to 45°
in either direction.
1. Switch the trigger to the right.
2. Adjust the angle as needed.
3. Switch the trigger to the original position.
4.7
OPERATE THE MACHINE
Figure 7.
NOTE
For best performance, always select a specified blade
for the particular application and type of material you
wish to cut.
English
General cutting
1. Put the front of the saw base on the workpiece
2. Align cutting edge of the blade with the line on your
workpiece
3. Start the saw and move it forward on the work
surface.
Plunge cutting
1. Make the line of cut clearly on the workpiece.
2. Set the cutting blade at 0.
3. Put the front of the saw base on the workpiece
4. Use high speed to start the machine and slowly
lower the blade into the workpiece until the blade
cuts through the wood.
To decrease the risk of injury, keep hands away from
the blade and all moving parts. Always wear safety
gloves or glasses with side shields.
5
MAINTENANCE
This section describes how to maintain the battery,
battery charger, and product.
CAREFULLY READ AND UNDERSTAND
THE SAFETY CHAPTER AND OPERATION
INSTRUCTIONS BEFORE YOU DO ANY
MAINTENANCE WORK.
Before you do maintenance:
•
Stop the product.
•
Remove the battery or batteries.
•
Allow the motor to cool down.
•
Wear appropriate clothing, protective gloves, and
safety glasses.
5.1
CLEAN THE MACHINE
The machine must be dry. Humidity can cause risks of
electrical shocks.
•
Clear the unwanted material out of the air vent with
a vacuum cleaner.
•
Do not spray the air vent or put the air vent in
solvents.
•
Clean the housing and the plastic components with
a moist and soft cloth.
5.2
GENERAL MANINTENANCE
•
Before each use, examine the machine for
damaged, missing, or loose parts such as screws,
nuts, bolts and caps.
5
WARNING
WARNING
CAUTION
EN
