EN
1.2 LIABILITY
Please read these instructions carefully before installing and using the OXIMO 40 AUTO drive. In
addition to following the instructions given in this guide, the instructions detailed in the attached
Safety instructions document must also be observed.
The OXIMO 40 AUTO io drive must be installed by a motorisation and home automation
professional, according to instructions from Somfy and the regulations applicable in the
country in which it is commissioned.
,W LV SURKLELWHG WR XVH WKH 2;,02 $872 LR GULYH RXWVLGH WKH ¿HOG RI DSSOLFDWLRQ GHVFULEHG DERYH
Such use, and any failure to comply with the instructions given in this guide and in the attached
Safety instructions document, absolves Somfy of any liability and invalidates the warranty.
Installers must inform their customers of the operating and maintenance conditions for the OXIMO
40 AUTO io drive and must provide them with the instructions for use and maintenance, and the
attached Safety instructions document, after installing the OXIMO 40 AUTO io drive. Any After-Sales
Service operation on the OXIMO 40 AUTO io drive must be performed by a motorisation and home
automation professional.
If in doubt when installing the OXIMO 40 AUTO io drive, or to obtain additional information, contact
a Somfy adviser or go to the website www.somfy.com.

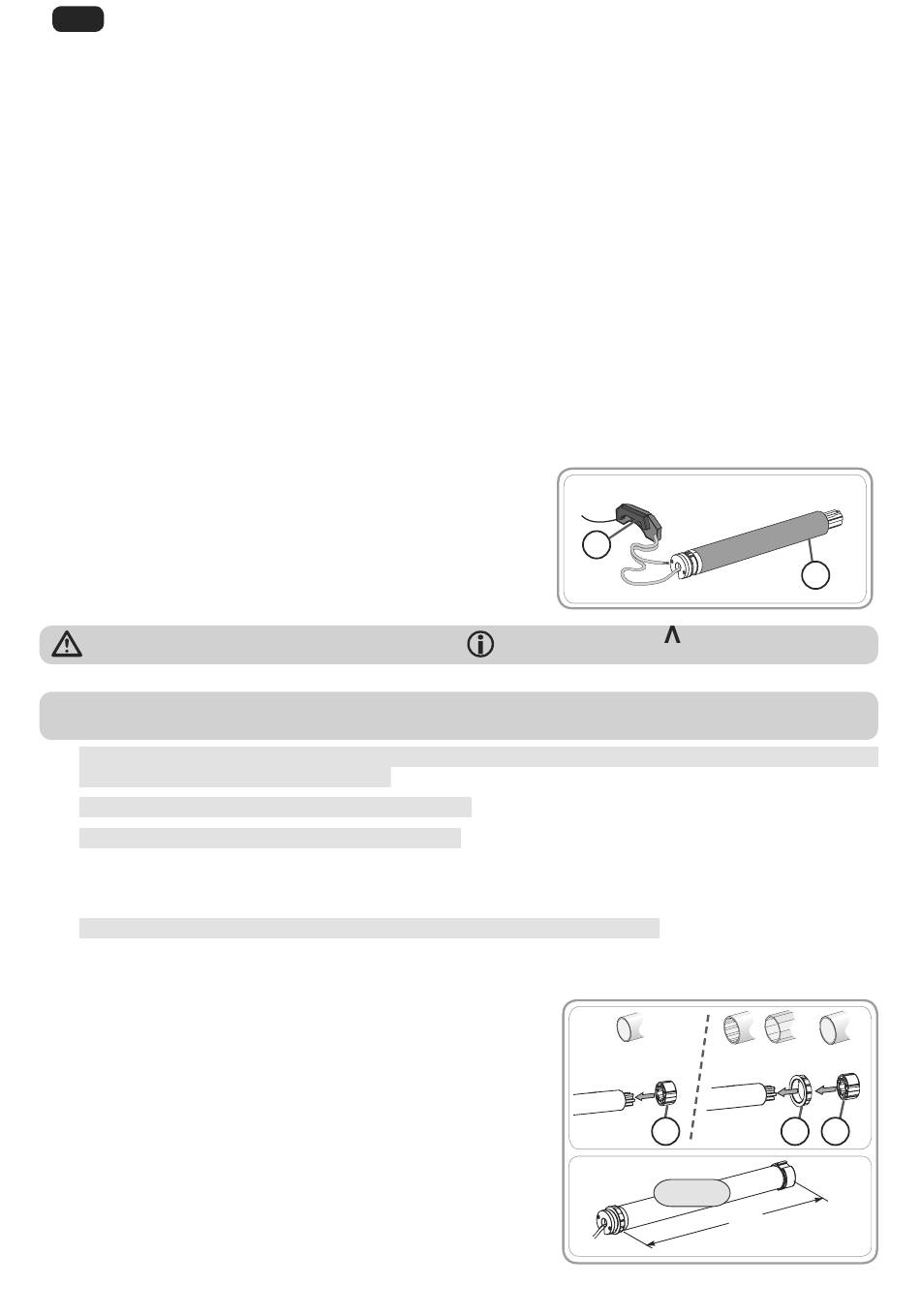

1.3. CONTENTS
The OXIMO 40 AUTO io drive comprises two inseparable
FRPSRQHQWV
the drive part (A)
-
the electronic part (B)
-
Safety w arning!
2. INSTALLATION
1
Instructions which must be followed by the motorisation and home automation professional
installing the OXIMO 40 AUTO drive.
1
Never drop, knock, drill or submerge the drive.
1
Install a separate control point for each drive.
2.1. ASSEMBLY
1
It is essential to follow the order of assembly given in the instructions
2.1.1. Preparing the drive part
The drive part must always be installed before the electronic part.
Check that the inner diameter of the tube is 37 mm or greater.
Fit the accessories required to integrate the drive in the
1)
UROOHU WXEH
‡ (LWKHU ¿W WKH GULYH ZKHHO $ RQ WKH GULYH
‡ 2U ¿W WKH FURZQ % DQG WKH GULYH ZKHHO & RQ WKH GULYH
2)
Measure the length (L1) between the inner edge of the drive
head and the rim of the drive wheel.
22
Images not contractually binding
1
Caution!
B
Information
1)
Ø = 37 mm
a
2)
L1 = ...
Copyright © 2014 Somfy SAS. All rights reserved.
A
V
Up
Down
Ø > 37 mm
b
c
L1
