Contest TAPEDRIVER-12 Manuel D'emploi page 4

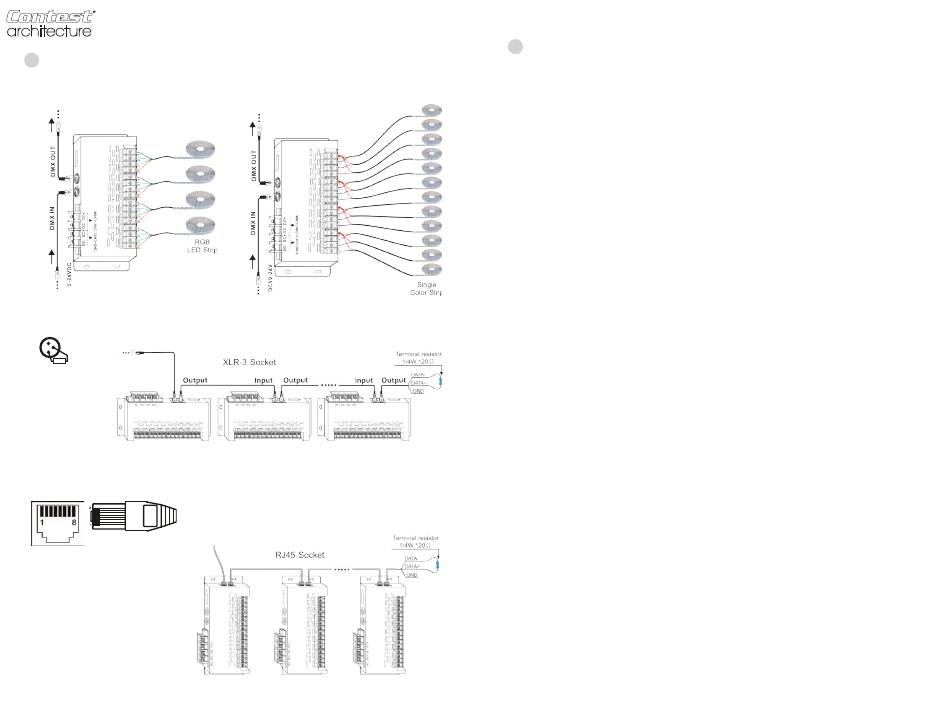

4. Wiring Diagram:
4.1 Connecting RGB LED lights:
4.3 DMX console connection:
1 : Ground
1
3
2 : Signal -
2
3 : Signal +
R
120 Ω 1/4W
1 : Signal +
2 : Signal -
3 : Ground
TAPEDRIVER-12 user guide
4.2 Connecting single color LED lights:
3
5. Attention:
5.1 The product shall be installed and serviced by the qualified person.
5.2 This product is non-waterproof. Please avoid the sun and rain. When installed outdoors please
ensure it is mounted in a water proof enclosure.
5.3 Good heat dissipation will prolong the working life of the controller. Please ensure good ventilation.
5.4 Please check if the output voltage of the LED power supply used comply with the working
voltage of the product.
5.5 Please ensure that adequate sized cable is used from the controller to the LED lights to carry
the current. Please also ensure that the cable is secured tightly in the connector.
5.6 Ensure all wire connections and polarities are correct before applying power to avoid any
damages to the lights.
5.7 If a fault occurs, please return the product to your supplier. Do not attempt to fix this product
by yourself.
Because CONTEST® takes the utmost care in its products to make sure you only get the best
possible quality, our products are subjects to modifications without prior notice. That is why technical
specifications and the products physical configuration might differ from the illustrations.
Make sure you get the latest news and updates about the CONTEST® products on
www.contest-lighting.com
CONTEST® is a trademark of HITMUSIC S.A. - Zone Cahors sud - 46230 FONTANES - FRANCE
