TAPEDRIVER-12
12CH DMX512 CV Decoder
TAPEDRIVER-12
The TAPEDRIVER-12
converts the universal standard DMX512 signal into PWM signal to drive
LEDs. works with DMX512 console, 256 grayscale output per channel, 0-100% dimming range with
various changing effects. Equiped with DMX standard XLR-3, RJ45 interface, controls single color,
two color, RGB LED lights.
1. Product Parameter:
TAPEDRIVER-12
Input Signal:
DMX512
Input Voltage: 5〜24VDC
Max Current Load: 5A×12CH Max 60A
Max Output Power: 300W/720W/1440W(5V/12V/24V)
DMX512 Socket: XLR-3, RJ45

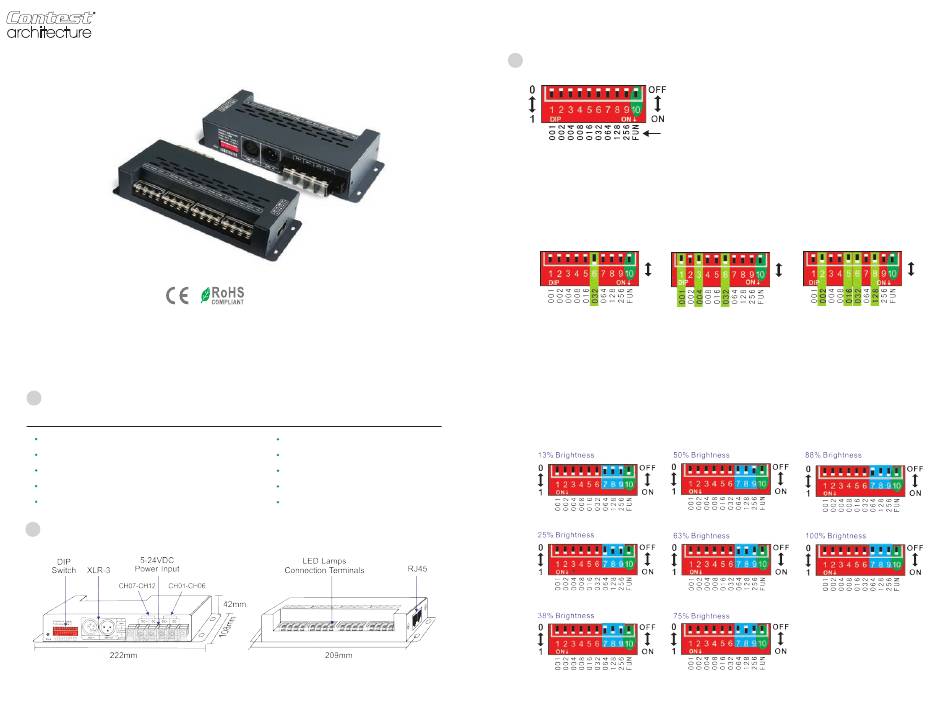

2. Configuration Diagram:
(Side A)
TAPEDRIVER-12 user guide
Dimming Range: 0~100%
Working Temperature: -30°C ~65°C
Dimensions: L222×W108×H42(mm)
Package Size: L230×W113×H46(mm)
Weight(G.W.): 715g
(Side B)
1
3. Dip Switch Operation:
FUN= OFF (
FUN= ON (
Value
3.1 How to set DMX address via dip switch:
FUN= OFF (
10th
dip switch=OFF
)
the
DMX address value=the total value of (1-9), to get the place value when in "on" position,
otherwise will be 0.
E.g.1: Set Initial Address To 32.
E.g.2: Set Initial Address To 37.
OFF
ON
001+004+032=37
*
When dip switch 1- 9 are OFF, the defaulted
3.2 T esting function:
FUN= ON (
10th
dip switch=ON
)
the
Regarding the dip switch, Turn on 10th for testing mode. No.1-6 control 12 channels
accordingly. Namely one switch control 2 continuous channels. No.7-9 is for brightness
setting, 8 levels, which applies for all channels.
TAPEDRIVER-12 user guide
the
10th
dip switch=OFF
)
DMX
Mode
10th
dip switch=ON
)
Self-testing Mode
the
DMX
Mode
E.g.3: Set Initial Address To 178.
OFF
ON
002+016+032+128=178
initial DMX address is 1
.
Self-testing Mode
2
www.contest-lighting.com
OFF
